ABB IDM-96 Multivariable Digital Power Meter

Description

Product Introduction

The ABB IDM-96 is a compact, 96×96 mm panel-mounted multivariable digital indicator engineered for real-time electrical parameter monitoring. It captures up to 56 distinct electrical variables—including voltage, current, active/reactive power, power factor, frequency, and total harmonic distortion (THD) up to the 63rd harmonic—across single-phase, balanced, or unbalanced three-phase distribution networks.

Unlike basic analog panel meters that only show single phase currents, the IDM-96 packs full-spectrum power quality analysis into a standard DIN cutout. It features three clear 3-digit LED displays on the front face and optional RS-485 serial communication using standard Modbus RTU. This allows plant operators to integrate local panel readouts directly into a centralized SCADA or building management system without adding extra signal converters.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A loose neutral wire or undetected current unbalance on a main feeder breaker can cook three-phase motors overnight. When an old analog switchboard meter fails, maintenance personnel lose visibility on phase balance and total harmonic distortion. Without local readouts, finding the root cause of nuisance breaker trips turns into hours of manual multimeter troubleshooting across hot busbars.

• Main Distribution Switchboards – Feeder Voltage & Current Monitoring – Monitors 3-phase line-to-line voltages up to 500VAC and currents via 5A current transformers directly on the enclosure door.
• Motor Control Centers (MCC) – Load Profiling & Phase Balance – Tracks power factor, active power (kW), and harmonic distortion on large motor circuits to prevent overheating.
• SCADA & Energy Management Systems – Remote Substation Telemetry – Transmits multi-variable power metrics over RS-485 Modbus RTU loops back to a central PLC or automation controller.

Field Case Study

A plastics manufacturing plant kept tripping the main power feed to their extrusion line whenever two large drives ramped up together. The line lacked digital power metering, so maintenance suspected a faulty breaker. After snapping an ABB IDM-96 replacement into the panel door and connecting it to the RS-485 loop, real-time logging revealed severe 5th and 7th order voltage harmonics along with a power factor dropping below 0.72 under load. The accurate reading pointed directly to harmonic distortion rather than an overcurrent fault, saving the plant from unnecessarily replacing a $15,000 main circuit breaker.

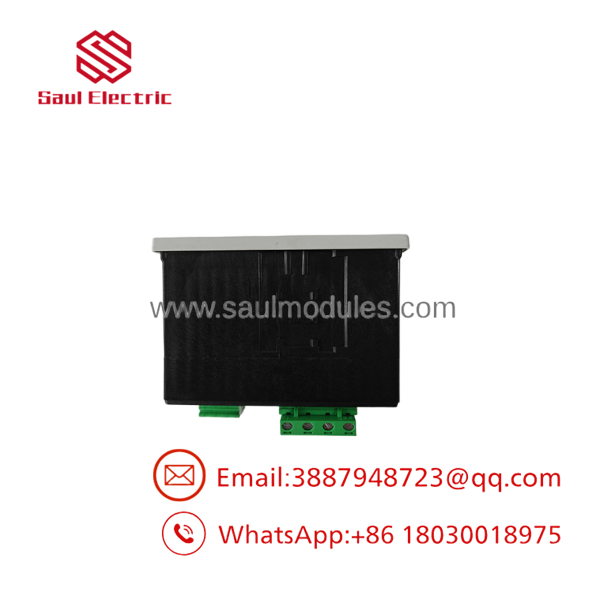

IDM-96

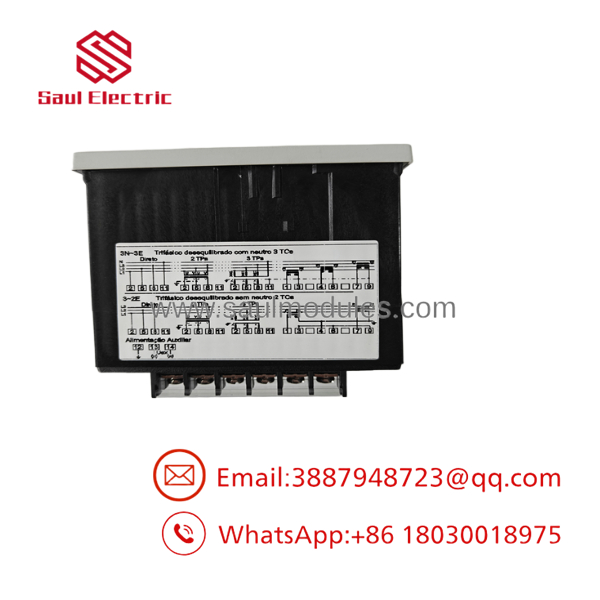

IDM-96

Transparency SOP: Quality Assurance & Testing

We test every ABB digital meter on actual test benches before it enters inventory. We do not ship untested meters.

1. Inbound Visual & Mechanical Inspection: We check the outer 96×96 mm housing, inspect the front keypad buttons, verify the mounting clamps, and inspect all rear screw terminal threads.
2. Power Supply & Display Test: We energize the auxiliary supply terminals with both 120VAC and 24VDC power sources to confirm stable boot-up and LED segment brightness.
3. Signal Calibration Check: We inject calibrated AC voltage (110V, 480V) and AC current (1A, 5A) signals to verify that reading errors remain well within the 0.5% accuracy limit.
4. RS-485 Communication Handshake: We establish a serial link with a Modbus RTU polling master, reading register blocks for phase voltage, current, and frequency.
5. Anti-Static Sealing & Safe Shipping: Post-QC, the device is wiped down, wrapped in conductive ESD shielding, and packed in heavy-duty foam inserts to withstand transit.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Check your CT ratios and polarities before powering up! Entering the wrong Current Transformer (CT) secondary ratio (1A vs. 5A) in the configuration menu will corrupt all power, energy, and current calculations. Always verify that S1 and S2 CT polarity wires match the rear terminal layout.
• ❗ Never leave Current Transformer secondaries open-circuited under load. If you unhook the current terminals while the main circuit is energized, lethal voltages will build up across the open CT leads. Short-circuit the CT terminals at the shorting block first.
• ⚠️ Termination resistors matter on long RS-485 runs. If the drops off your Modbus network intermittently, check if you installed a 120\,\Omega termination resistor across A and B terminals on the last device in the daisy chain.
• ❗ Verify the voltage configuration mode. Connecting a three-phase, three-wire delta system when the meter is programmed for a three-phase, four-wire wye network will produce invalid neutral-to-phase readings. Configure the network parameter correctly via the front keypad before taking measurements.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I connect the ABB directly to a 480V three-phase line?

A: Yes. The handles direct phase-to-phase AC voltage inputs up to 500 VAC without requiring potential transformers (PTs). For voltages above 500 VAC, external potential transformers must be used.

Q: Does the require a specific CT secondary output?

A: The meter supports standard 1\,A or 5\,A secondary current transformers. You can set the CT primary and secondary ratings using the front keypad or configuration software.

Q: How do I communicate with the over Modbus RTU?

A: If your model includes the optional RS-485 serial module, connect two-wire RS-485 shielding to the designated rear terminals. Baud rate, parity, and slave address parameters are configurable through the front panel keypad.

Q: Is the a direct fit for standard DIN panel cutouts?

A: Yes. It uses a standard 96\times96 mm square front bezel with a 92\times92 mm panel cutout. It secures into the cutout using two side-mounting retention clamps.

Q: What is the warranty coverage on surplus or refurbished units?

A: Every sold includes a 12-month full replacement warranty. If the unit experiences hardware failure under normal operating parameters within 365 days of purchase, we replace it or refund your order immediately.
