Product Introduction & Engineering Value
A failed mounting unit can stop an entire control rack even when every controller module is healthy. Engineers often overlook the chassis because it does not execute logic, but it carries the physical and electrical foundation of the automation system.
The ABB IEMMU21 is a Bailey INFI 90 Module Mounting Unit designed to house system modules and provide the required module bus, I/O expander bus, Controlway signals, and regulated power distribution. It remains widely maintained in installed ABB Symphony and INFI 90 systems where hardware continuity is essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Number | IEMMU21 |
| ABB Type Designation | IEMMU21 |
| Product Type | Module Mounting Unit |
| System Family | Bailey INFI 90 / Symphony |
| Mounting Style | Rear mount |
| Module Capacity | Up to 12 modules |
| Cabinet Compatibility | Standard 19-inch cabinet |
| Supported Functions | Module mounting, power distribution, system bus connection |
| Operating Temperature | 0°C to 70°C typical cabinet environment |
| Storage Temperature | -40°C to 85°C |
| Weight | Approximately 3.63 kg |
Field Application & The “Trench” Experience
A power generation facility operating an ABB Bailey INFI 90 system experienced intermittent controller communication faults after decades of continuous service. Initial troubleshooting focused on the controller modules and communication cards. Replacement modules tested correctly on another rack.
The maintenance team eventually identified degraded rack infrastructure as the problem. The original IEMMU21 mounting unit had developed poor electrical contact at the module interface after years of thermal cycling. Replacing the mounting unit restored stable module communication without changing application software or field wiring.
Typical installation scenarios include:
- Boiler feedwater control rack module expansion
- Turbine auxiliary monitoring systems using INFI 90 controllers
- Process analyzer control cabinets
- Legacy Harmony/Symphony distributed control node upgrades

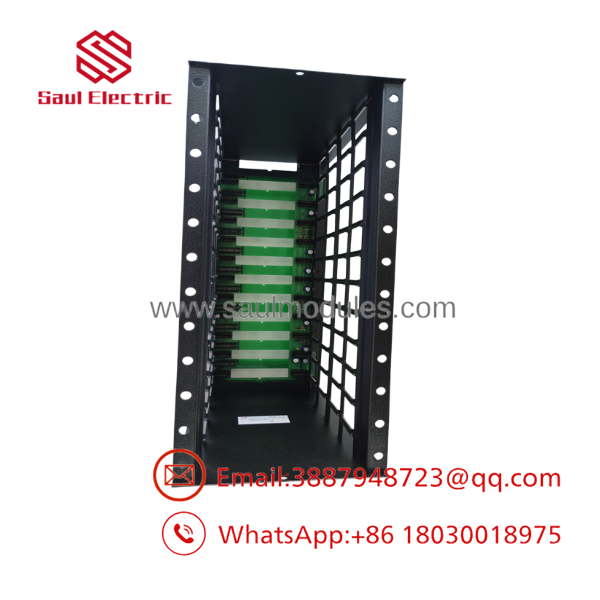

- IEMMU21

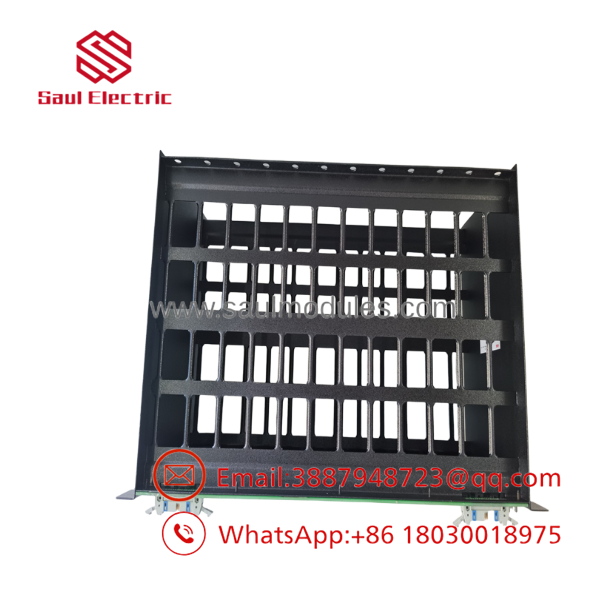

- IEMMU21
Transparency SOP: QA & Testing
Before releasing an New Surplus or Refurbished unit:
Inspection Checklist
- ✓ Confirm ABB part number and product identification label
- ✓ Inspect module slots for mechanical damage
- ✓ Check card guides, mounting hardware, and connectors
- ✓ Examine backplane contacts for oxidation or contamination
- ✓ Verify electrical continuity where test equipment allows
- ✓ Confirm packaging protection against ESD and mechanical impact
For refurbished units, additional attention is given to connector condition because intermittent rack contact problems can create difficult-to-diagnose control faults.
The Veteran’s Tech Trap Guide
⚠️ Do not treat the MMU as just a metal rack.
The provides electrical pathways between modules. A damaged backplane or connector interface can create symptoms that look like controller, communication, or power supply failures.
⚠️ Check module loading configuration.
Although the unit supports multiple modules, power module placement and rack configuration affect system operation. Confirm the existing arrangement before transferring modules.
PRO TIP: When replacing an old MMU, photograph every module position before removal. Legacy INFI 90 systems often contain years of undocumented field modifications.
Dynamic FAQ
Q1. What is the ABB used for?
The is a rear-mounted Module Mounting Unit used in ABB Bailey INFI 90 and related Symphony control system architectures. It provides the physical mounting and internal connections required for system modules.
Q2. How many modules can the hold?
The standard configuration supports up to 12 modules, depending on system arrangement and power module requirements.
Q3. Is the compatible with ABB AC 800M systems?
No direct replacement compatibility should be assumed. The belongs to ABB Bailey INFI 90/Symphony legacy architectures, not the newer AC 800M platform.
Q4. What problems indicate a failing ?
Common symptoms include:
- Intermittent module communication faults
- Unexpected controller resets
- Rack communication errors
- Multiple modules appearing faulty simultaneously
Q5. What should be checked before ordering an replacement?
Verify:
- Existing ABB system family
- Rack mounting arrangement
- Module count requirements
- Rear-mount configuration
- Connector and power requirements
Q6. Is a New Surplus different from a refurbished unit?
Yes. New Surplus units are unused original inventory. Refurbished units have previous service history but are inspected, cleaned, and function-tested before delivery. For legacy ABB systems, both options can be practical depending on availability and application criticality.
