3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Gate Unit Power Supply |
| Input Voltage | 85–264 V AC |
| Output Voltage | 24 V DC |
| Output Current | Up to 100 A (configuration dependent) |
| Power Rating | High capacity for IGCT/gate drive systems |
| Status Indicators | LEDs for power and fault status |
| Weight | Approx. 4.7 kg |
| Operating Temperature | Industrial range per drive specifications |
| Application | Medium voltage drives and excitation systems |
4. Product Introduction
The ABB KUC711AE101 3BHB004661R0101 is a gate unit power supply module used in ABB medium voltage drive systems. It provides stable DC power to the gate drive circuits essential for controlling power semiconductors such as IGCTs.
This power supply ensures reliable firing of power devices in high-power applications. It is a critical component in ACS1000 and similar drives where uninterrupted gate control power directly impacts system availability.

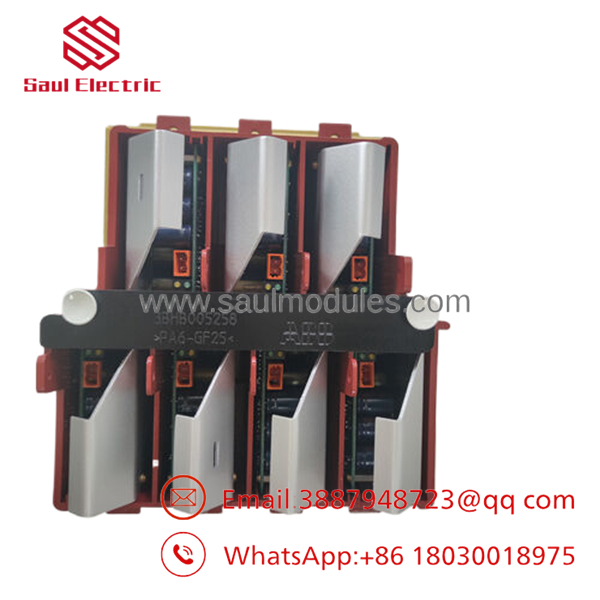

- KUC711AE101 3BHB004661R0101

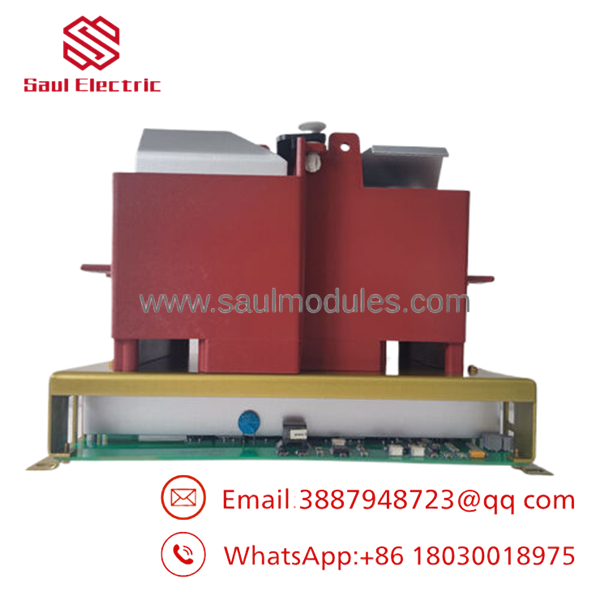

- KUC711AE101 3BHB004661R0101
5. Installation & Configuration Guide
Stage 1: Pre-Installation Preparation (15-20 minutes) ⚠️ Safety First: Lock out all high voltage sources. Discharge capacitors and verify zero energy state. Tools Required: ESD protection, appropriate tools for drive cabinet, multimeter. Data Backup: Record drive parameters and fault history.
Stage 2: Removing the Old Module (15 minutes)
- Open the drive power section safely.
- Disconnect input/output power cables.
- Remove mounting hardware.
- Extract the power supply unit. ⚠️ Note: High voltage hazards present—follow all safety protocols.
Stage 3: Installing the New Module (15-20 minutes)
- Verify exact match to KUC711AE101 3BHB004661R0101.
- Mount securely in the designated location.
- Reconnect all cables with correct torque.
- Inspect for proper clearances. Self-Checklist: [ ] All connections verified, [ ] Grounding intact.
Stage 4: Power-On & Testing (20-30 minutes) Pre-Power Check: Measure input voltage and insulation. Power-On Steps:
- Apply control power and verify output voltages.
- Energize the drive and monitor gate supply status.
- Check for faults via drive HMI.
- Perform operational tests under load if possible. ⚠️ Troubleshooting Note: Output voltage issues often trace to input supply or internal fuses. Check LEDs for specific fault codes.
6. Frequently Asked Questions (FAQ)
Can this gate unit power supply be replaced live? No. Complete isolation of the drive is mandatory due to high voltages involved.
Is KUC711AE101 obsolete? This is a key spare for operational medium voltage drives. New Original stock supports existing installations where new production may have long lead times.
What drives commonly use this module? Primarily ABB ACS1000, ACS6000, and related medium voltage frequency converters requiring robust gate drive power.
Do I need to adjust parameters after replacement? Typically no, but verify gate supply monitoring and alarms. Upload parameters beforehand as best practice.
Why source through surplus providers? Genuine new surplus units offer immediate availability and cost savings compared to factory lead times for these specialized power supplies, with full testing to ensure readiness.
How do I confirm proper function post-installation? Monitor output voltage stability, gate drive operation, and drive diagnostics during commissioning. Detailed test documentation available upon request.
