ABB KX8974c V24 HIEE320606R1 Switchmode Power Supply Module

Description

3. Key Technical Specifications

• Part Number: HIEE320606R1 KX8974c V24
• Type: Switchmode Power Supply / Interface Module
• Input Voltage: 24V DC nominal
• Operating Temperature: -25°C to +70°C (typical)
• Humidity: Up to 95% non-condensing
• Mounting: Internal rack or board installation
• Design: Ruggedized control board for automation
• Communication: Supports standard ABB interfaces
• Applications: Power distribution in DCS/PLC systems
• Weight: Approx. 1-2 kg depending on configuration

4. Product Introduction

The ABB KX8974c V24 (HIEE320606R1) is a switchmode power supply module and control board used in ABB automation systems, including AC800 series installations. It provides stable 24V power and interface functions for processors and I/O in industrial control environments.

Maintenance teams rely on this board for reliable operation in power supply units where consistent voltage and signal integrity matter. It integrates into existing racks and handles the demands of continuous process control without frequent intervention.

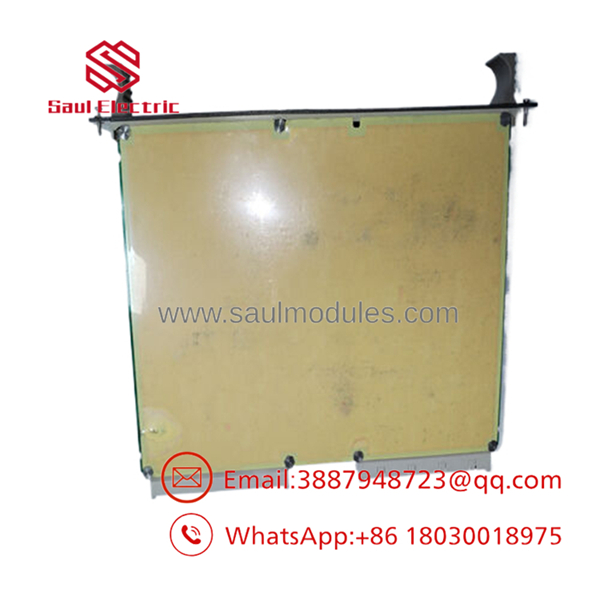

KX8974c V24

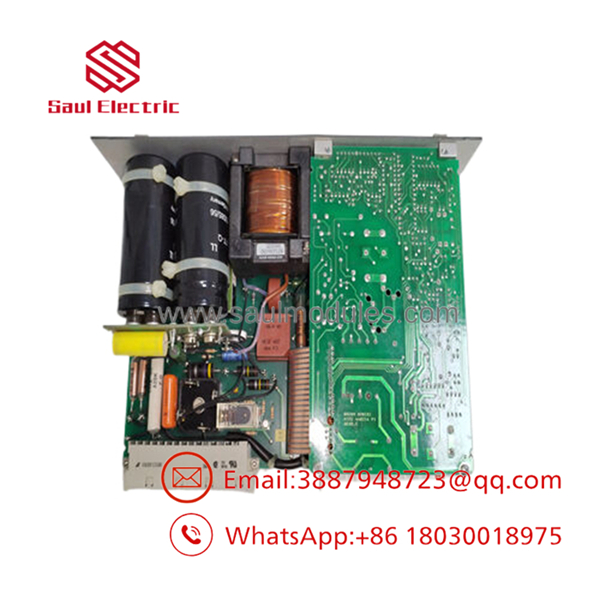

KX8974c V24

5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (10 minutes) ⚠️ Safety First: Notify operations, lock out/tagout power, and allow time for capacitor discharge. Tools Required: ESD strap, screwdriver set, multimeter, labels, camera. Data Backup: Document existing wiring, photograph board orientation and connections.

Stage 2: Removing the Old Module

1. Power down and remove access covers.
2. Label and disconnect power and signal cables.
3. Release fasteners and remove the board straight out.
4. Inspect mounting area for wear or debris. ⚠️ Store the old board safely for comparison.

Stage 3: Installing the New Module (10 minutes)

1. Ground yourself with ESD protection and confirm model match.
2. Configuration Clone: Align any jumpers or settings to match the original.
3. Insert into position and secure fasteners.
4. Reconnect all cables securely. Self-Checklist: [ ] Jumpers match [ ] Connections tight [ ] Board seated properly

Stage 4: Power-On & Testing (10-15 minutes) Pre-Power Check: Verify input voltage and polarity with multimeter.

1. Apply power and observe status indicators.
2. Check output voltages on 24V rails.
3. Verify communication with host controller.
4. Monitor for alarms during initial load. ⚠️ Troubleshooting Note: No output or faults often result from incorrect wiring or mismatched configuration. Check grounding first.

6. Frequently Asked Questions (FAQ)

Can this module be hot-swapped under power? No. Always de-energize the system. Live insertion risks damage to the power supply or connected electronics.

Is this model obsolete, and is it genuinely new? It serves as a key spare for many installed ABB systems. Offered units are new original or surplus with verification testing. Photos and test data provided on request.

What is the direct replacement if this is out of stock? Check ABB documentation for equivalent power supply boards in your specific AC800 or related system. Exact match preferred for pin and voltage compatibility.

Will swapping affect my system programming? No. This is a power and interface component—the application logic stays in the main processor. Back up configurations as standard practice.

Why is the price lower than OEM list? These come from surplus inventory channels. They pass full functional checks and include our warranty, offering quick delivery compared to new manufactured lead times.
