3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Module Type | Operator Panel / Control Module |
| Power Supply | 24 V DC |
| Display/Interface | Integrated operator panel |
| Function | Arc flash detection support, control interface |
| Communication | Compatible with ABB automation networks |
| Operating Temperature | 0 to +70 °C |
| Mounting | Panel or cabinet mount |
| Weight | Approx. 2.2 kg |
4. Product Introduction

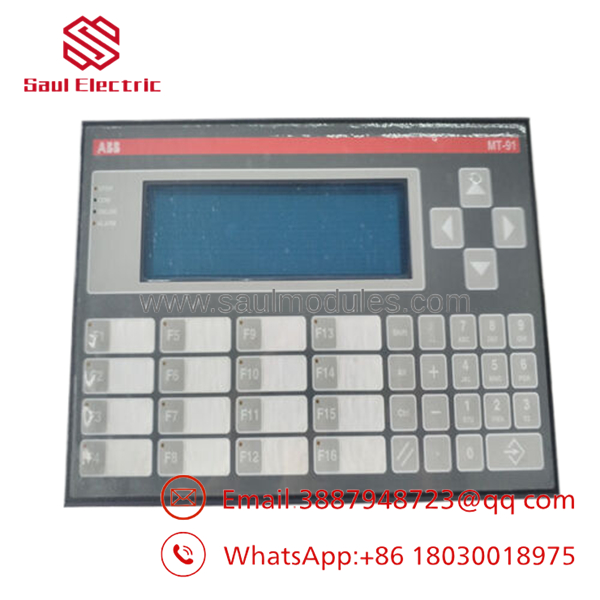

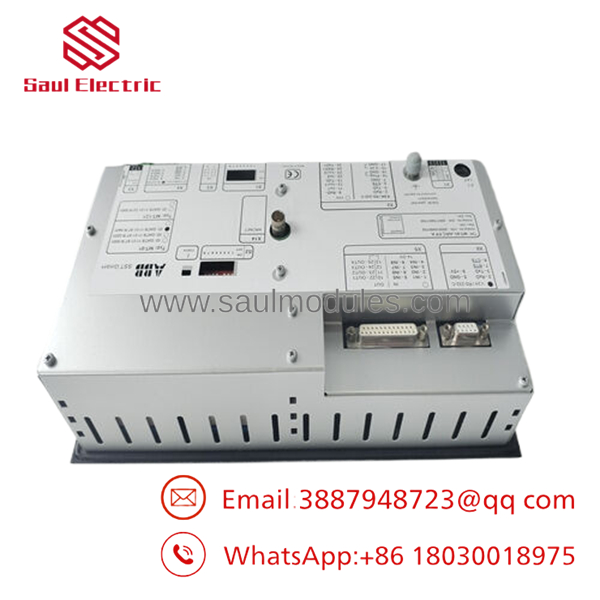

The ABB MT-91-ARCFPA is an operator panel from the MT-91 series used in industrial automation systems. It serves as a local interface for control, monitoring, and potentially arc flash protection functions in electrical distribution and machinery applications.
This panel provides operators with direct access to system status and controls in legacy ABB setups, combining HMI functionality with safety features for critical environments.
- MT-91-ARCFPA
- MT-91-ARCFPA
5. Installation & Configuration Guide
Stage 1: Pre-Installation Preparation (10-15 minutes) ⚠️ Safety First: Lock out power to the control panel. Tools Required: ESD strap, screwdrivers, multimeter. Data Backup: Record configuration settings and parameters.
Stage 2: Removing the Old Panel (10 minutes)
- Power down the system.
- Disconnect wiring and communication cables.
- Remove mounting hardware.
- Extract the unit. ⚠️ Note: Label all connections.
Stage 3: Installing the New Panel (10-15 minutes)
- Use ESD protection. Verify model match.
- Mount in the panel cutout or location.
- Reconnect all wiring and cables.
- Secure firmly. Self-Checklist: [ ] Wiring correct, [ ] Panel secure.
Stage 4: Power-On & Testing (15 minutes) Pre-Power Check: Verify supply voltage. Power-On Steps:
- Apply power and observe boot-up.
- Check display functionality and indicators.
- Verify communication with controller.
- Test operator inputs and monitoring. ⚠️ Troubleshooting Note: Display or communication issues often relate to power or cabling. Check connections first.
6. Frequently Asked Questions (FAQ)
Is the MT-91-ARCFPA hot-swappable? No. Power down the associated equipment before replacement.
Is this panel obsolete? It is a legacy operator panel. New surplus units support existing installations where modern equivalents may require system upgrades.
What is the arc flash aspect? It supports arc flash detection and protection features when integrated with compatible sensors and relays for enhanced safety.
Will my existing configuration work directly? Parameters and wiring should transfer with matching replacement. Re-validate HMI screens and functions after installation.
Why source this specific model? Exact match ensures compatibility with legacy MT-91 systems without requiring full panel or software changes.
How do I test arc flash functionality? Follow manufacturer procedures with appropriate test equipment if equipped. Verify alarm and trip responses in a controlled manner.
