Description
Key Technical Specifications
- Manufacturer: ABB
- Model: PCD230
- Part Number: 3BHE022291R0101
- Product Type: High-performance controller module
- Compatible Systems: ABB UNITROL 6000, AC 800PEC
- Power Supply: 24 V DC ±10%
- Power Consumption: Up to 40 W
- Operating Temperature: -25 C to +70 C
- Storage Temperature: -40 C to +85 C
- Interfaces: Ethernet, RS-485, RS-232
- Memory: 256 MB RAM, 512 MB flash
- I/O Expansion: Up to 1,000 I/O points via expansion modules
- Programming: IEC 61131-3 languages
- Condition: New surplus or used depending on source
- Compatibility: Verify exact suffix and system family before installation
Product Introduction

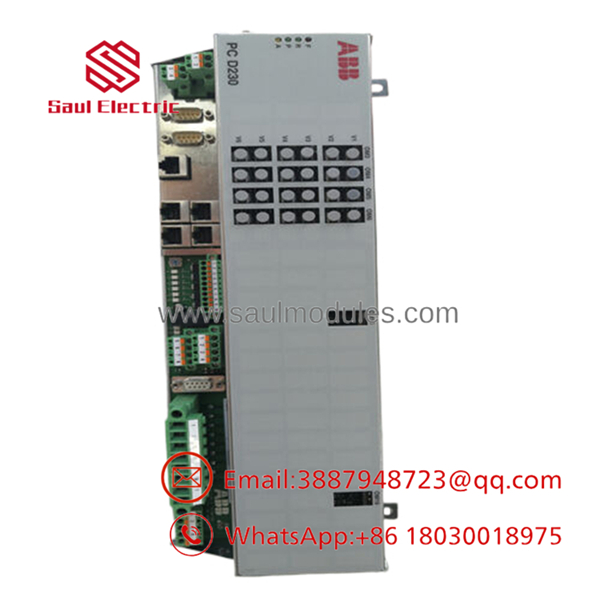

ABB PCD230 3BHE022291R0101 is a controller module used in ABB excitation and industrial control applications. Market listings link it to UNITROL 6000 and AC 800PEC platforms, so it is not a generic PLC card.
This part is usually bought as a system-specific control spare where exact suffix match matters. Confirm the application, the board revision, and the target ABB platform before ordering, because similar ABB controller modules are not always interchangeable.
- PCD230
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Controller does not boot | Failed board or missing 24 V DC supply | ✅ High | Measure 24 V DC at the module terminals and watch startup LEDs | If supply is correct and boot still fails, the module is a strong suspect |
| Communication timeout | Interface fault or protocol mismatch | ✅ High | Check Ethernet, RS-232, and RS-485 status in diagnostics | Verify cabling and protocol settings before replacing hardware |
| Excitation loop not responding | Control logic or processing failure | ✅ High | Read the fault log and check controller status | If the control path is intact, the PCD230 should be tested or replaced |
| Random resets | Power instability or aging electronics | ✅ Medium | Monitor input voltage under load | Fix the power issue first, then retest the module |
| No I/O expansion detected | Expansion bus or configuration issue | ✅ Medium | Confirm the expansion module addressing and wiring | Recheck configuration before assuming the board is bad |
| Trips after warm-up | Thermal drift or internal component failure | ✅ Medium | Run the system and observe fault timing | Inspect cabinet cooling and board seating |
| LEDs active but no control output | CPU or firmware fault | ✅ High | Compare LED pattern with the service documentation | If power rails are good, replacement is likely justified |
If you get stuck, send photos of the label, the rack layout, and the fault log to technical support before ordering a replacement.
Frequently Asked Questions
What is ABB PCD230?
It is an ABB control module commonly associated with UNITROL 6000 and AC 800PEC excitation systems. The board is listed as a high-performance controller module rather than a simple I/O card.
Is PCD230 the same as 3BHE022291R0101?
Yes, that part number is the order code tied to the listing. Always verify the suffix on the installed board before replacement.
Can I use it in any ABB system?
No. This is a system-specific module, and compatibility depends on the exact ABB platform, revision, and application.
Is it hot-swappable?
No. Power down the cabinet, verify discharge, and follow lockout/tagout before removal or installation.
Will it keep my settings after replacement?
Do not assume that. Back up the configuration and document switch or jumper positions before swapping the module.
Why is it sold as surplus or used?
Because it is a specialized ABB control module, and market stock often comes from surplus inventory or removed spares rather than current factory production.
What should I check before buying?
Match the full model, suffix, target system, and physical board label. For a part like this, one wrong suffix can turn into a wasted maintenance window fast.
