Description
3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Type | PillowBlock Load Cell |
| Capacity | 2.0 kN |
| Technology | Pressductor (magnetoelastic) |
| Mounting | Horizontal pillow block |
| Output | High-power, low-impedance signal |
| Protection | Robust industrial design |
| Application | Web tension in rolling / converting |
| Weight | Approx. 20 kg (gross) |
4. Product Introduction
The ABB PFTL101B 2.0KN 3BSE004185R1 is a Pressductor PillowBlock load cell for measuring web tension. It is designed for horizontal force measurement in applications with low tension and heavy rolls.
This load cell uses ABB’s magnetoelastic Pressductor technology to deliver reliable, interference-resistant signals for precise tension control in paper, steel, and converting industries.

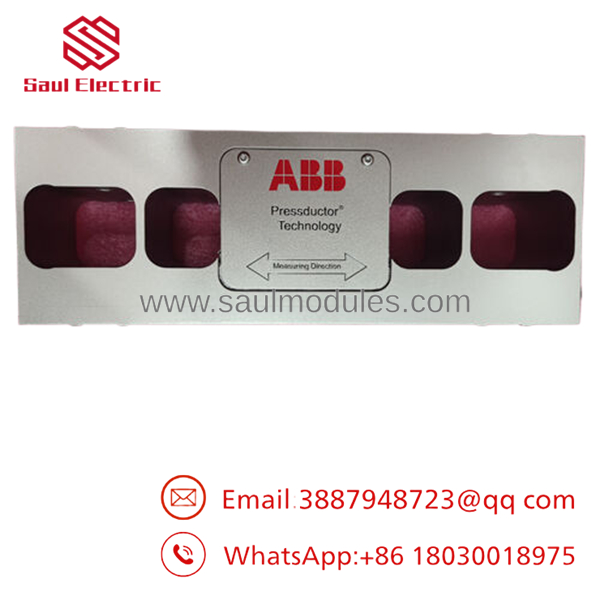

- PFTL101B 2.0KN 3BSE004185R1
5. Installation & Configuration Guide
Stage 1: Pre-Installation Preparation (15 minutes) ⚠️ Safety First: Lock out machinery. Tools Required: Alignment tools, torque wrench, multimeter. Data Backup: Note current tension calibration.
Stage 2: Removing the Old Cell (10-15 minutes)
- Support the roll.
- Disconnect signal cables.
- Remove mounting bolts.
Stage 3: Installing the New Cell (15-20 minutes)
- Align precisely.
- Torque bolts to specification.
- Reconnect cables.
Stage 4: Power-On & Testing (20-30 minutes)
- Restore power.
- Zero and calibrate.
- Verify tension readings.
6. Frequently Asked Questions (FAQ)
Is it hot-swappable? No. Mechanical installation requires downtime.
Is the 2.0 kN version obsolete? Available as spare for existing tension systems.
Mounting orientation? Horizontal pillow block design.
Calibration needed? Yes, zero and span after installation.
Why Pressductor technology? High signal strength and immunity to electrical noise and vibration.
