Description
Key Technical Specifications
- Manufacturer: ABB
- Model: PHCBRC10000000R
- Type Designation: Bridge controller
- Series: Harmony / ABB Bailey
- Revision: Rev. Level F.5 appears in market listings
- Application: Industrial automation and process control
- Country of Origin: United States
- Customs Tariff Number: 8537109160
- Condition: New surplus or new in box depending on source
- Compatibility: Verify exact Harmony system fit before ordering
Product Introduction

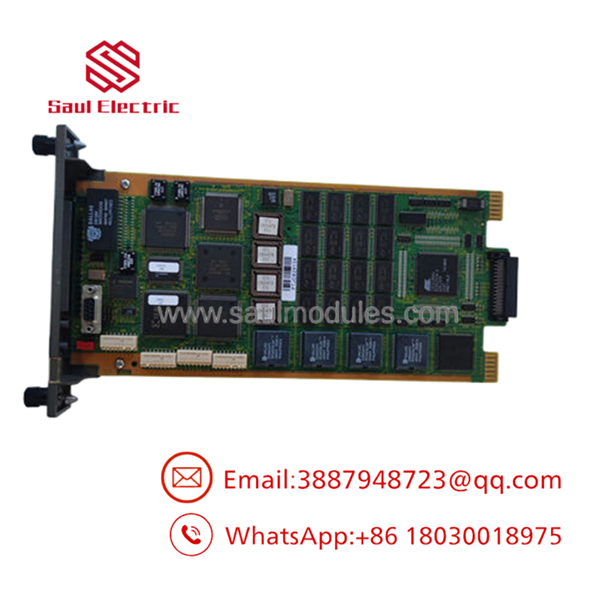

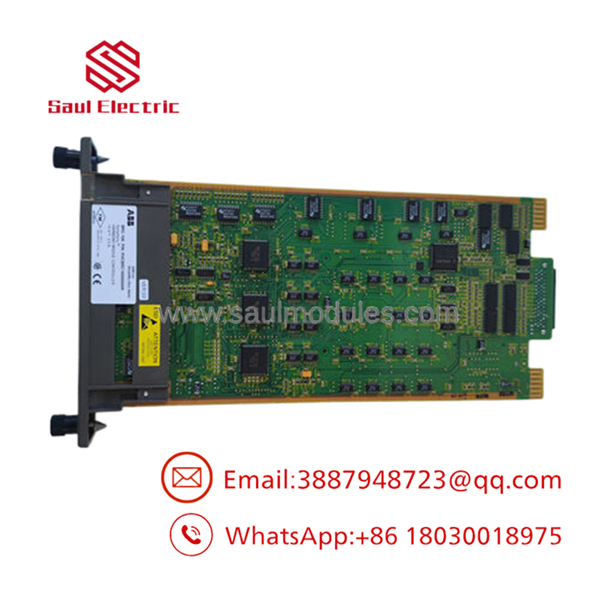

ABB PHCBRC10000000R is a Harmony bridge controller used in ABB Bailey process control environments. Market listings identify it as a bridge controller and sometimes reference Rev. Level F.5, so exact revision matching matters.
This is a legacy ABB control part, so it is usually sourced as surplus or new old stock rather than current production. Confirm the system family, revision, and connector fit before buying, because bridge controllers are not forgiving about mismatched hardware.
- PHCBRC10000000R
- PHCBRC10000000R
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Bridge controller not detected | Failed controller or incorrect system match | ✅ High | Check the ABB system diagnostics and confirm the installed label | If the part number matches and it is still missing, replace the module |
| Communication between subsystems is down | Controller or bus adapter fault | ✅ High | Inspect bus status LEDs and cabling | Verify bus wiring before swapping hardware |
| Repeated startup fault | Revision mismatch or internal failure | ✅ High | Compare the installed revision to the replacement part | Match the revision exactly when possible |
| Intermittent control loss | Loose connector or aging board | ✅ Medium | Reseat the unit and inspect connector condition | Clean contacts and retest before replacement |
| No response after power-up | Power supply issue upstream | ❌ Low | Measure system supply rails first | Do not blame the bridge controller until power is verified |
| Random resets | Thermal or power instability | ✅ Medium | Monitor the fault timing under load | Check cabinet cooling and voltage stability |
| LEDs active but no communication | Protocol or bus mapping issue | ✅ High | Verify network address and bus configuration | Recheck configuration before ordering a new part |
If you get stuck, send photos of the label, the revision mark, and the fault log to technical support before ordering a replacement.
Frequently Asked Questions
What is ABB PHCBRC10000000R?
It is an ABB Harmony bridge controller used in Bailey-style industrial control systems. ABB’s product page identifies it simply as a bridge controller.
Is this an obsolete part?
Yes, treat it as a legacy spare. Market availability is mostly new surplus, new in box, or reseller stock rather than current factory production.
What revision should I look for?
Listings mention Rev. Level F.5, so I would verify the exact revision on the installed unit before ordering.
Can I use a similar ABB controller instead?
Not safely without confirming the Harmony system fit, revision, and bus interface. These legacy controllers can look close and still fail at the system level.
Is it hot-swappable?
No. Shut down the cabinet, verify safe voltage, and follow lockout/tagout before removal or installation.
Why do sellers call it new surplus or new in box?
Because this part commonly appears from unused old stock. That keeps it technically new, but it is still legacy inventory with revision and compatibility risk.
What should I check before ordering?
Match the full part number, the revision, the system family, and the bus/controller fit. For a bridge controller, a label mismatch usually means a bad day in the field.
