ABB PM511V08 (3BSE011180R1) AC450 Controller CPU Board

Description

Key Technical Specifications

Product Introduction

The ABB PM511V08 (3BSE011180R1) is a central processing unit module designed for legacy Advant OCS (Open Control System) architectures, specifically within Advant Controller 410 (AC410) and Advant Controller 450 (AC450) large-scale distributed control nodes. Built on a 32-bit hardware processing core, this module executes deterministic plant logic control, regulatory loops, and high-density industrial calculations using ABB’s AMPL (Advant Master Programming Language) environment.

As an active component in critical refining, power generation, and chemical process control setups, the PM511V08 handles system communication over MasterBus 300 networks and directly manages downstream S800 or S100 I/O subsystems. Plant managers select this hardware revision to maintain long-term asset availability, avoiding the prohibitive expense and extended plant downtime associated with full system architectural migrations.

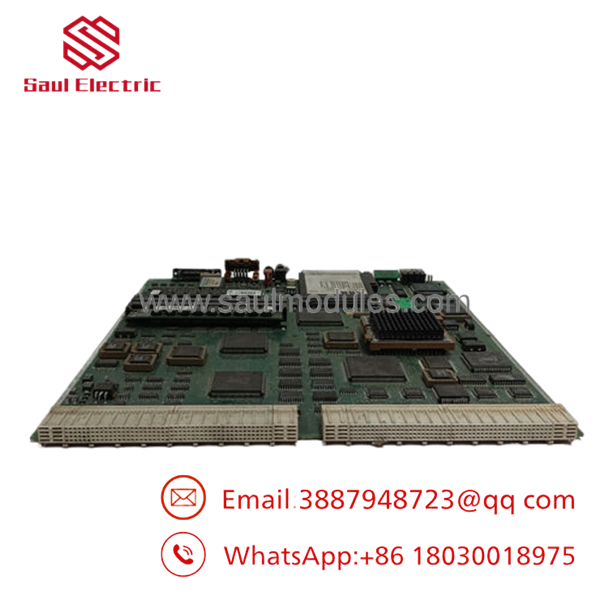

PM511V08 3BSE011180R1

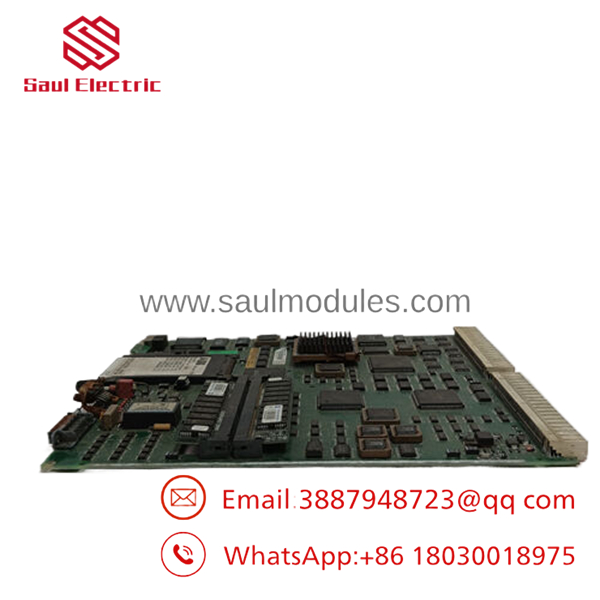

PM511V08 3BSE011180R1

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (Estimated Time: 20 minutes)

• ⚠️ Safety First: Inform control room operators that an engine loop will be down. If the target subrack is un-redundant, note that dropping power or swapping the main processor will cause immediate total loss of control. Secure process variables to a safe, stationary field state before proceeding.
• Tools Required: Grounded anti-static (ESD) wrist strap, small flat-blade terminal screwdriver, multi-meter, and anti-static extraction handling bags.
• Data Backup: Connect your backup terminal or engineering station running AdvaBuild engineering software to the service port of the active card. Extract and verify a full dump of the current source code, tuning parameters, and network node maps.

Stage 2: Removing the Old Module (Estimated Time: 10 minutes)

1. Verify that your ESD wrist strap is grounded.
2. If working in a redundant system, check that the backup CPU has taken over master status completely and its “RUN” indicator is active before isolating the partner module.
3. Unplug any front-facing serial connection lines.
4. Unlock the upper and lower plastic card retaining latches on the front face of the module.
5. Pull the latches outward systematically to back the card out of its backplane sockets. Pull the module straight out along its rack guide rails to prevent contact shorts or bent backplane connector pins.

• ⚠️ Note: Do not touch the rear-facing gold connector pins. Place the old card into an ESD protective bag immediately.

Stage 3: Installing the New Module (Estimated Time: 15 minutes)

1. Maintain grounding protection throughout handling. Carefully extract the new PM511V08 from its protective packaging.
2. Verify that any sub-board memory modules or onboard option jumpers match the physical options populated on the board being replaced.
3. Slide the card smoothly along the empty subrack slot rails until the rear connectors approach the backplane.
4. Push both front latches inward firmly at the same time to wedge the module pins into the backplane matrix. You will feel the card seat with a definitive mechanical click.
5. Hand-tighten the integrated faceplate retaining locks.

Stage 4: Power-On & Testing (Estimated Time: 25 minutes)

1. Power up the subrack. The module initializes a self-test sequence.
2. Observe the front LEDs. The “FAULT” indicator should illuminate briefly and extinguish. The “RUN” LED must stabilize into a solid green state once the processing kernel starts execution.
3. Connect your AdvaBuild console to the front DB9 port. Verify the system version, matching the hardware revision string (V08).
4. Download the backed-up software application image file into RAM memory.
5. Switch the module into system run mode and verify that communication links to downstream I/O racks and HMI nodes recover without errors.

• ⚠️ Troubleshooting Note: If the “FAULT” LED remains solid red after boot, clear the RAM registers via the terminal, check the backplane 5 V power rail tolerance using your multimeter, or check for physical memory daughtercard seating alignment errors on the board layout.

Frequently Asked Questions (FAQ)

Can this module be hot-swapped while the subrack is under power?

Yes, but only if the Advant Controller 450 system is running in a fully redundant, dual-CPU subrack layout where the companion processor is confirmed active and carrying 100% of the process load. If the subrack is a single-processor setup, extracting the card under power will drop the backplane logic loop instantly and can cause serious physical damage to the module interface bus due to electrical arcing.

What does the “V08” suffix denote on this part number?

The “V08” indicates the specific hardware engineering version and component layout revision of the PM511 board assembly. When replacing a processor card in a redundant configuration, it is highly recommended to use the exact same version suffix. Mixing older versions like V04 with a V08 module in the same redundancy pair can trigger memory synchronization anomalies or diagnostic timeouts.

These units are legacy components. Are your parts genuinely new or pulled?

We carry both New Original Surplus stock (units that were purchased as plant warehouse spares but never mounted in a powered rack) and thoroughly tested refurbished units. Every single module we ship—regardless of surplus status—goes through a complete physical component inspection, backplane testing under system load inside an authentic RM500 rack, and memory parity checks before it leaves our facility.

Will the module retain its code if the subrack loses primary input power?

The PM511V08 depends on volatile high-speed RAM to hold its running logic program. It does not contain an onboard battery. Instead, it relies on the centralized backup battery units located within the Advant subrack assembly frame. If the subrack batteries are dead when the primary power supply fails, the program logic will be wiped from RAM and will require a fresh download via AdvaBuild.

Our factory list manual shows an older version. Can this replace a PM510 card?

The PM511 is a higher-capacity module that offers expanded memory and execution speeds compared to the older PM510 series. While it can often serve as a replacement, you must update your master system hardware definition records within your controller configuration software tools to reflect the new memory structure before downloading your application code
