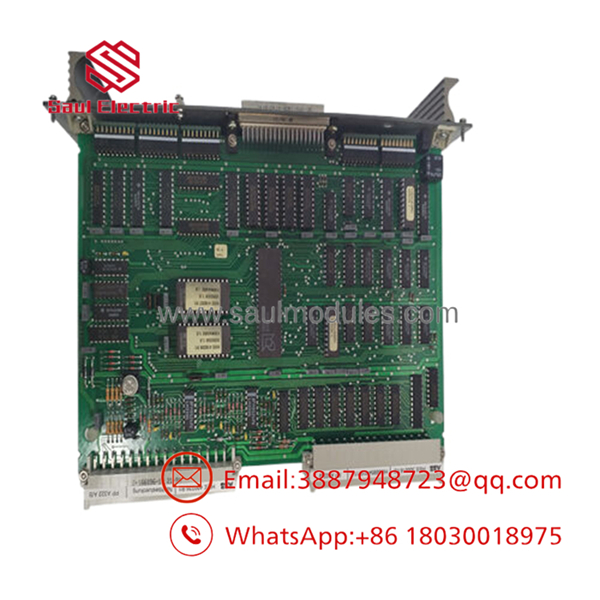

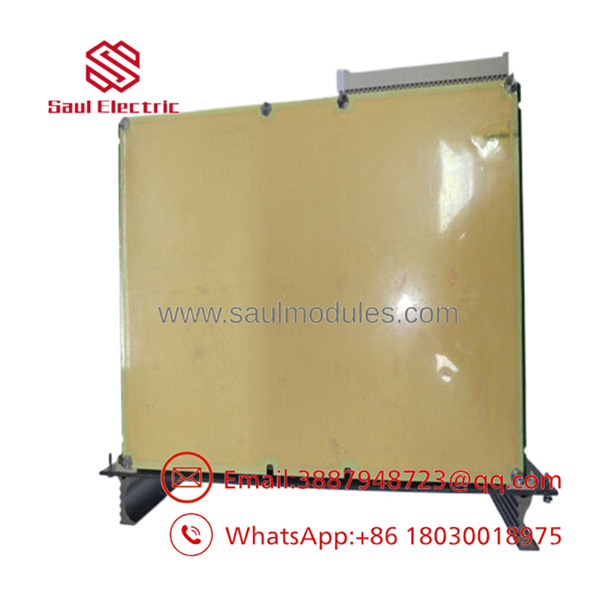

ABB PPA322B UNITROL 1000 Power Supply Module

Original price was: $7,985.00.Current price is: $3,307.00.

  • Model: PPA322B HIEE300016R2
  • Brand: ABB
  • Series: UNITROL 1000 / UNITROL 1020
  • Core Function: Supplies regulated DC power for excitation control
  • Product Type: Power Supply Module / AVR Component
  • Key Specs: 85–264 V AC Input | 24 V DC Output | 5 A Rated Current
  • Condition: New Original / New Surplus
  • Inventory Status: Critical excitation system spare. Recommended buffer stock for generator control systems due to high downtime impact and specialized replacement requirements.
Request a Quote
Brand: Model/SKU: PPA322B

Get a Quote / Inquiry

Request a Quote
Added View List
Email Inquiry
Phone/WhatsApp/Wechat:
+86 18030018975
Email:
[email protected]
WhatsApp QR Code WhatsApp
WeChat QR Code WeChat

Description

Key Technical Specifications

Parameter Value
Manufacturer ABB
Model PPA322B
Part Number HIEE300016R2
Related Board Number HIEE400235R1
Product Type Power Supply Module
Application Series UNITROL 1000 / UNITROL 1020 Excitation Systems
Input Voltage Range 85–264 V AC / 100–350 V DC
Output Voltage 24 V DC
Output Current 5 A
Power Reserve Up to 50%
Efficiency Approx. 89%
Protection Functions Overload, short-circuit, open-circuit protection
Status Indication LED diagnostic indicator
Mounting Industrial control cabinet installation
Redundancy Capability Parallel operation supported
Condition New Original / New Surplus



Product Introduction & Supply Chain Strategy

The ABB PPA322B HIEE300016R2 is a power supply module used in ABB UNITROL excitation systems, including UNITROL 1000 and UNITROL 1020 applications. It provides a regulated 24 V DC supply for excitation control hardware and supports stable operation of generator voltage regulation systems.

Maintaining this module as New Original / New Surplus inventory protects generator availability where excitation system failures can create major production losses. Keeping at least one spare unit as buffer stock reduces lead time variability, avoids emergency sourcing, and improves Total Cost of Ownership (TCO) by preventing extended outage periods.

PPA322B
PPA322B
PPA322B
PPA322B



Installation & Configuration Guide



Stage 1 – Pre-Installation (Prep & Safety)

  1. Apply Lock-Out/Tag-Out procedures before opening the excitation control cabinet.
  2. Confirm replacement part number:
    • ABB PPA322B
    • HIEE300016R2
  3. Wear a grounded ESD wrist strap.
  4. Record:
    • Existing power supply wiring
    • Input voltage configuration
    • Output connections
    • Alarm contacts
    • LED status indicators
  5. Photograph all terminals and module mounting positions.
  6. Verify the generator is safely isolated before maintenance.



Stage 2 – Removal

  1. Disconnect AC/DC input power.
  2. Confirm no residual voltage exists.
  3. Remove output DC wiring carefully.
  4. Disconnect monitoring or alarm terminals.
  5. Release mounting hardware.
  6. Remove the PPA322B module without stressing terminal blocks.



Stage 3 – Installation (Clone & Seat)

  1. Verify the replacement label matches ABB HIEE300016R2.
  2. Mount the module in the original cabinet position.
  3. Connect input power wiring according to the recorded configuration.
  4. Reconnect 24 V DC output terminals.
  5. Restore alarm and monitoring connections.
  6. Confirm grounding and cable routing.



Stage 4 – Power-On & Testing

  1. Verify input voltage before energizing.
  2. Check polarity of DC output connections.
  3. Apply power to the module.
  4. Confirm LED status indication.
  5. Measure 24 V DC output stability.
  6. Verify communication and alarms within the excitation controller.
  7. Perform generator control checks before returning to operation.



Firmware/Software Versions & Upgrade Notes

  • Firmware Requirement: is a power supply module and does not contain user-configurable application firmware.
  • Compatibility Requirement: Verify compatibility with the installed UNITROL controller hardware revision.
  • Configuration Backup: Record excitation controller parameters before replacing associated power hardware.
  • Upgrade Risk: Avoid unrelated controller firmware upgrades during a power supply replacement.
  • Downgrade Risk: Firmware changes to connected UNITROL controllers may affect diagnostics and commissioning procedures.



Frequently Asked Questions (FAQ)

1. Is ABB supplied as a genuine new product?

Yes. This product is supplied as New Original / New Surplus. It is not refurbished, repaired, or removed from a decommissioned excitation system.

2. Why is New Surplus more expensive than refurbished alternatives?

New Surplus provides unused OEM manufacturing condition and predictable service life. Refurbished power modules may contain aged components or unknown operating history, increasing failure uncertainty.

3. What system is ABB used in?

The is associated with ABB UNITROL excitation systems, including UNITROL 1000 and UNITROL 1020 generator voltage regulation applications.

4. Can be replaced while the generator is running?

No. Power supply replacement requires controlled shutdown and electrical isolation. Removing excitation power components during operation can create equipment and personnel risks.

5. Will replacing erase excitation parameters?

No. The power supply module does not store the excitation application configuration. However, verify controller parameters and alarms after replacement.

6. What quality checks are performed before shipment?

New Original / New Surplus units are checked through:

  • OEM part number verification
  • Serial label inspection
  • Terminal condition inspection
  • Visual inspection
  • Electrical verification where applicable
  • ESD-safe packaging

7. What warranty is recommended for this spare?

A 12-month warranty is commonly recommended for excitation system power modules. Maintaining an on-site spare reduces generator outage exposure and supports maintenance planning.
