ABB SD834 Power Supply Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

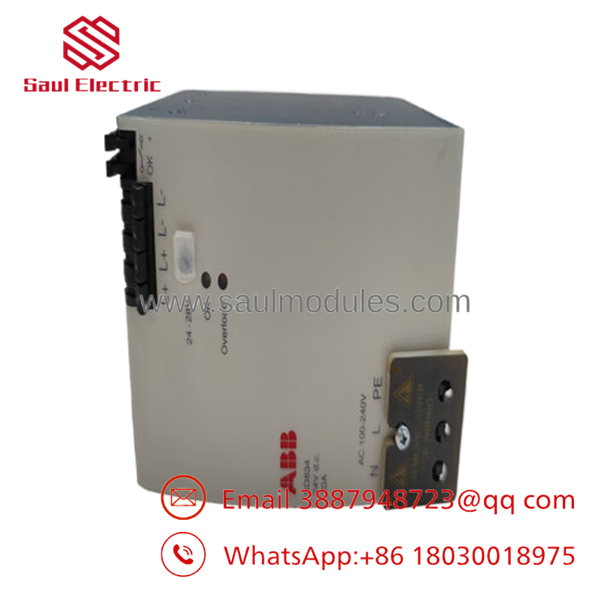

The ABB SD834 (3BSE013088R1) is a high-capacity, industrialized switch-mode power supply designed to provide clean, filtered 24 V DC power directly to System 800xA controllers, communication carriers, and S800 I/O clusters. With a 20 A continuous output rating, this module handles high capacitive and inductive startup loads common in large-scale processing applications. Its robust electrical isolation prevents line disturbances from propagating into high-density fieldbus networks.

From an asset-management perspective, using this unit as a New Surplus asset optimizes your Total Cost of Ownership (TCO) while securing a high-availability buffer stock. Power supplies are the hardest-working elements in any control cabinet, subjected to continuous thermal stress and current ripples. Relying on refurbished or second-hand units introduces massive risk; aged internal electrolytic capacitors dry out over time, leading to severe voltage instability, increased noise, and sudden, unexpected processor resets. Sourcing factory-clean, zero-hour surplus hardware isolates your facility from these hidden reliability pitfalls.

SD834

SD834

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Verify that the primary AC upstream breaker is tagged out and that no voltage is present on the input power lines.
2. Put on an ESD wrist strap tied directly to a verified cabinet earth ground point.
3. Check the internal hardware voltage selection slider (115 V vs. 230 V) to ensure it matches your physical plant infrastructure before mounting.

Stage 2: Removal

1. Unfasten the screw terminals clamping the incoming AC lines, the outgoing 24 V DC distribution lines, and the ground wiring.
2. Loosen the physical retaining screws holding the power supply chassis onto the backing plate or mounting bracket.
3. Lift the heavy module upwards and away from the mounting orientation slots, taking care not to impact adjacent module housings.

Stage 3: Installation (Clone & Seat)

1. Position the new surplus SD834 onto the mounting bracket or DIN rail slots, applying firm downforce until the structural retention clips lock tightly.
2. Strip back your field wires to the exact factory specification to prevent loose or exposed copper, and secure them into the heavy-duty terminal blocks.
3. Ensure the earth ground terminal wire is torqued securely to minimize high-frequency chassis noise.

Stage 4: Power-On & Testing

1. Re-engage the primary AC breaker to apply input line voltage.
2. Use a digital multimeter on the output terminals to verify a steady 24.0 V DC baseline, making minor adjustments using the front potentiometer if line drops require compensation.
3. Confirm that the green “Output OK” status indicator LED is steadily lit before loading the power distribution circuits.

Firmware/Software Versions & Upgrade Notes

The SD834 is a purely analog switch-mode power supply unit and does not contain digital logic chipsets, microcontrollers, or flashing firmware. It operates independently of the active software application running on your central AC 800M or similar process control modules.

However, if you are incorporating the into an actively monitored N+1 redundant power configuration managed by digital monitoring modules (such as an SS822 voter system), you must ensure that your system configuration tables account for the full 20 A output profile. Always match the voltage output settings on parallel-connected units to within 50 mV of each other to guarantee uniform load sharing and prevent one unit from handling the entire cabinet current profile.

Frequently Asked Questions (FAQ)

Is this power supply an original new unit or a repaired component?

This module is a guaranteed New Surplus item. It has never been installed in a live control panel, subjected to factory heat loading, or rebuilt. It has been preserved in temperature-controlled storage and opened exclusively for our internal inbound quality verification testing. We maintain a zero-tolerance policy for refurbished components.

Why does a new surplus cost more than a standard refurbished model?

Refurbished industrial power supplies represent a critical point of failure because electrolytic capacitors degrade silently under heat and load. A refurbished power supply might pass a quick bench test but fail weeks later under full 20 A current strain. Purchasing a new surplus unit provides a fresh 10–15 year lifespan, eliminating the hazard of micro-faults and saving your plant from expensive unplanned downtime.

Can the be wired in parallel for an N+1 redundancy system?

Yes. Multiple modules can be run in parallel configuration to provide high-availability backup power. However, to prevent backfeeding and balance the load correctly, you must route the outputs through an approved voting or diode module, such as the ABB SS822 or SS832 redundancy unit.

Can I adjust the output voltage if my field wires have significant voltage drop?

Yes, the front panel features a manual trimmer potentiometer that allows you to tune the DC output between 24 V and 28 V DC. This allows you to boost the initial voltage level to compensate for resistance drops across long, extended cable runs to remote field junctions.

What type of warranty coverage comes with this hardware component?

We provide a comprehensive 1-year warranty on this New Surplus power supply, starting from the day it leaves our warehouse. This matches the timeline protection of standard OEM hardware, giving your inventory and maintenance teams full peace of mind.
