Description
Key Technical Specifications
- Manufacturer: ABB
- Model: SDCS-CON-4
- Ordering Number: 3ADT313900R1501
- Product Type: Main control board / control module
- Series: DCS800 drive system
- Catalog Description: SDCS-CON-4-COAT-ROHS control board
- Dimensions: 24.6 cm x 24 cm x 1.7 cm
- Weight: 0.38 kg
- Function: Handles control and interface functions for DCS800 drive cabinets
- Condition: New
Product Introduction
ABB SDCS-CON-4 3ADT313900R1501 is the main control board for ABB DCS800 drive systems. It manages core control functions, communication handling, firmware storage, parameter handling, and watchdog-related supervision inside the drive cabinet.
The board is sold in a COAT-ROHS version and is listed as a control board for DCS800 hardware. In the field, the critical point is not the board alone, but matching the exact revision and drive architecture before you pull the old unit.

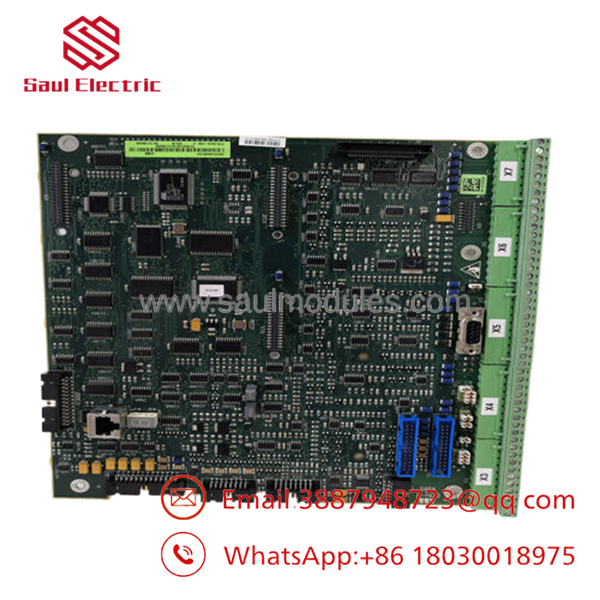

- SDCS-CON-4

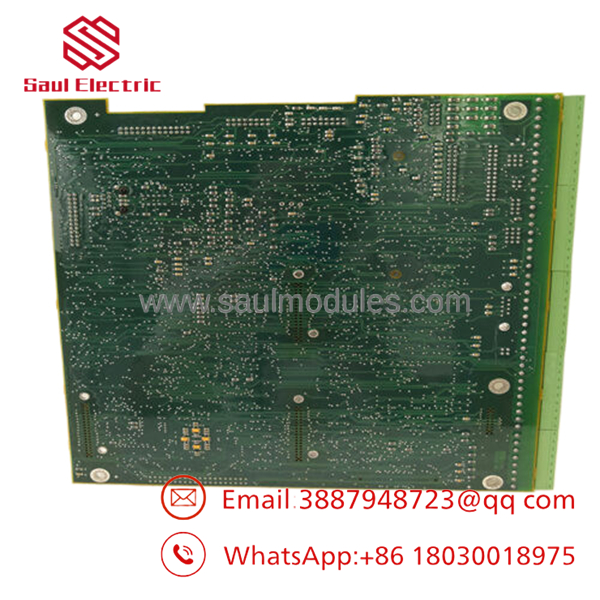

- SDCS-CON-4
Installation & Configuration Guide
Stage 1: Pre-Installation Preparation
- Notify operations of downtime. Verify the drive is in a safe state, apply lockout/tagout, and wait at least 5 minutes for capacitor discharge.
- Gather an ESD strap, PH1 screwdriver, multimeter, wire labels, and a smartphone for photos.
- Back up the drive parameters, record any firmware or application data, and photograph all connectors, jumpers, and cable routing.
- Confirm the exact part number, coating version, and drive cabinet variant before removal.
Stage 2: Removing the Old Module
- Remove the cabinet cover or access panel.
- Label all wiring before disconnecting it. Do not force terminals or ribbon connectors.
- Release the mounting hardware and pull the board straight out to avoid connector damage.
- Inspect the slot, backplane, and connectors for dust, bent pins, overheating, or corrosion.
- Keep the old board until the replacement passes commissioning.
Stage 3: Installing the New Module
- Put on the ESD strap and verify the exact model match.
- Copy every jumper, link, and connector position from the reference photos.
- Seat the board fully and secure the mounting hardware.
- Reconnect all wiring with the correct torque and verify shield grounding.
- Check off the install list: [] Board match, [] Wiring secure, [] Fasteners locked.
Stage 4: Power-On & Testing
- Use a multimeter to check for shorts on the cabinet supply before energizing.
- Power up the control cabinet first, not the motor or load side.
- Verify status indicators, board recognition, and any alarm messages.
- Confirm drive communication, parameter retention, and watchdog status.
- Run a dry test before returning the drive to service.
- If the board does not initialize, check seating, firmware revision, and connector alignment first.
Frequently Asked Questions
Can I hot-swap the SDCS-CON-4?
No, not in normal field practice. This is a drive control board, and live removal can take down the DCS800 cabinet or damage adjacent hardware.
Is this model obsolete?
Yes, it is a legacy ABB DCS800 part. Stock is usually limited, so exact-number sourcing matters more than price alone.
What does the board actually do?
It is the main control board for the drive system. It handles control logic, interface functions, firmware storage, parameter handling, and supervision tasks.
Will I lose drive parameters when I replace it?
Possibly, depending on how the original system stores its data. Back up all parameters before replacement and verify restoration after power-up.
Is this a direct replacement for 3ADT313900R1501?
Yes, that is the ordering number associated with . Still, verify the COAT-ROHS version and cabinet revision before installation.
What condition is it usually sold in?
Commercial listings are commonly New Original or New Surplus. If someone offers refurbished stock, ask for test documentation and return terms.
Why is the secondary-market price lower than ABB list price?
Because surplus inventory usually trades below OEM list pricing. That lower price only works if you confirm revision match, condition, and warranty coverage before buying.
