Description
Key Technical Specifications
- Model Number: SDCS-CON-4-COAT-ROHS
- ABB Product ID: 3ADT313900R1501
- Manufacturer: ABB
- Product Type: DC Drive Control Board / Control Interface Board
- Compatible System: ABB DCS800 DC drive series
- Main Function: Drive control processing, signal interface, motor regulation control
- Protection Feature: Conformal coating (COAT) for PCB environmental protection
- Compliance: RoHS compliant
- Power Supply: 24 V DC control supply (application dependent; verify OEM manual)
- Communication Interfaces: Serial communication interfaces available depending on configuration
- Operating Temperature: Approx. −20 °C to +60 °C (supplier-listed specification; verify OEM data)
- Weight: Approx. 0.4–0.52 kg
- Installation: Cabinet/rack mounted inside ABB drive system
Product Introduction
ABB SDCS-CON-4-COAT-ROHS is a coated control board used in ABB DCS800 DC drive systems. It provides the main control interface between the drive electronics and external automation components, supporting motor speed, torque, and regulation functions.
The COAT version includes conformal coating for improved protection against dust, moisture, and corrosive environments. Before replacement, confirm the existing board part number, firmware version, connector layout, and DCS800 drive frame configuration.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| DC drive does not start | Control board failure or missing control supply | ✅ High | Measure 24 V DC supply and check board status LEDs | Confirm power and diagnostics before replacing board |
| Motor speed regulation unstable | Control parameters, feedback signal, or SDCS-CON fault | ⚠️ Medium | Check encoder feedback, current feedback, and drive fault log | Verify external signals before changing controller board |
| Communication loss with PLC/DCS | Communication wiring or configuration mismatch | ⚠️ Medium | Check communication cable, parameters, and interface status | Verify settings before replacing hardware |
| Drive shows control board fault | Internal processor or memory fault | ✅ High | Read DCS800 fault history and diagnostic codes | Replace only after confirming board-level fault |
| Replacement board powers on but drive will not run | Firmware or parameter mismatch | ✅ High | Compare old/new board firmware and saved parameters | Restore correct configuration before commissioning |
| Intermittent faults in humid/dusty area | PCB contamination or coating damage | ⚠️ Medium | Inspect board surface and connectors | Check cabinet environment and replace damaged boards |
❗ Technical support note: If diagnosis is uncertain, provide photos of the SDCS-CON-4-COAT-ROHS label, DCS800 drive type plate, fault codes, and cabinet wiring before replacement.

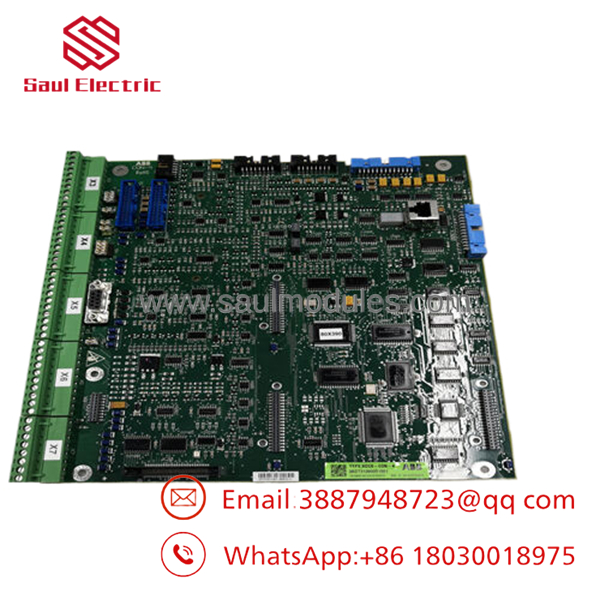

- SDCS-CON-4-COAT-ROHS

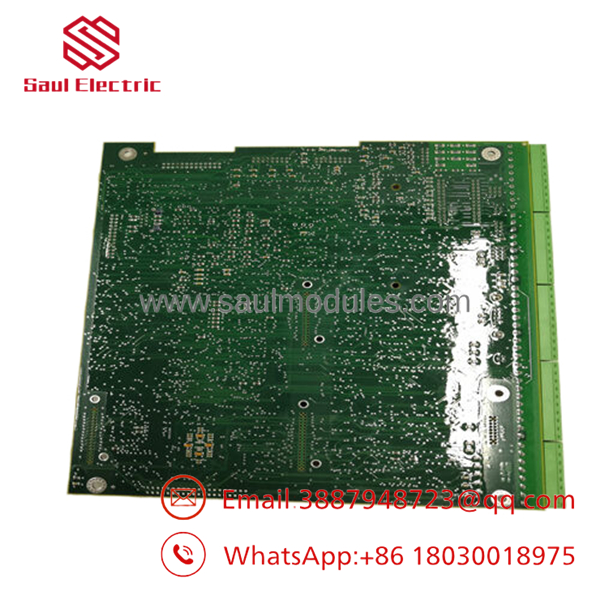

- SDCS-CON-4-COAT-ROHS
Frequently Asked Questions (FAQ)
Q: What is ABB SDCS-CON-4-COAT-ROHS used for?
A: It is a control board for ABB DCS800 DC drive systems. It handles drive control functions and communication interfaces required for DC motor operation.
Q: What does “COAT” mean in ?
A: “COAT” indicates the PCB has conformal coating. This coating helps protect electronic components from moisture, dust, and industrial contaminants.
Q: Is a direct replacement for SDCS-CON-4?
A: It may be compatible in some applications, but verify the exact ABB part number, revision, firmware, and drive configuration before installation.
Q: Does this control board require programming after replacement?
A: The board may require parameter restoration or configuration verification depending on the setup. Always back up drive parameters before removing the original board.
Q: Why is a surplus ABB cheaper than a new factory order?
A: Industrial automation spare boards are often available from unused project stock or maintenance inventory. Confirm testing records, storage condition, and authenticity before purchase.
Q: Can I replace this board while the drive is powered?
A: No. Power must be isolated before removal. The control board connects to sensitive drive electronics, and incorrect handling can damage the board or connected equipment.
Q: What should I check before ordering ?
A: Confirm the full part number ( / 3ADT313900R1501), drive model, firmware requirements, connectors, and application parameters.
