Description
Key Technical Specifications
- Model Number: SDCS-PIN48-SD
- ABB Product ID: 3BSE004939R1012
- Product Type: Pulse Transformer Board / Trigger Interface Board
- Main Application: ABB DCS800-S DC Drive systems
- Primary Function: Transfers firing pulses from control electronics to thyristor gate circuits
- Isolation Function: Electrical isolation between control side and power semiconductor gate circuits
- Input Voltage: Supplier-listed values vary by application; verify OEM drive manual before installation
- Operating Frequency Range: Supplier-listed 24–68 kHz (verify exact hardware revision)
- Net Weight: Approx. 0.328 kg
- Mounting: Internal ABB drive cabinet installation
- Replacement References: Related PIN-family variants may include different part numbers; confirm before substitution
Product Introduction
ABB SDCS-PIN48-SD (3BSE004939R1012) is a pulse transformer board used in ABB DCS800 DC drive systems. It provides isolated firing pulse transmission between the drive control electronics and thyristor power stages, enabling controlled converter operation.
This board is typically replaced during DC drive maintenance when gate pulse faults, converter misfiring, or aging electronics are suspected. Before installation, confirm the original part number, DCS800 converter configuration, connectors, and drive parameters.

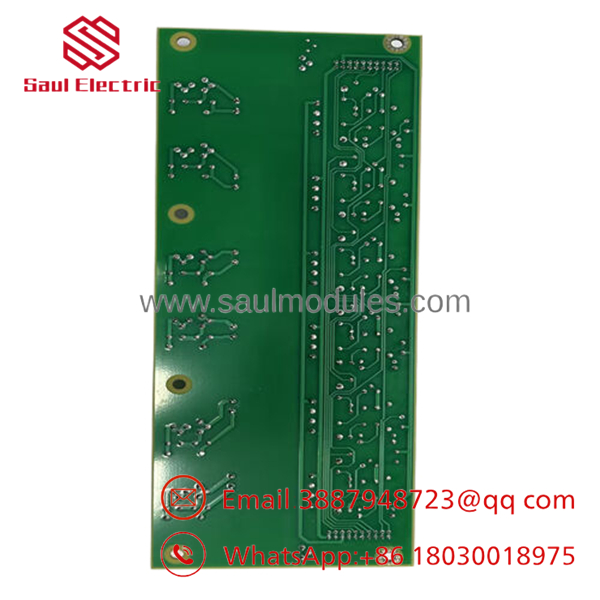

- SDCS-PIN48-SD

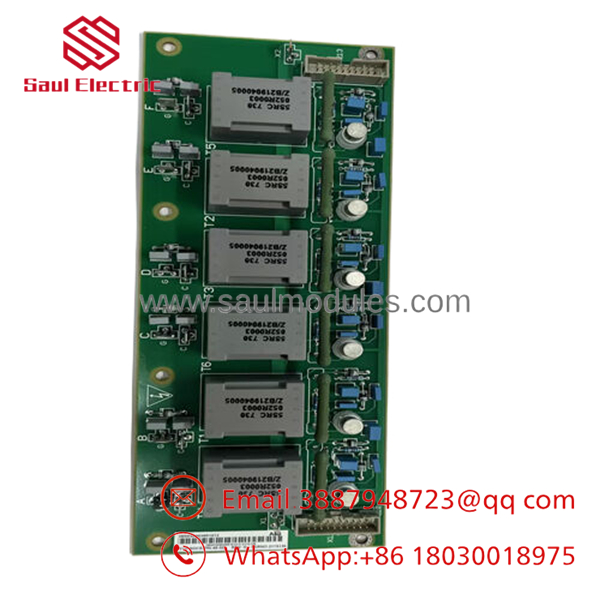

- SDCS-PIN48-SD
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| DC drive will not start | Gate pulse output missing | ✅ High | Check DCS800 fault log and firing pulse diagnostics | Verify SDCS-PIN48-SD condition after confirming upstream control signals |
| Converter trips during operation | Incorrect thyristor triggering | ✅ High | Review firing angle faults and converter diagnostics | Check pulse board and gate circuit connections |
| Motor current is unstable | Pulse timing problem or power stage issue | ⚠️ Medium | Compare current feedback and firing diagnostics | Check power semiconductor and control boards before replacement |
| No visible damage but drive faults remain | Aging transformer board or signal degradation | ⚠️ Medium | Inspect board connectors and measure related control signals | Replace only after confirming board-level fault |
| Replacement board installed but fault continues | Revision mismatch | ✅ High | Compare old/new labels and ABB part numbers | Match exact SDCS-PIN48-SD revision before commissioning |
| Intermittent drive shutdowns | Loose connector or cabinet vibration | ⚠️ Medium | Inspect edge connectors and mounting points | Clean contacts and verify mechanical installation |
❗ Technical support note: If the fault is unclear, provide photos of the label, DCS800 drive nameplate, fault codes, and cabinet wiring before replacing the board.
Frequently Asked Questions (FAQ)
Q: What does ABB do?
A: is a pulse transformer interface board used in ABB DC drive systems. It transfers controlled firing pulses to thyristor power circuits while maintaining electrical isolation.
Q: Is a control CPU board?
A: No. It is a power interface board, not a PLC CPU or drive main controller. Its role is related to gate pulse transmission inside the converter section.
Q: Can I replace directly with another PIN board?
A: Do not assume compatibility. PIN-series boards can look similar but may have different electrical timing and converter matching requirements. Verify the exact ABB part number first.
Q: Does require software programming?
A: Normally, the board itself does not require user programming. However, the complete drive system must be checked after replacement to confirm correct firing operation.
Q: Why is a surplus cheaper than factory supply?
A: Industrial spare boards are often sourced from unused project stock or maintenance inventory. Confirm authenticity, storage condition, and functional testing records before purchase.
Q: What is the most common installation mistake with this board?
A: Installing a visually similar board without checking the converter type and revision. A mismatch can create firing faults and extended troubleshooting time.
Q: What testing should be requested before buying a used ?
A: Request serial/label photos, visual inspection records, connector condition photos, and functional test documentation. A proper spare should have traceable inspection information.
