ABB SNAT 7261 PCP Main Interface Control Board

Description

Product Introduction

The ABB SNAT 7261 PCP (P/N: 57618809) is the primary circuit interface card engineered for ABB’s legacy SAMI and high-power ACS variable frequency drive (VFD) platforms. Installed directly within the drive’s internal chassis, this module forms the critical bridge between the central processing unit and the high-voltage inverter power bridge.

Rather than delegating power distribution across multiple sub-boards, the SNAT 7261 PCP consolidates internal auxiliary power generation, gate pulse triggering, and high-speed DC-link/phase current sensing onto a single ruggedized PCB. This design minimizes internal cable harnesses and ribbon connections, drastically reducing signal attenuation and EMI susceptibility in high-power industrial drive applications.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 01:30 AM during a scheduled kiln run at a cement plant, and the main 600V induced draft fan drive trips on an unresetable Overvoltage / Gate Fault. The maintenance technician resets power, but the drive immediately locks out on boot. The plant is losing tens of thousands of dollars per hour in stalled production. Troubleshooting reveals that a failed power supply rail on the internal SNAT 7261 PCP board dropped the firing signals to the IGBTs, falsely flagging a DC bus overvoltage. Swapping in a pre-tested SNAT 7261 PCP card restores internal power rails and gate control, bringing the 500HP drive back online before the morning shift starts.

• Heavy Processing – Cement & Mining: Drives large-capacity kiln fans, ball mills, and slurry pumps running on 500V–600V industrial networks.
• Water & Wastewater Treatment: Controls high-power raw water intake pumps and booster stations relying on legacy SAMI drive cabinets.
• Pulp & Paper Manufacturing: Manages continuous web tension drives where precise current feedback from the SNAT card prevents sheet breaks.
• Marine Propulsion & Thrusters: Used in onboard variable speed drives for bow thrusters and ballast pumps where ruggedized power boards resist harsh vibration.

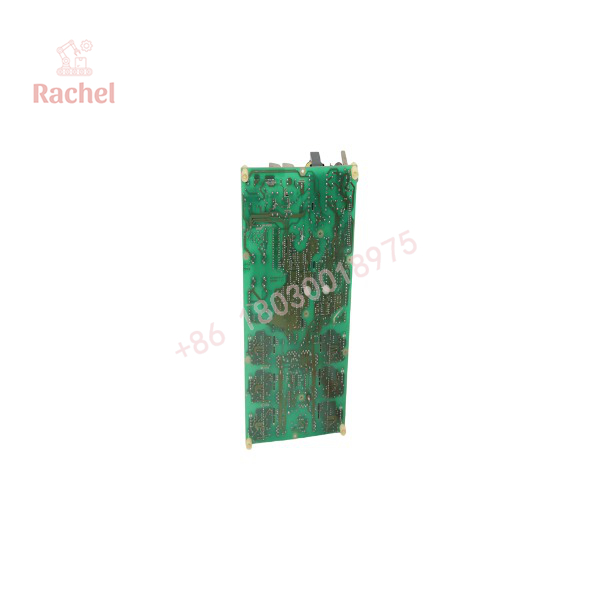

SNAT 7261 PCP

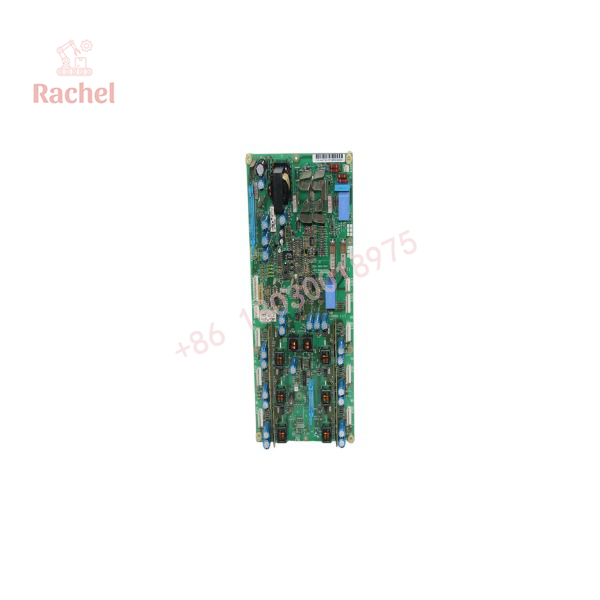

SNAT 7261 PCP

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual ABB drive chassis.

1. Inbound Physical & Anti-Counterfeit Audit: Comprehensive check of solder joint integrity, conformal coating condition, and original ABB silk-screening to reject degraded or burnt boards.
2. Static Component & Megger Testing: High-voltage insulation testing and diode junction checks on gate driver outputs to catch latent semiconductor breakdown.
3. Power-On & Auxiliary Supply Rail Verification: Bench-power verification confirming the onboard SMPS generates stable, low-ripple DC voltages for downstream drive logic.
4. PWM Firing & Current Feedback Loop Simulation: Simulating firing signals and feeding test currents through the onboard measurement channels to verify linear feedback signal accuracy.
5. Final Clean & ESD Protection: Boards are cleaned with electrical solvent, sealed in anti-static ESD shielding bags, and wrapped in heavy-density shock-absorbing foam.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Do NOT throw away the small SNAT SCL daughtercard on your old board!

  The SNAT 7261 PCP relies on a tiny plug-in matching card (SNAT xxxv SCL) stacked directly on top of it. This small card dictates the exact kVA rating and voltage class (e.g., 400V, 500V, 600V) of the drive. If you install the new SNAT 7261 PCP without transferring your original SCL card over, the drive will fail to initialize or execute improper scaling on motor parameters.

• ❗ Verify your DC link voltage settings in parameter 27.11.

  If parameter 27.11 (O/U VOLT CONTROL) is enabled, the onboard logic prevents starting if the measured DC bus exceeds 117% of nominal voltage. If you swap boards and get an instant overvoltage trip, measure your actual DC bus voltage with a multimeter before blaming the new board—a misconfigured supply voltage parameter (D SUPPLY VOLTAGE) will trip the fresh board immediately.

• ⚠️ Check for shorted gate terminals on the IGBT module first.

  If the original SNAT 7261 card blew out its gate driver traces, there is a high probability the main power transistor/IGBT suffered a collector-to-gate punch-through. Testing the new SNAT 7261 board against a shorted IGBT will instantly blow the gate resistors on your fresh card the millisecond you hit Start.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the difference between SNAT 7261 PCP and SNAT 7261 INT?

A: Both belong to the same core interface board family for ABB SAMI/ACS drives. “PCP” and “INT” designations refer to specific manufacturing revision layouts and internal gate drive routing for various drive frame sizes (particularly 500V–600V units). They perform identical main functions—power supply, gate triggering, and signal sensing—but board silkscreeing and hardware revs must match your cabinet manual.

Q: Does the SNAT 7261 PCP include the power rating plug (SCL card)?

A: No. Standard replacement boards are supplied as main interface cards. You must transfer the small SNAT xxxv SCL matching card from your existing failed board onto the replacement unit.

Q: Is this board hot-swappable while the drive is energized?

A: Absolutely not. Attempting to unseat or plug in the SNAT 7261 PCP with the main AC supply or 24V auxiliary power connected will destroy the gate driver circuits and potentially trigger a catastrophic DC bus discharge. Always de-energize and wait 5 minutes for the DC capacitors to drain completely.

Q: Is this unit new or refurbished?

A: We offer this module in both New Surplus / Factory Sealed and Fully Refurbished / Bench-Tested conditions. Every refurbished unit undergoes complete trace inspection, electrolytic capacitor replacement where necessary, and full functional bench testing.

Q: What warranty is provided with this ABB module?

A: We back every SNAT 7261 PCP card with a 12-month full replacement warranty. If the card experiences any operational failure during normal service within one year of purchase, we replace it immediately.
