ABB SPDSO14 Digital Slave Module

Original price was: $8,897.00.Current price is: $8,560.00.

  • Model: SPDSO14
  • Brand: ABB (Bailey Controls)
  • Series: Infi 90 / Symphony Plus / Harmony Series
  • Core Function: Outputs localized digital control commands to field actuators and interposing relays.
  • Product Type: Digital Input/Output Slave Module
  • Key Specs: 16 Isolated Digital Output Channels | 24 V DC Current Sinking/Sourcing | Bailey Backplane Native
  • Condition: New Original / New Surplus (Never refurbished)
  • Inventory Status: Obsolete/EOL legacy component requiring proactive buffer stocking to maintain system integration consistency.
Brand: Model/SKU: SPDSO14

Get a Quote / Inquiry

Phone/WhatsApp/Wechat:
WhatsApp QR Code WhatsApp
WeChat QR Code WeChat

Description

Key Technical Specifications

Parameter Value
Manufacturer ABB / Bailey Controls
Model Designation SPDSO14
Product Series Infi 90, Symphony Harmony Distributed Control System (DCS)
Module Classification Digital Output Slave Board
Output Channels 16 independent digital outputs
Output Voltage Range 24 V DC nominal operational thresholds
Switching Capacity Designed to drive external solid-state or mechanical interposing relays
Isolation Barrier Galvanic channel-to-backplane isolation up to 500 V DC
Power Consumption Typical 5.0 W drawn directly from the system module backplane
Communication Bus Dedicated internal slave bus link to master processor card
Operating Temperature 0 to +70 °C
Relative Humidity 5% to 95% (non-condensing)



Product Introduction & Supply Chain Strategy

The ABB SPDSO14 is a high-density digital output slave board engineered for legacy Bailey Infi 90 and Symphony Harmony distributed control platforms. This module provides 16 isolated digital output channels designed to transmit clean, fast switching commands from a primary controller card (such as the IMMFP12 or BRC series) to external field equipment like solenoids, motor starters, and interposing relays. By handling the isolation and signal distribution locally at the backplane interface, it protects upstream processing logic from inductive kickbacks and field line transients.

For inventory managers maintaining older DCS installations, treating this hard-to-find part as a critical New Surplus requirement optimizes your Total Cost of Ownership (TCO). Because the SPDSO14 handles continuous, repetitive switching cycles, its onboard driver transistors and optocouplers are highly vulnerable to degradation over decades of constant service. Refurbished alternatives introduce significant operational risk: a degraded output transistor can fail shorted, leaving a critical field valve locked in the open position or preventing an emergency shutdown trigger. Sourcing factory-clean, zero-hour surplus hardware ensures precise logic execution and shields your processes from sudden, costly disruptions.

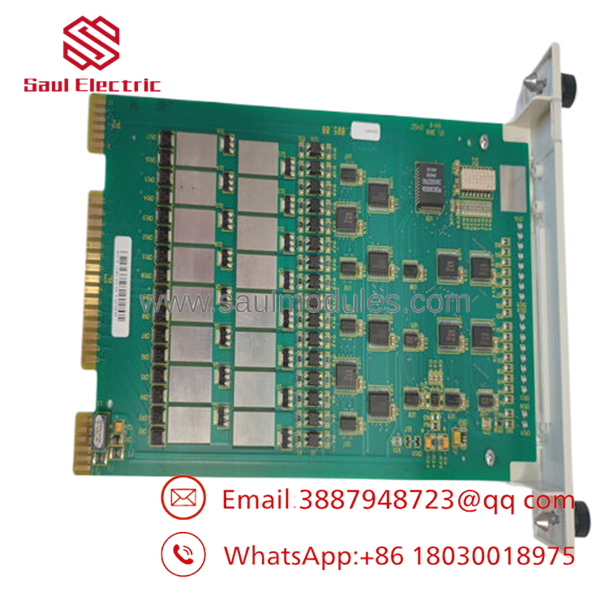

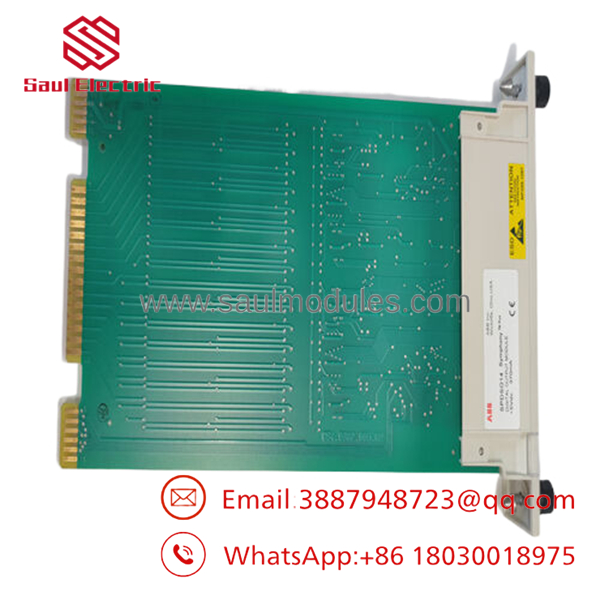

SPDSO14
SPDSO14
SPDSO14
SPDSO14



Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

  1. Verify the target rack slot assignment inside the Bailey mounting unit (MMU) chassis.
  2. Put on a grounded ESD wrist strap and clamp its reference clip to the copper cabinet grounding bar.
  3. Check the physical dip switch arrays and jumper headers on the component layout to ensure they precisely match the field channel configuration of the card being replaced.

Stage 2: Removal

  1. Unlatch the upper and lower plastic module retaining clips on the faceplate of the card assembly.
  2. Carefully pull the card straight forward out of the chassis guide rails, using steady, slow pressure to avoid snagging any external ribbon lines.
  3. Place the removed board directly into an ESD-protective shielding bag.

Stage 3: Installation (Clone & Seat)

  1. Configure all onboard hardware jumpers and DIP switches on the new surplus SPDSO14 to mirror the settings of the original board exactly (matching sinking vs. sourcing output wiring styles).
  2. Align the top and bottom circuit edges with the plastic tracks of the MMU chassis slot.
  3. Push the module smoothly backward until the rear card-edge gold contacts seat completely into the backplane connector socket, then lock the faceplate retaining clips.

Stage 4: Power-On & Testing

  1. The backplane automatically powers the slave module upon connection. Observe the local faceplate status indicators.
  2. Check your central engineering workstation console to ensure the master controller establishes a clean handshake with the new slot address without throwing configuration mismatch alarms.
  3. Toggle individual digital output bits from the HMI force screen to confirm the physical operation of external interposing relays and actuators.



Firmware/Software Versions & Upgrade Notes

The operates as an execution-level digital slave module managed by a primary controller board. It relies on internal firmware held in onboard ROM chips to handle its basic bus communication and output driver addressing.

When setting up this new surplus item, ensure that your master controller’s block configuration matches the revision suffix of the replacement hardware. If your master controller uses older system firmware (pre-revision 3.0), you may need to re-verify the output definition blocks within your engineering software tool. This ensures the system scales and routes the 16-channel digital data mapping correctly without introducing addressing errors across the internal slave network.



Frequently Asked Questions (FAQ)

Is this digital output board brand new, or has it been pulled from an active system?

This board is a guaranteed New Surplus component. It has never been deployed in an active field cabinet, run in a production line, or subjected to electrical repair. Every unit is kept in temperature-controlled storage and opened exclusively for our warehouse quality check and inbound inspection. We do not sell used or refurbished hardware.

Why should we spend more on a New Surplus module when cheap refurbished options are available online?

Refurbished digital output boards carry high operational risks because their output driver transistors and isolation optocouplers age under high thermal stress and degrade silently over time. A failure or drift on an old output card can cause a channel to lock in a permanently active state, leading to uncommanded valve operations or missed safety shutdowns. Sourcing a new surplus component completely eliminates this risk, providing a fresh 10–15 year operational life and protecting your plant from expensive unplanned downtime.

Do I need to buy special programming tools to configure the output channels on this card?

No separate software programming tool is required for the card itself. The board’s basic channel behaviors are set via physical onboard jumpers and hardware DIP switches. Once these match the old card’s configuration, the master controller manages the remaining engineering block assignments automatically.

Can the module be hot-swapped while the Bailey rack is powered?

Yes. The Bailey Infi 90 and Harmony backplane architectures support the safe extraction and insertion of slave modules while the system is powered. However, ensure you are wearing a properly grounded ESD wrist strap during the swap to prevent static shocks from damaging adjacent active slots.

What kind of warranty coverage applies to this hardware component?

We provide a comprehensive 1-year warranty on this New Surplus module, starting from the day it leaves our shipping center. This policy matches original OEM warranty parameters, providing dependable safety and security for your spare parts inventory.
