3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Auxiliary Voltage | 24 – 250 V DC / 100 – 230 V AC |
| Ambient Temperature | +5°C to +70°C |
| Nominal Voltage (VT) | 50 to 130 VAC |
| Frequency | 50 / 60 Hz (configurable) |
| Voltage Tolerance | 0 to 1.3 × Un |
| Channels | Dual independent channels |
| Function | Automatic synchronization, synchrocheck, voltage/frequency matching |
| Mounting | Plug-in module for rack or panel |
| Parameter Sets | Up to 7 |
| Communication | Modbus and fieldbus options |
4. Product Introduction
The ABB SYN5202-0277 (3BHB006715R0277) is an automatic dual-channel synchronizing unit in the SYNCHROTACT 5 series. It provides redundant synchronization and paralleling of generators to the grid or between power lines in power plants and large industrial setups.
Field deployments show the dual-channel design adds security by using independent hardware and software paths. It handles frequency and voltage matching plus breaker commands while monitoring paralleling conditions. This unit is a go-to choice where single-point failure is not acceptable and fast, safe synchronization is required.
- SYN5202-0277

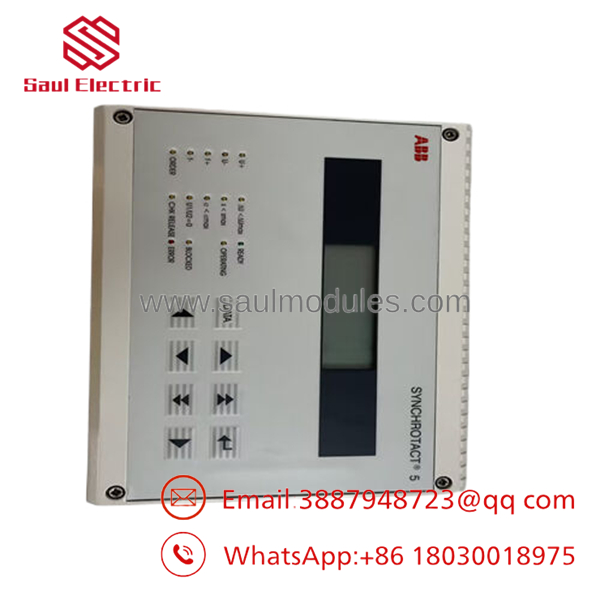

- SYN5202-0277
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| One channel fails | Channel-specific fault | High | Compare LED status and logs between channels | Use second channel; replace if primary fails |
| No close command | Limits exceeded or wiring issue | High | Monitor VT inputs and phase angle in SynView | Verify generator speed and voltage match |
| Communication error | Fieldbus config mismatch | Medium | Check Modbus parameters and cabling | Confirm address and protocol settings |
| Both channels lock out | Power or common input problem | Medium | Measure auxiliary voltage at terminals | Check supply and fuses before module swap |
| Inconsistent sync | Parameter set mismatch | High | Review active parameter set | Load correct site-specific parameters |
If both channels show issues after verifying external signals, the unit likely needs replacement. Send diagnostic logs, LED photos, and system details for support.
6. Frequently Asked Questions (FAQ)
What makes the dual-channel version different from single-channel models? The SYN5202-0277 has two independent channels with separate processors in one housing. This gives higher security against common mode failures compared to single-channel units like the SYN5201.
Is this unit new original stock? Yes, New Original / New Surplus with traceability. Every unit goes through inbound inspection, functional testing on a SYNCHROTACT rack, and parameter verification.
Can I use this as a direct replacement for older SYN5202 units? Usually yes, but confirm the exact type code suffix, voltage ratings, and parameter sets. Photograph the old module’s DIP switches or settings before removal.
Is hot-swapping supported? No. Shut down power to the synchronizer section first. Live insertion can cause incorrect commands or damage.
What warranty applies? Full 1-year warranty covering functional operation under normal conditions. We provide test reports with each shipment.
How many parameter sets does it support? Up to 7 parameter sets for different operating conditions or breakers. This allows flexible configuration for multi-breaker applications.
Do you provide configuration help after delivery? Yes. Share your system details, existing logs, and we will guide parameter setup or verify compatibility. Test videos and reports are available on request.
