Description
3. Key Technical Specifications
- Module Type: Turbine Protection Module (TP01)
- Safety Rating: SIL3 certified
- Protection Functions: Overspeed, power load unbalance, acceleration, trip anticipation, and more
- Analog Inputs: 5 channels with 16-bit resolution
- Analog Outputs: 2 channels
- Response Time: Controller-independent overspeed trip in <5 ms
- Redundancy Support: 1oo2, 2oo3 voting schemes
- Probe Support: Active and passive probes with diagnostics
- Turbine Compatibility: Steam, gas, and hydro turbines plus compressors
- Mounting: SD Series DIN rail packaging
- Environmental: -40 to +70°C operation
4. Product Introduction & Supply Chain Strategy
The ABB TP01 is a SIL3-rated Turbine Protection Module designed for the Symphony Plus SD Series. It delivers a complete set of built-in protection functions including rapid overspeed detection and response, making it essential for safe operation of steam, gas, and hydroelectric turbines. The module operates with high independence from the main controller to ensure reliable tripping even during control system disturbances.
Acquiring the TP01 as New Surplus represents excellent supply-chain strategy for turbine-focused plants. As a critical safety component, maintaining buffer stock prevents expensive forced outages from stock-outs. New Surplus avoids the reliability risks of refurbished parts in protection applications while keeping carrying costs lower than OEM new purchases. This supports lifecycle management and reduces obsolescence write-offs through targeted inventory planning.

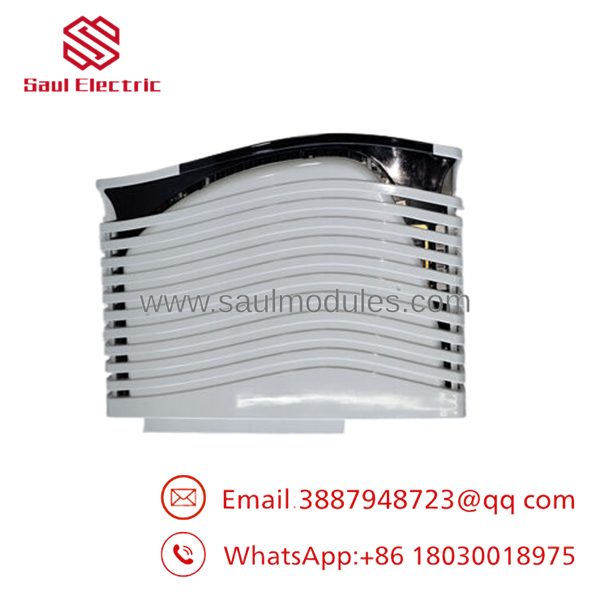

- TP01

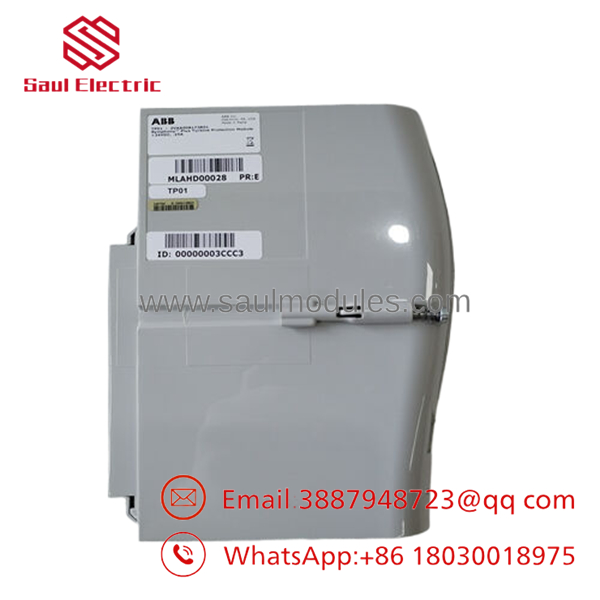

- TP01
5. Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety) Apply full lock-out/tag-out on turbine systems. Wear ESD protection and document all existing DIP switch settings, jumper positions, and field wiring with photos. Review the QC test report for the replacement module.
Stage 2: Removal Power down the SD Series rack as required by your safety procedures. Release retaining mechanisms and withdraw the old module straight from the base unit to protect connectors.
Stage 3: Installation (Clone & Seat) Set identical DIP switches and configuration on the new TP01. Align with the termination base and seat firmly into position, ensuring secure connections.
Stage 4: Power-On & Testing Restore power and observe status LEDs for proper operation. Perform full protection function tests, verify trip logic, probe diagnostics, and integration with the controller. Confirm SIL3 functions respond correctly before returning the turbine to service.
6. Firmware/Software Versions & Upgrade Notes
The integrates with the specific controller firmware in your SD Series Symphony Plus system. Protection algorithms are primarily handled within the module hardware and certified software.
Record current system firmware prior to replacement. Ensure compatibility between redundant protection paths. Hardware swaps should precede any firmware updates. Significant firmware changes during protection module replacement can affect voting logic or response times — validate all protection functions thoroughly after any update.
7. Frequently Asked Questions (FAQ)
Turbine protection demands proven reliability. New Surplus modules deliver full design lifespan and SIL3 integrity, while refurbished units risk degraded components that could compromise safety or cause false trips and unnecessary downtime.
Yes. They are genuine ABB New Surplus stock with original manufacturing quality, untouched field-side components, and full verification testing. We never supply used or repaired protection modules.
It remains a key active module in SD Series turbine applications. Strategic stocking of 1-2 units is recommended for critical installations to maintain compliance and availability.
Follow manufacturer guidelines and plant safety protocols. In properly designed redundant configurations, replacement is possible with minimal disruption, but always confirm trip logic and voting after installation.
Basic settings are handled through DIP switches and controller configuration. Match the original setup exactly. Full loop testing of all protection functions is mandatory after installation.
We back these New Surplus modules with a 1 year warranty, supported by detailed functional test reports tailored to turbine protection requirements.
Can you help with multi-plant inventory optimization for turbine spares? Yes. We provide cross-site sharing programs, consignment options, and lifecycle forecasting to balance safety stock with capital efficiency across Symphony Plus installations.
