Description
Product Introduction & Engineering Value
When an operator panel fails on a continuous process line, blind operations are not an option. The ABB 3BHB040969R0001 (TPC-1582H) provides the high-performance local human-machine interface (HMI) required to keep heavy industrial automation and medium-voltage drive control systems fully visible. Engineered with a die-cast aluminum alloy front bezel and fanless heat-dissipation architecture, it eliminates the thermal failure points common in fan-cooled commercial industrial PCs.
Integrating this exact unit into your system setup avoids the configuration headaches associated with third-party display retrofits. It features dedicated fieldbus integration slots (via Mini-PCIe / iDoor options) and a robust 5-wire resistive touchscreen built to endure dirty, glove-operated control environments. Swapping in a replacement 3BHB040969R0001 restores native communication with local system controllers like the ABB AC 800PEC without custom driver patches or bezel modification.
Technical Specifications
- Display Size & Type: 15-inch XGA TFT LED LCD (1024 x 768 Resolution)
- Processor: Intel 4th Gen Core i3-4010U 1.7 GHz Dual-Core
- System Memory: 4 GB DDR3L SDRAM (Pre-installed)
- Touchscreen Technology: 5-wire Industrial Resistive Touch Screen
- Power Input Supply: 24 V DC (±20% operating margin, 3-pin screw terminal)
- Front Protection Rating: IP65 dust-tight and washdown compliant
- I/O Communications: 2x Gigabit Ethernet (RJ45), 2x USB 3.0, RS-232/RS-422/RS-485 serial, 1x HDMI output
- Hardware Expansion: 1x PCIe slot, 1x Mini-PCIe slot (iDoor fieldbus expansion support)
- Mounting Configuration: Panel Mount (Mounting clamps included) or 100mm VESA Mount
- Physical Dimensions: 383 mm x 307 mm x 78.5 mm (15.08″ x 12.09″ x 3.09″)
- Weight: ~5.02 kg (11.0 lbs)

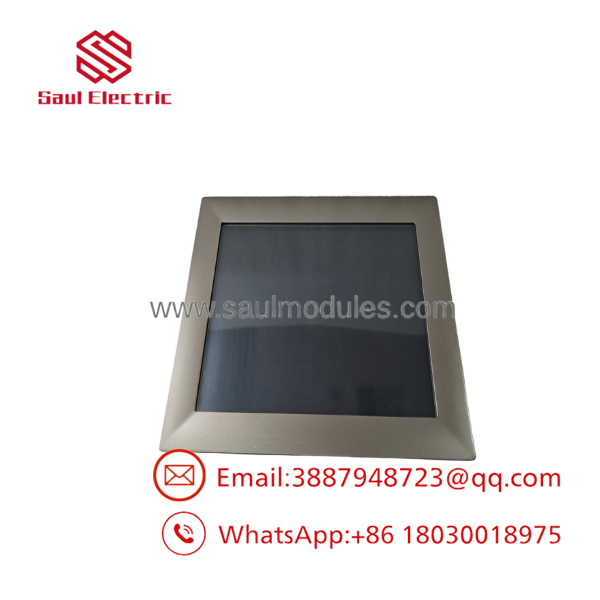

- TPC-1582H 3BHB040969R0001

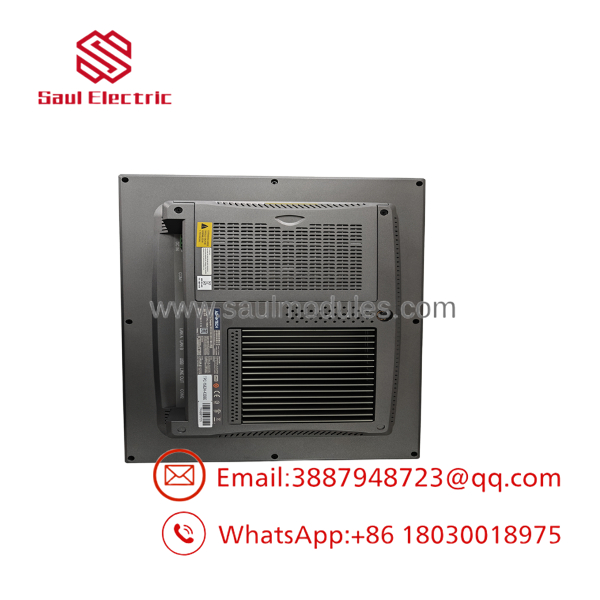

- TPC-1582H 3BHB040969R0001
Field Application & The “Trench” Experience
The Field Story
An offshore gas processing platform experienced display blanking on its main excitation control panel during heavy sea conditions. The existing panel PC suffered a failed backlight inverter brought on by continuous salt-fog corrosion and vibration. The engineering team needed an immediate, identical drop-in swap to restore local HMI visualization for the ABB excitation system. Installing a replacement 3BHB040969R0001 TPC-1582H allowed the crew to slide the terminal directly into the cutout, secure the panel clamps, plug in the 24V DC bus and Ethernet leads, and boot straight into the Windows Embedded runtime within 20 minutes.
Critical Niche Applications
- AC 800PEC Drive & Excitation Visualization: Serving as the Local Terminal (LCT Monitor) on medium-voltage drive control cubicles.
- Petrochemical Process Control Desks: Operating inside hazardous field control rooms requiring IP65 front seals against hydrocarbon vapor washdowns.
- Power Generation Turbine Diagnostics: Running real-time SCADA pages for local monitoring of turbine governor status and alarms.
Transparency SOP: QA & Testing
Every replacement 3BHB040969R0001 TPC-1582H unit goes through our standard quality assurance protocol before release:
- Visual & Mechanical Inspection: Detailed check of the die-cast front bezel, gasket integrity, panel mount threads, and screen surface to guarantee an IP65 sealing capability.
- Power & Thermal Stress Bench Test: Cold-booting the unit under a 24V DC power supply, followed by a continuous 4-hour thermal burn-in to verify fanless heat sink performance.
- Touch Alignment & Screen Calibration: 25-point touch accuracy verification on the 5-wire resistive glass, ensuring uniform response across corners and edges.
- Interface & Port Diagnostics: Loopback testing on serial communications ports (RS-232/485), USB bandwidth test, dual LAN link checks, and display output testing via HDMI.
The Veteran’s Tech Trap Guide
- ⚠️ DANGER: Do Not Over-Torque Panel Clamps! When installing the TPC-1582H into an enclosure cutout, tighten the panel mount screws in a cross pattern using hand tools only. Over-tightening with an impact driver will warp the front aluminum bezel, compromising the IP65 seal and causing touch calibration drift on the resistive screen glass.
- PRO TIP: Confirm OS Image & Runtime Version. Depending on your system generation (e.g., Windows Embedded Standard 7 vs. Windows 10 IoT), confirm that your backup CFast/SSD drive image or runtime application (such as CODESYS or WebAccess) matches the target OS environment before putting the unit online.
- PRO TIP: Isolate the 24V DC Ground. Industrial panel PCs are vulnerable to ground loops if the 0V DC supply line is tied improperly across dirty field instruments. Always wire the chassis ground stud on the back of the directly to the cabinet star-ground point.
Dynamic FAQ
Q: Is the 3BHB040969R0001 panel PC fanless?
A: Yes. The utilizes a completely fanless passive cooling design with an aluminum alloy chassis that acts as a heat sink, making it suitable for high-dust industrial environments.
Q: Can I use this touch panel while wearing industrial work gloves?
A: Yes. The panel uses a 5-wire resistive touchscreen, which relies on mechanical pressure rather than capacitive finger contact, allowing seamless operation with leather or rubber work gloves.
Q: Does this unit support fieldbus communication modules like PROFINET or EtherCAT?
A: Yes. Through the internal Mini-PCIe expansion slot, the unit supports modular fieldbus interfaces (such as Advantech iDoor options for PROFINET, EtherCAT, and EtherNet/IP).
Q: What is the standard power requirement for the 3BHB040969R0001?
A: It requires a regulated nominal 24V DC power supply, connected via a heavy-duty 3-pin pluggable terminal block.
Q: Are these units supplied with a warranty?
A: All New Surplus and fully reconditioned replacement units are covered by a full 12-month operational warranty.
