3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 8 |
| Voltage Rating | 250 V |
| Max Current per Channel | 3 A |
| Mounting | DIN rail |
| Wire Size | Up to 6 mm² (depending on variant) |
| Features | Power distribution, fuses, extended terminals |
| Compatible Modules | Various analog/digital I/O for 250 V applications |
| Protection | Integrated fuses for process power |
4. Product Introduction

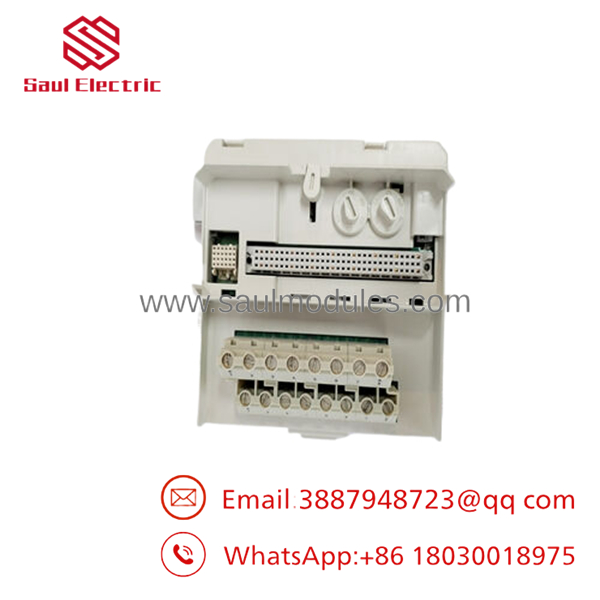

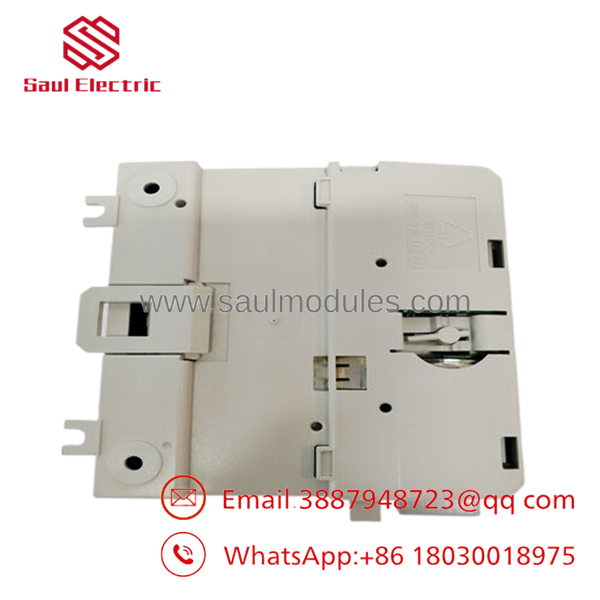

The ABB TU831V1 is an extended module termination unit for the S800 I/O system. It provides robust screw terminal connections for 8 channels plus power distribution in 250 V applications.
Plant engineers select the extended version when more wiring space or integrated fusing is needed compared to compact MTUs. It supports clean installations with room for larger gauge wires and clear labeling in control panels.
- TU831V1
- TU831V1
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Blown fuse | Overcurrent on channel | High | Check fuse status indicators | Replace fuse and review load |
| No connection on terminal | Loose screw or broken wire | High | Measure continuity at each terminal | Re-terminate wires with proper torque |
| Voltage drop | Undersized wiring | Medium | Measure voltage at MTU vs. field | Use larger gauge wire within specs |
| Ground loop noise | Multiple ground points | Medium | Verify single-point grounding scheme | Correct shield and ZP connections |
| Module communication fail | MTU address or bus issue | Low | Check ModuleBus connections | Verify daisy-chain integrity to next MTU |
Wiring and fusing issues account for most field problems. If the MTU tests clean with a multimeter, focus on the attached I/O module or field devices.
6. Frequently Asked Questions (FAQ)
What is the difference between compact and extended MTUs like TU811 vs TU831? Extended versions such as the TU831V1 offer more terminal space, better power distribution, and often integrated fuses. They suit applications needing larger wires or additional connection points.
Is this new original stock? Yes, New Original / New Surplus. Each unit is visually inspected and mechanically verified.
Which modules work with the TU831V1? It pairs with a range of S800 I/O modules rated for 250 V. Confirm exact compatibility for your analog or digital module in the S800 documentation.
Does it include fusing? Yes, the extended design typically incorporates process power fusing for protection of field circuits.
What wire sizes can it handle? It accepts up to 6 mm² wires in many configurations. Always match stripping length and torque recommendations from the manual.
Can I use it in redundant setups? Yes, the S800 system supports redundant I/O configurations with appropriate MTU and module pairings. Plan cable routing accordingly.
Do you offer help with S800 panel layout? Yes. Share your module list and we can advise on MTU selection, power distribution, and best practices for reliable long-term operation.
