Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | UDD406A |
| Product Type | Industrial control module / board |
| System Role | Control and signal interface |
| Application | ABB automation and process control systems |
| Installation | Control cabinet / rack-mounted |
| Condition | New Surplus / Original New |
| Stock Position | Obsolete / End-of-life spare |
| Procurement Strategy | Maintain safety stock and vendor backup |
| Replacement Risk | High if exact revision is unavailable |
Product Introduction & Supply Chain Strategy

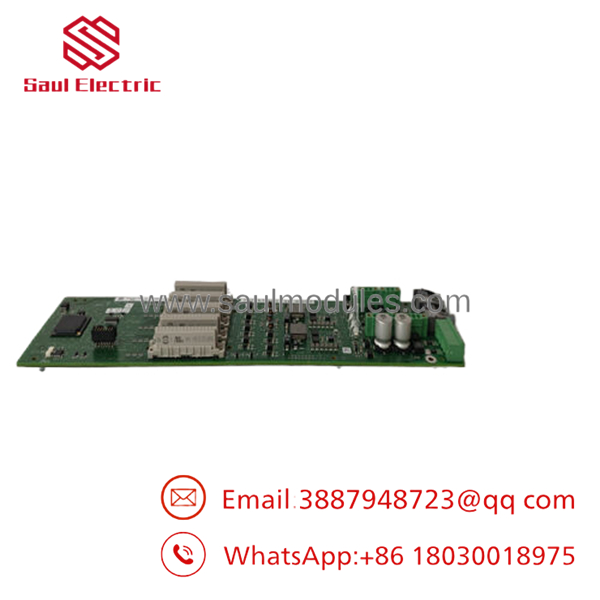

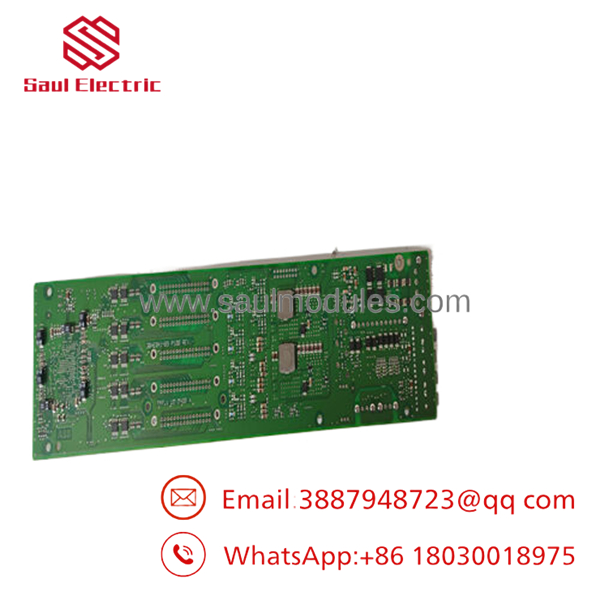

ABB UDD406A is a legacy ABB automation module used for control and signal interface duties in industrial systems. It belongs in the category of exact-match spares where part revision and system compatibility matter more than generic equivalence.
Buying this as New Surplus supports better TCO than chasing emergency replacements later. For an obsolete part, the right move is controlled buffer stock, vendor consolidation, and a planned last-time-buy strategy before lead time variability creates a stock-out.
Installation & Configuration Guide
Stage 1: Pre-Installation
Apply lock-out/tag-out and confirm the cabinet is fully de-energized. Prepare an ESD strap, insulated tools, and a camera for documenting wiring, connector orientation, and any switch settings. Verify the exact part number and revision before unboxing.
Stage 2: Removal
Remove the retaining hardware carefully and pull the module straight out. Do not twist the board or force it against the backplane. Inspect the slot and pins for contamination, corrosion, or bending before installation.
Stage 3: Installation
Copy the original configuration exactly if switches or jumpers are present. Seat the module evenly and confirm it is fully engaged. Reconnect the wiring only after verifying terminal mapping and keying.
Stage 4: Power-On & Testing
Check the 24 V supply path for shorts before power-up. After energizing, verify LED status, controller recognition, and expected I/O or communication behavior. Confirm the host logic loads correctly and the system returns to normal operation.
- UDD406A
- UDD406A
Firmware/Software Versions & Upgrade Notes
No reliable public firmware reference should be assumed without matching the installed system revision. For legacy ABB spares, the safest practice is to preserve the existing version and mirror the removed unit’s configuration.
Firmware changes during a swap can introduce protocol mismatches or startup faults. Downgrading can be just as risky if the target controller rejects the image or expects a newer revision. Record the original version before replacement and avoid unnecessary changes.
Frequently Asked Questions (FAQ)
Is UDD406A really new?
Yes, the correct inventory position is New Surplus / Original New, not rebuilt inventory.
Why is it not priced like OEM list stock?
Because surplus inventory usually costs less than direct factory supply, while still preserving original part identity and traceability.
Why does it cost more than questionable alternatives?
Because verified New Surplus inventory reduces hidden failure risk, which lowers Total Cost of Ownership over the life of the spare.
Is this part obsolete?
Yes, treat it as an obsolete or end-of-life spare and stock it with a controlled safety buffer.
Can I hot-swap it?
Do not assume hot-swap capability. Use lock-out/tag-out and follow the site’s approved replacement procedure.
Will my configuration be retained?
The application is usually stored in the controller or system project, not in the board itself. Back up the logic, parameters, and addressing before replacement.
What warranty terms make sense?
For New Surplus ABB hardware, 1 to 2 years is a common commercial expectation depending on supplier QC and traceability.
