3. Key Technical Specifications
- Module Type: Universal Field Controller (UFC) / I/O Interface
- Input Voltage: Nominal 24 V DC (20-30 V DC range)
- I/O Configuration: Supports multiple analog and digital channels
- Communication: Serial and fieldbus interfaces for controller integration
- System Compatibility: ABB AC 800M, 800xA distributed control systems
- Resolution: 16-bit processing for precision signals
- Mounting: Standard DIN rail or rack integration
- Power Consumption: Low power design for efficient operation
- Environmental: Industrial grade for harsh plant conditions
- Part Numbers: 3BHB003041R0001 primary, 3BHB000272R0001 associated board
4. Product Introduction & Supply Chain Strategy
The ABB UFC719AE01 (3BHB003041R0001) is a Universal Field Controller and I/O interface module that links field devices to ABB AC 800M controllers in distributed control systems. It handles signal conditioning, data acquisition, and communication for a wide range of analog and digital I/O in process automation applications.
Purchasing this as New Surplus delivers clear Total Cost of Ownership benefits. It provides OEM-level reliability for critical I/O functions while avoiding the failure risks associated with refurbished modules. For plants with installed AC 800M bases, New Surplus inventory reduces lead time variability, supports vendor consolidation, and prevents costly stock-outs without excessive capital tied up in full OEM replacements.

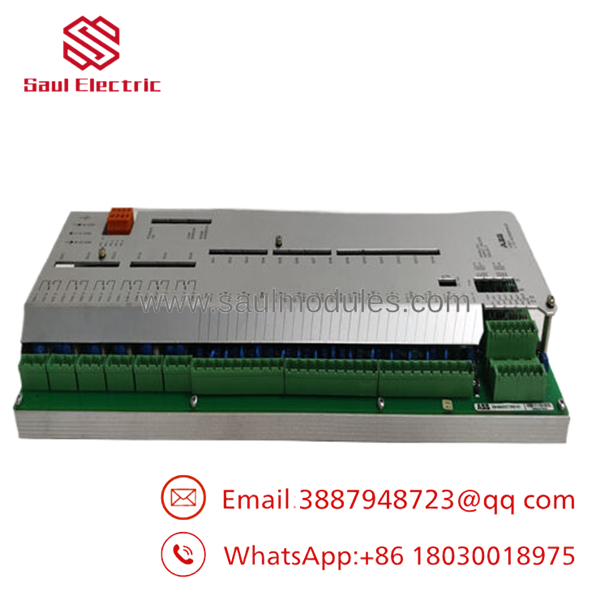

- UFC719AE01 3BHB003041R0001 3BHB000272R0001
5. Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety) Execute lock-out/tag-out. Equip ESD wrist strap and photograph existing DIP switches, jumpers, terminal wiring, and module positions. Verify the new UFC719AE01 serial numbers against QC documentation.
Stage 2: Removal Power down the controller rack per procedures. Release the module and extract it straight from the base to safeguard backplane connectors.
Stage 3: Installation (Clone & Seat) Configure the new module’s DIP switches and settings to precisely match the removed unit. Align and seat the UFC719AE01 firmly into the slot until fully engaged.
Stage 4: Power-On & Testing Restore power and check status indicators for normal operation. Validate I/O signal integrity, communication with the controller, and run system diagnostics before resuming full operations.
6. Firmware/Software Versions & Upgrade Notes
The UFC719AE01 operates under the firmware of the host AC 800M controller. No independent firmware update is typically applied directly to the module.
Always note the current controller firmware version before hardware replacement. Incompatible firmware levels can disrupt I/O scanning or communication. Complete the physical module swap and I/O verification first, then address any necessary controller firmware updates in a controlled manner. Avoid simultaneous major firmware changes during I/O module swaps.
7. Frequently Asked Questions (FAQ)
Why is the New Surplus price for UFC719AE01 higher than refurbished but lower than new OEM? It reflects genuine ABB sourcing costs for unused stock. This provides long-term reliability and full warranty versus the short service life and risks of refurbished parts that may have undetected wear.
Are these modules really New Original? Yes. They are authentic New Surplus units from authorized channels. They feature original packaging and components with zero runtime hours beyond quality verification testing.
It is a key module for AC 800M systems. We recommend buffer stock for installed bases and proactive planning for eventual End of Life transitions.
It depends on your specific redundant controller setup and safety procedures. Always follow lock-out/tag-out and verify full I/O functionality after installation.
Does the replacement module retain prior configurations? I/O mapping and parameters are managed in the controller. Match physical DIP switch settings exactly. The system will detect and integrate the new module after proper installation and diagnostics.
What warranty is provided? We offer 1 year warranty coverage on these New Surplus modules, backed by comprehensive functional test reports in a simulated control environment.
Can you assist with inventory optimization across sites? Yes. We support frame agreements, cross-plant sharing, and consignment programs to improve turnover ratios while ensuring availability of critical I/O modules like the .
