ABB UFC789AE101 3BHE014023R0101 AC 800PEC Control Board

Description

Key Technical Specifications

ABB documentation identifies 3BHE014023R0101 as UFC789AE101 with catalog description “FSCD-BOARD,COATED.” Supplier references associate this board with ABB AC 800PEC and excitation-related applications.

Product Introduction & Supply Chain Strategy

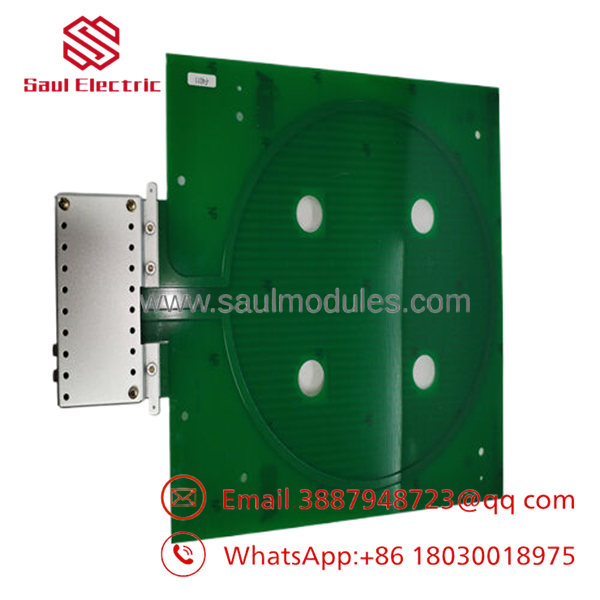

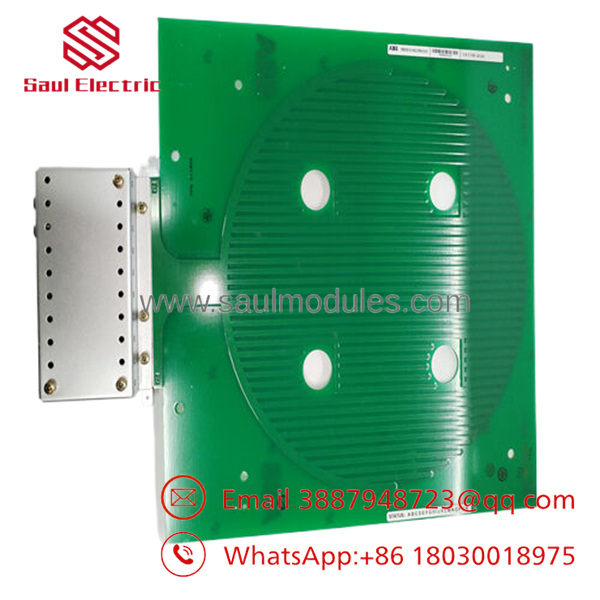

ABB UFC789AE101 3BHE014023R0101 is an FSCD coated control board used in ABB industrial power electronics control environments. It is associated with AC 800PEC-based systems and applications requiring precise control of excitation or power conversion functions.

Maintaining this board as New Surplus supports lifecycle management for installed ABB systems. For critical power assets, planned Buffer stock reduces EOL stock-out risk, avoids emergency sourcing delays, and improves Total Cost of Ownership (TCO) by protecting production availability.

UFC789AE101

UFC789AE101

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Confirm replacement identification:
   • ABB
   • 3BHE014023R0101
2. Perform Lock-out/Tag-out before opening the cabinet.
3. Prepare:
   • ESD wrist strap
   • Insulated tools
   • Multimeter
   • Camera for wiring records
4. Record:
   • Existing board location
   • Cable routing
   • Connector positions
   • Firmware/software revision
   • Controller parameters

Stage 2: Removal

1. Shut down the ABB system according to approved procedures.
2. Verify all power sources are isolated.
3. Disconnect fiber, signal, and power connections carefully.
4. Remove mounting screws or retaining hardware.
5. Extract the board straight out to avoid connector damage.

Stage 3: Installation (Clone & Seat)

1. Inspect the New Original / New Surplus board.
2. Verify:
   • Part number
   • Hardware revision
   • Connector condition
   • PCB coating condition
3. Install the replacement board into the same rack position.
4. Secure the board mechanically.
5. Reconnect all wiring exactly as documented.

Stage 4: Power-On & Testing

1. Verify 24 V DC supply rails before energizing.
2. Check for abnormal resistance or shorts.
3. Power up the control system.
4. Check diagnostic indicators:
   • RUN status
   • Fault/alarm LEDs
   • Communication status
5. Verify controller communication.
6. Restore configuration and confirm system operation.

Firmware/Software Versions & Upgrade Notes

• Recommended Firmware: Match the existing ABB AC 800PEC / excitation controller firmware revision.
• Compatibility Check: Confirm controller software version, application configuration, and board revision before replacement.
• Backward Compatibility Risk: Different firmware revisions may require updated engineering files or parameter migration.
• Upgrade Warning: Avoid firmware upgrades during emergency replacement unless compatibility is verified.
• Downgrade Warning: Firmware rollback may cause configuration conflicts or communication errors.

Before replacement:

• Save application backups.
• Export configuration parameters.
• Record diagnostic logs.
• Document all communication settings.

Frequently Asked Questions (FAQ)

Yes. The correct supply condition is New Original / New Surplus. It refers to original ABB inventory maintained for industrial maintenance demand.

Q2: What does FSCD-Board, Coated mean?
It refers to a coated circuit board assembly. The coating provides additional protection for industrial cabinet environments.

Q3: Why is New Surplus pricing different from OEM channels?
Legacy automation hardware can become difficult to source after lifecycle changes. New Surplus inventory provides original hardware availability while avoiding long procurement delays.

This board is commonly associated with ABB power electronics and excitation-related control applications. Confirm the exact installed system before replacement.

Q5: Can this board be hot-swapped?
Only if the specific ABB system design allows hot replacement. Normally, control boards should be replaced after full isolation.

Q6: Will replacing the board remove system parameters?
It depends on the ABB system architecture. Always back up application data and configuration before removal.

Q7: How many units should be stocked?
For critical excitation or power conversion systems, maintaining 1–2 units as on-site Buffer stock is recommended. For lower-risk assets, consider vendor-held stock or cross-site inventory sharing.
