Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | UFC911B104 |
| Part Number | 3BHE037864R0104 |
| Product Type | Excitation controller / field control unit |
| Application | Synchronous generator voltage regulation |
| System Family | ABB Unitrol F |
| Supply Voltage | 24 V DC control environment |
| Function | AVR, field current, and power factor control |
| Operating Context | Power generation and industrial power systems |
| Replacement Strategy | Exact-match spare recommended |
| Lifecycle Status | Obsolete / End-of-life |
Product Introduction & Supply Chain Strategy
ABB UFC911B104 3BHE037864R0104 is a generator excitation control module used in power generation and industrial electrical systems. It manages excitation and voltage regulation functions where stable generator performance and exact platform compatibility matter.
Buying this as New Surplus is the safer TCO decision for a critical spare. It reduces stock-out exposure, supports buffer stock planning, and avoids the hidden downtime risk that comes with non-original or poorly traced inventory.

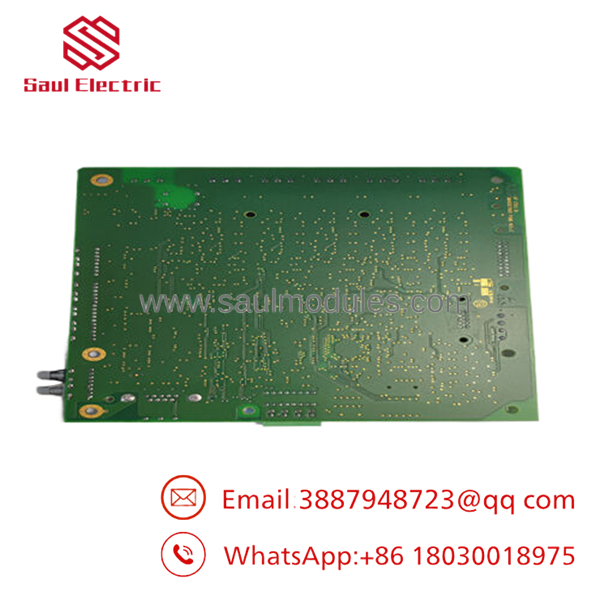

- UFC911B104

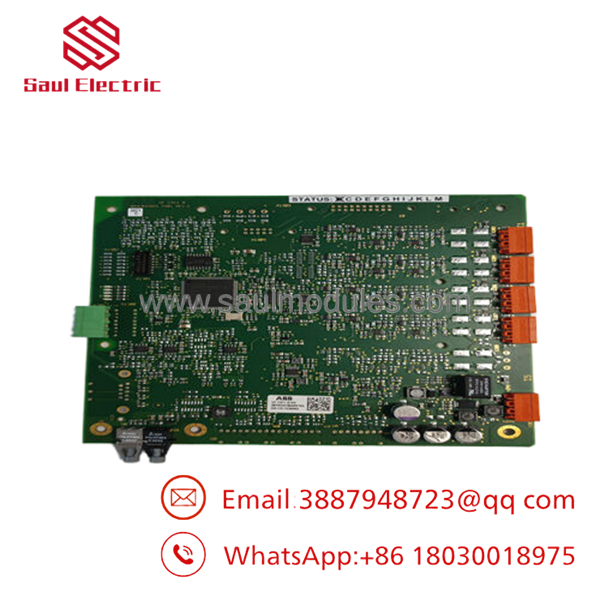

- UFC911B104
Installation & Configuration Guide
Stage 1: Pre-Installation
Apply lock-out/tag-out before opening the cabinet. Gather an ESD strap, insulated tools, and a camera for documenting wiring, connector orientation, and any jumper or DIP settings. Confirm the exact part number and revision before unboxing the replacement.
Stage 2: Removal
Release the retaining hardware carefully and pull the module straight out. Do not twist, pry, or rock the board against the backplane. Inspect the slot and connector pins for contamination, corrosion, or bending before installing the spare.
Stage 3: Installation
Clone the original configuration exactly if any switches or jumpers are present. Seat the replacement module evenly until it fully engages. Reconnect wiring only after verifying terminal mapping and polarity from the original photos.
Stage 4: Power-On & Testing
Check the 24 V supply rail and related cabinet power circuits for shorts before energizing. Power up and confirm LED status, controller recognition, and stable communication with the host system. Validate excitation behavior, alarm status, and any required parameter download before returning the unit to service.
Firmware/Software Versions & Upgrade Notes
Keep the replacement aligned with the same firmware or loader level as the removed unit whenever possible. Version drift in excitation control hardware can create communication faults, unexpected diagnostics, or startup inhibition.
Avoid upgrading during a direct swap unless the site has already validated the new revision in the same ABB platform. Downgrading can be equally risky if the system expects a different image or driver behavior. Record the original version before replacement and mirror it whenever possible.
Frequently Asked Questions (FAQ)
Is this part really new?
Yes, the commercial position should be New Surplus / Original New, not repaired or field-worn inventory.
Why is it cheaper than OEM new?
Because surplus sourcing typically costs less than factory list supply while still preserving the original ABB part identity.
Why is it still above questionable alternatives?
Because verified New Surplus inventory carries traceability, QC effort, and lower hidden failure risk, which improves Total Cost of Ownership.
Is UFC911B104 obsolete?
Yes, treat it as an obsolete or end-of-life spare and keep a controlled buffer stock.
Can I hot-swap it?
Do not assume hot-swap capability. Use lock-out/tag-out and the site-approved replacement procedure.
Will my settings be retained?
Configuration is usually stored in the host system or project file, not in the spare board itself. Back up the logic, parameters, and control settings before replacement.
What warranty terms make sense?
For New Surplus ABB hardware, 1 to 2 years is a common commercial target depending on supplier QC and traceability.
