Description
3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 3BHE014185R0001 |
| Module Type | Voltage Transducer Control Board |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Weight | Approx. 1.44 kg |
| Application | PCS6000 inverter systems, drives |
| Power Supply | 24 V DC typical |
| Protection Class | IP20 (cabinet mounted) |
| Function | Precise voltage monitoring and control |
4. Product Introduction

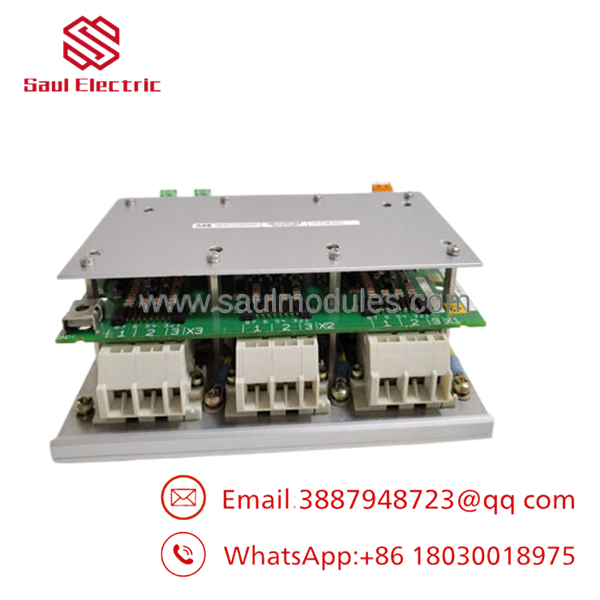

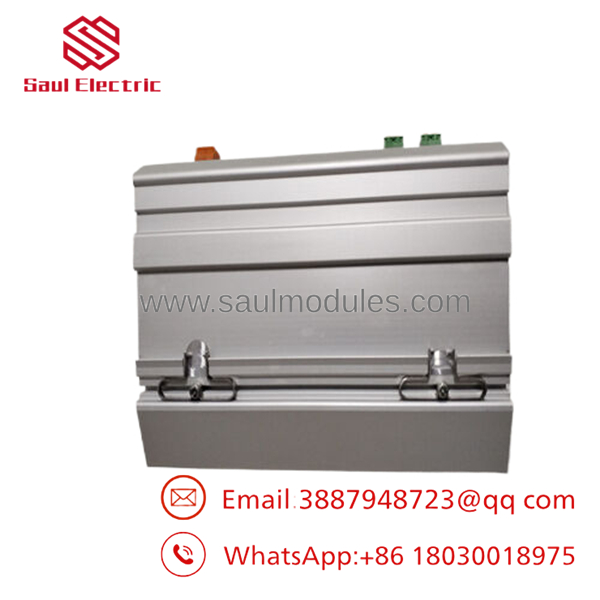

The ABB UUD148AE01 (3BHE014185R0001) is a voltage transducer control board used in ABB power conversion systems such as PCS6000 inverters and drive applications. It provides accurate voltage signal processing for reliable generator and motor control.
This board supports demanding medium-voltage applications with its robust design and integration into ABB control architectures. Maintenance teams prefer it for field-proven performance in high-power environments where accurate transduction directly impacts system stability.
- UUD148AE01
- UUD148AE01
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No voltage readings | Power supply or wiring fault | ✅ High | Measure input voltage at board terminals | Verify 24V supply and connections |
| Erratic transducer output | Signal noise or calibration drift | ✅ High | Compare output against known reference voltage | Check shielding and ground connections |
| Module not detected | Communication or seating issue | ✅ Medium | Inspect LEDs and rack connections | Reseat board; verify bus communication |
| Over-temperature alarm | Poor ventilation or overload | ✅ Medium | Monitor cabinet temperature | Improve airflow; check load calculations |
| Inaccurate measurements | Faulty transducer circuit | ✅ High | Use multimeter on test points | Replace board if calibration fails |
Provide serial number, system logs, and wiring photos when contacting support for faster diagnosis.
6. Frequently Asked Questions (FAQ)
Can I hot-swap the UUD148AE01? No. Shut down the relevant power section and follow safety procedures. Live swapping risks damage to the board or connected systems.
What is the primary application? It serves as a voltage transducer control board in PCS6000 medium-voltage converters and similar ABB drive systems for precise monitoring and control.
Is this New Original stock? Yes. New Original / New Surplus units with full traceability. Each passes visual, power-on, and functional checks before shipment.
Will it replace older revisions directly? Usually yes in the same system slot, but confirm hardware revision and software compatibility. Note existing jumper or DIP settings before removal.
How do I test or calibrate it? Use ABB diagnostic tools or a calibrated voltage source. Follow the system manual for test point measurements and parameter verification.
What warranty is included? 1-year warranty from shipment date on functional New Original units. Covers defects under standard operating conditions.
Why buy surplus inventory? Shorter lead times compared to new factory production. All boards receive rigorous inbound inspection including visual checks, electrical testing, and burn-in where applicable. Test data available on request.
