3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | YPQ101E YT204001-FS |
| Type | Analog Input / Robotic Control Card |
| Input Voltage | 24 V DC |
| Power Consumption | Approx. 15 W |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Function | Signal acquisition and interfacing |
| Application | ABB drives, robotics, and Advant systems |
4. Product Introduction
The ABB YPQ101E YT204001-FS is a robotic control card and analog input board used in ABB drive and automation systems. It facilitates precise signal acquisition from sensors and field devices.
This board supports reliable integration in robotic and process control applications. It is a common spare for maintaining legacy and active ABB installations requiring accurate input handling.

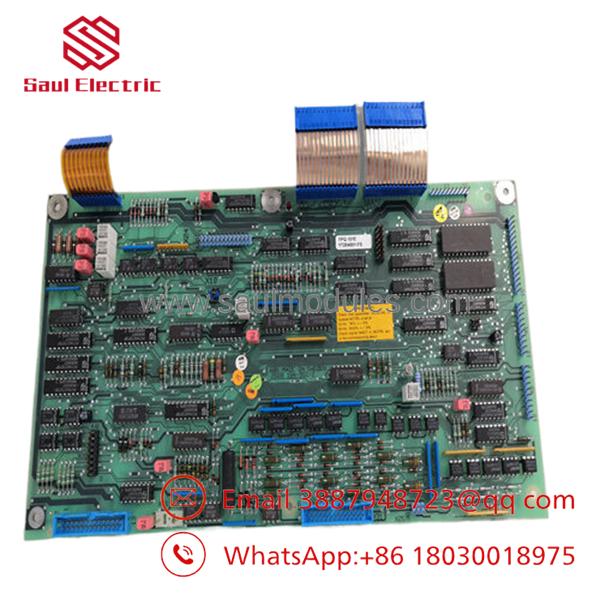

- YPQ101E YT

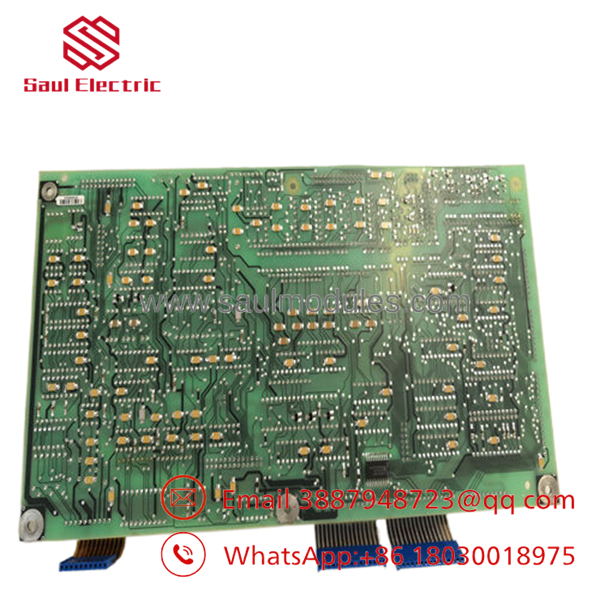

- YPQ101E YT
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No input signals | Wiring or power issue | ✅ High | Measure 24V DC at terminals | Verify supply and field wiring |
| Inaccurate readings | Calibration or noise | ✅ High | Compare with reference signal | Check shielding and grounding |
| Card not responding | Seating or configuration | ✅ Medium | Inspect LEDs and connections | Reseat card; confirm parameters |
| Overheating | Ventilation or overload | ✅ Medium | Monitor operating temperature | Improve cabinet cooling |
| Intermittent signals | Loose connections | ✅ High | Visual inspection | Tighten terminals and connectors |
Use system diagnostics and test equipment for signal verification.
6. Frequently Asked Questions (FAQ)
Is the YPQ101E hot-swappable? No. Power down the system before removal or installation.
What is the primary application? It serves as an analog input and control card for ABB drives, robotics, and process automation systems.
Is this New Original? Yes. New Original / New Surplus with traceability. Boards undergo inspection and basic functional testing.
Will it replace existing YPQ101E units? Yes in compatible setups. Match the full part number and document settings before swap.
How do I test the board? Apply known input signals and monitor outputs via engineering tools or multimeter. Follow ABB system manuals for calibration.
What warranty applies? 1-year warranty from shipment on New Original boards.
Why use surplus? Immediate availability for critical spares. Each unit receives detailed inbound checks. Test data available upon request.
