Product Introduction
To be honest, the Absolute Process Instruments API4380GD is a reliable problem-solver when you need to bridge incompatible analog control loops on the plant floor. This field-configurable DC-to-DC isolating transmitter takes standard voltage or current inputs and scales them to isolated process outputs, preventing ground loops and protecting sensitive control hardware from electrical surges.
Built with an 8-pin plug-in octal socket design, it features front-accessible configuration switches that allow technicians to set hundreds of distinct input and output ranges without replacing the hardware. In our field experience, keeping a spare API4380GD on the shelf is an easy insurance policy when legacy signal conditioners fail during critical batch runs.
Key Technical Specifications
| Parameter | Value |
| Power Supply Voltage | 9 to 30 VDC (-D suffix variant) |
| Isolation Voltage | 2000V full input/output/power isolation |
| Input Ranges (Field Configurable) | Voltage: 0-50 mVDC to 0-10 VDC | Current: 0-1 mADC to 0-20 mADC |
| Output Ranges (Field Configurable) | Voltage: 0-1 VDC to 0-10 VDC | Current: 0-2 mADC to 0-20 mADC |
| Response Time | 100 milliseconds typical |
| Output Ripple and Noise | Better than \pm0.1% of span |
| Operating Temperature | -10°C to +60°C |
| Enclosure Protection | IP40 (Requires installation in panel or DIN rail socket) |
| Mounting Style | 8-pin octal socket (API 008 / API 008 FS) for 35mm DIN rail or panel |
| Dimensions & Weight | Standard plug-in octal module housing |
Application Scenarios & The “Trench” Experience
Picture this: It’s 2:00 AM in a municipal water treatment facility. A sudden electrical strike near the chemical feed skids blows an analog input card because an unisolated pressure transmitter sent a high-voltage spike down the 4-20mA line. The dosing system locks up, and plant operators are forced into manual control. Swapping in a pre-configured API4380GD isolating transmitter breaks the ground path, blocks future voltage transients, and restores clean automation feedback within minutes.
- Water & Wastewater – Pumping Stations: Converting raw sensor voltages and currents for safe PLC and SCADA integration.
- Chemical Processing – Reactor Feed Control: Rescaling analog control loops while maintaining strict 2000V electrical isolation.
- Manufacturing – Motor Speed Monitoring: Interfacing variable speed drive tachometer signals with legacy analog panel meters and controllers.

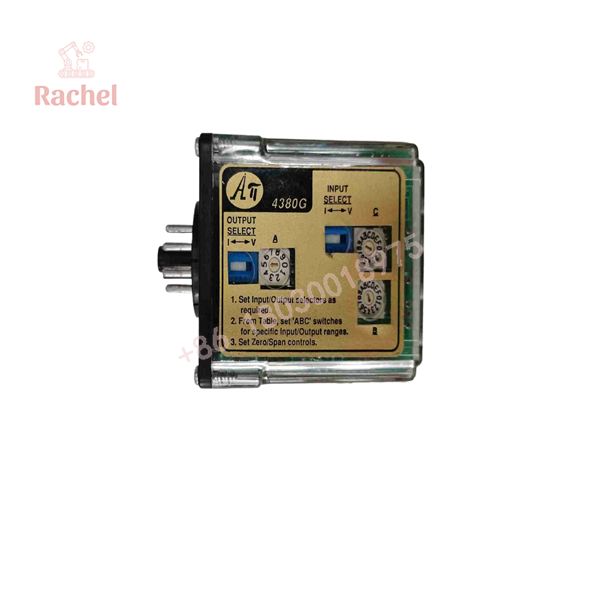

API4380GD

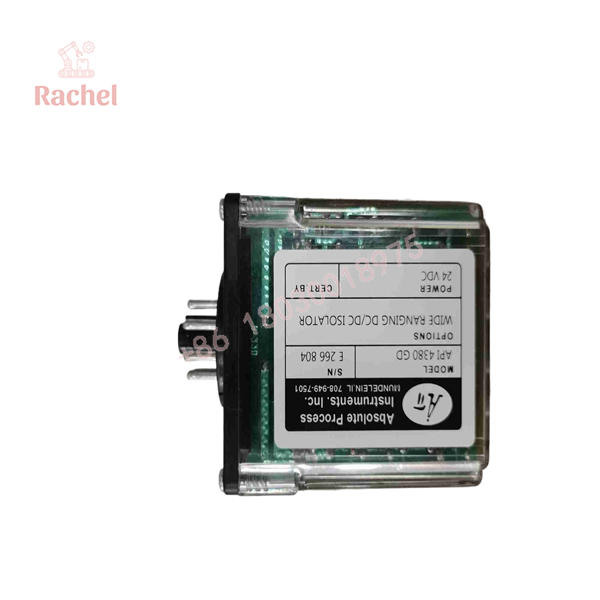

API4380GD
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual calibration benches. Every unit goes through a strict verification protocol:
- Inbound Inspection: Visual check for pin integrity on the octal base, housing cracks, and authentic manufacturer labels.
- Live Rig Testing: Powering the module on a regulated DC bench supply to verify internal power regulation and LoopTracker LED status indicators.
- Signal Calibration Check: Injecting calibrated voltage and current reference signals to test input-to-output linearity across multiple configuration ranges.
- Isolation Barrier Test: Confirming 2000V dielectric isolation between input, output, and power terminals.
- Final QC & Anti-static Packaging: Securing the module in anti-static packaging with protective terminal foam.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Octal Socket Pin Alignment: Never force the 8-pin plug into its socket. Bent pins on the octal base are the number one cause of intermittent contact failures; align the center keyway properly before pushing the module home.
❗ DIP Switch Range Settings: Double-check your external DIP switch settings against the manufacturer configuration tables before applying live power. Incorrect range switches will output distorted scaling and send erratic control values to your PLC.
⚠️ Power Supply Voltage Mismatch: Verify your supply voltage rating. The -D suffix designates a 9-30 VDC powered unit; applying standard 115 VAC line voltage directly to this model will instantly destroy the internal power transformer and circuitry.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the API4380GD hot-swappable?
A: Yes. Because it plugs into an industry-standard 8-pin octal socket (like the API 008 or API 008 FS), you can pull and replace the module without cutting main panel wiring or removing external signal leads, provided power is isolated.
Q: Do I need a software laptop connection to configure the input ranges?
A: No. The API4380GD uses physical external DIP switches and configuration tables printed on the housing for rapid range selection. No specialized programming software or calibration tools are required.
Q: Does this unit come with a warranty?
A: Yes. All surplus and fully tested units include a standard 12-month replacement warranty.
Q: Why choose surplus instead of direct factory channels?
A: Legacy signal conditioners often carry extended factory lead times. We source verified surplus and overstock inventory so you can get an immediate, direct replacement to keep your process running without costly delays.
