AJINEXTEK AMW-MC12-DB96P 12-Axis Motion Controller

Description

Product Introduction

The AJINEXTEK AMW-MC12-DB96P is a compact standalone motion controller from the AMW-MCxx-DBxxx family. It combines 12-axis motion control with 96-channel digital I/O, making it suitable for semiconductor, OLED panel, SMT, and other high-cycle automation machines.

The MC12 designation indicates 12 motion axes; the DB96 designation indicates 96 digital I/O channels. In this configuration, the controller supports four servo axes and eight stepper axes, with 48 inputs and 48 outputs, plus an onboard 24 VDC at 1 A supply. The trailing P should be verified against the AJINEXTEK manual and installed machine documentation, as suffixes can denote connector, power, or hardware-option differences.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

An SMT machine’s pick-and-place head starts missing positions after a long production run. The HMI shows no obvious alarm, but one axis drifts and the machine begins rejecting boards. On a compact AJINEXTEK controller, the fault may be a noisy encoder cable, a failed output transistor, or a marginal 24 VDC supply—not necessarily the motion software.

• Semiconductor manufacturing – Wafer handling, inspection stages, and small-axis positioning – Required because the controller integrates servo and stepper motion with high-density digital I/O in one compact unit.
• OLED and display-panel manufacturing – Transfer, alignment, and handling stations – Required for synchronized multi-axis motion and machine I/O control.
• SMT assembly – Pick-and-place, conveyor indexing, and feeder control – Required for four servo axes, eight stepper axes, and 96 digital I/O points.
• Factory automation – Compact multi-axis machines with sensors, actuators, and indexing motion – Required for standalone control without a separate large PLC and motion-card architecture.
• Legacy equipment repair – Direct replacement of a failed AMW-MC12-DB96P – Required because axis count, I/O count, connector layout, and power configuration are model-specific.

Field case study: An OLED handling machine began intermittently dropping a vacuum output during high-speed transfer. Technicians replaced a sensor and checked the PLC logic, but the fault persisted. The actual cause was a degraded output channel on the motion controller’s I/O section. A tested AMW-MC12-DB96P restored reliable output switching and eliminated hours of intermittent machine stoppages.

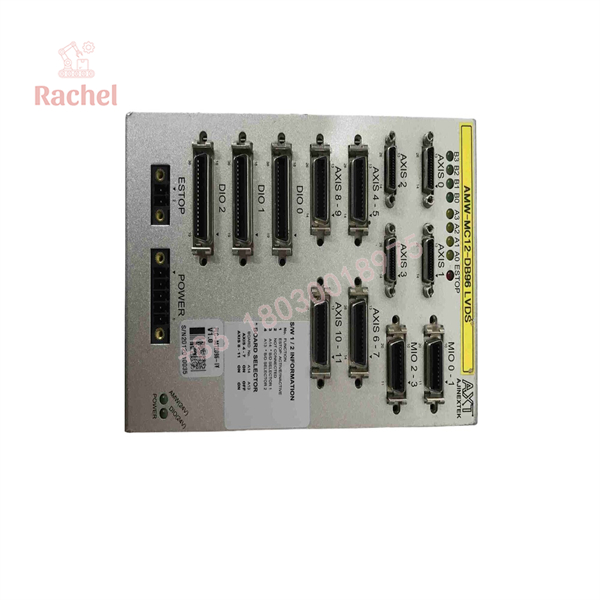

AMW-MC12-DB96P

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on a compatible AJINEXTEK motion-control rig or equivalent bench setup where available.

• Inbound inspection: Verify model marking, connector condition, terminal-block integrity, PCB damage, cooling/clearance, and evidence of prior repair.
• Anti-counterfeit check: Compare label format, PCB construction, connector hardware, and firmware/configuration against known AJINEXTEK AMW examples.
• Live rig testing: Power the controller with the specified 24 VDC supply, confirm boot behavior, and verify communication with the AJINEXTEK programming/configuration environment.
• Motion-axis testing: Exercise servo and stepper outputs where a compatible drive/load is available; verify command response, direction control, pulse output behavior, and alarm handling.
• Digital I/O testing: Cycle all accessible inputs and outputs; check for stuck outputs, weak drivers, input pull-up/pull-down faults, and shorted channels.
• Power checks: Measure 24 VDC rail stability under load and inspect for excessive ripple, overheating, or supply degradation.
• Final QC and packaging: Record test results, protect connectors and terminals, and ship in anti-static, impact-resistant packaging.

The Veteran’s Tech Trap Guide

• ⚠️ Do not assume the P suffix is cosmetic. The base AMW-MC12-DB96 and the AMW-MC12-DB96P may differ in connector style, power arrangement, or hardware option. Match the exact suffix and machine drawing before ordering.
• ❗ Check the 24 VDC supply first. The controller includes an onboard 24 VDC at 1 A supply; a sagging external supply or overloaded I/O common can cause intermittent axis and output faults.
• ⚠️ Separate motion faults from I/O faults. A failed output can stop a pneumatic cylinder or vacuum circuit, while the motion axes remain healthy. Test I/O channels independently before replacing the whole controller.
• ❗ Inspect encoder and pulse cables before condemning an axis. On compact motion controllers, shielded-cable damage and ground loops create position errors that resemble servo tuning or controller failure.
• ⚠️ Use ESD precautions. This is a dense motion/I-O controller. A grounded wrist strap, protected connectors, and anti-static packaging are mandatory.

Frequently Asked Questions

Q: Is the AMW-MC12-DB96P hot-swappable?
A: No. Remove controller power, verify the 24 VDC rail has decayed, lock out the machine, and disconnect I/O and motion connectors before removal.

Q: How many axes does it control?
A: It controls 12 motion axes: four servo axes and eight stepper axes.

Q: How many digital I/O points does it include?
A: It includes 96 digital I/O channels: 48 inputs and 48 outputs.

Q: Is it a PLC?
A: It is better described as a compact standalone motion controller with integrated digital I/O. Some surplus listings call it a PLC, but its primary role is multi-axis motion and machine I/O control.

Q: Can I replace it with an AMW-MC12-DB96?
A: Not automatically. The base model and the P version may differ in connector, power, or hardware configuration. Verify the exact suffix, wiring diagram, and AJINEXTEK manual before substitution.

Q: Why is surplus stock cheaper than a new OEM controller?
A: Surplus suppliers source retired machine spares, excess project stock, and decommissioned equipment. The lower price reflects variable availability and cosmetic condition, not necessarily poor electrical quality—provided the unit passes power, I/O, and motion-axis testing.

Q: What warranty should I expect?
A: For a tested refurbished or surplus unit, 12 months is a reasonable baseline. Confirm whether it covers functional failure, replacement, repair labor, and exclusions for incorrect wiring, overvoltage, or mechanical overload.
