Alcatel-Lucent 1665 LNW19B Network Module

Description

Product Introduction & Engineering Value

The Alcatel-Lucent 1665 LNW19B is a network module associated with the Alcatel-Lucent 1665 platform. The LNW designation is important during maintenance because individual network modules are designed for specific platform functions, interfaces, and system configurations.

For a replacement, match 1665 LNW19B exactly and verify the installed chassis configuration, hardware revision, software/firmware requirements, and network provisioning. A physically compatible board is not automatically a functionally compatible one.

Technical Specifications

Engineering note

The LNW19B designation should not be used to infer specific port counts, optical wavelengths, transmission rates, or connector types without verification. Alcatel-Lucent 1665 network modules can have platform-specific characteristics, and the exact hardware label should be used when qualifying a spare.

Field Application & the “Trench” Experience

In a live optical transport system, replacing a network module is not simply a matter of removing one board and inserting another.

A maintenance team may have a replacement LNW board that fits the shelf correctly, but the system can still reject it because of software compatibility, provisioning, hardware revision, or an incorrect module assignment. That is why the installed configuration should be documented before beginning the replacement.

For 1665 LNW19B, record the shelf type, slot position, module label, hardware revision, connected fiber/electrical interfaces, and applicable system software before removal.

Specific application scenarios

• SONET/SDH transport network nodes using Alcatel-Lucent 1665 equipment.
• Carrier optical transport shelves supporting legacy telecom services.
• Metro and regional transport infrastructure where qualified LNW-series spares are maintained for service restoration.

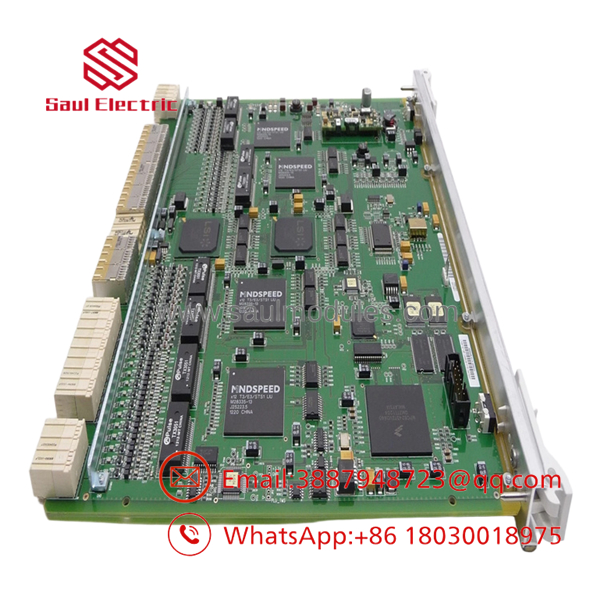

1665 LNW19B

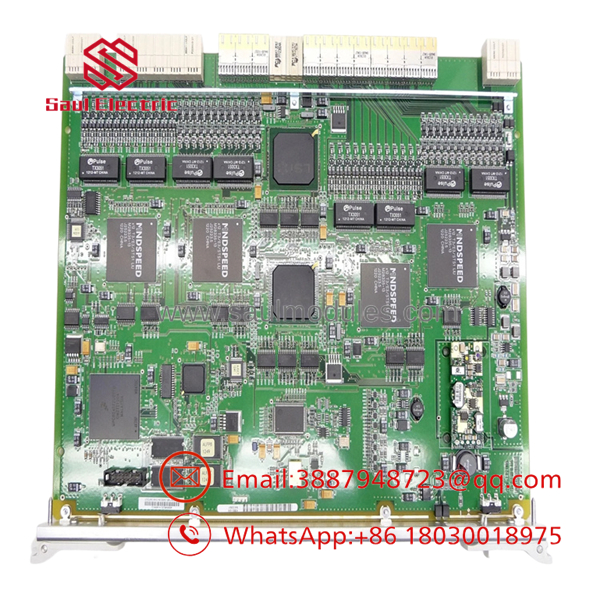

1665 LNW19B

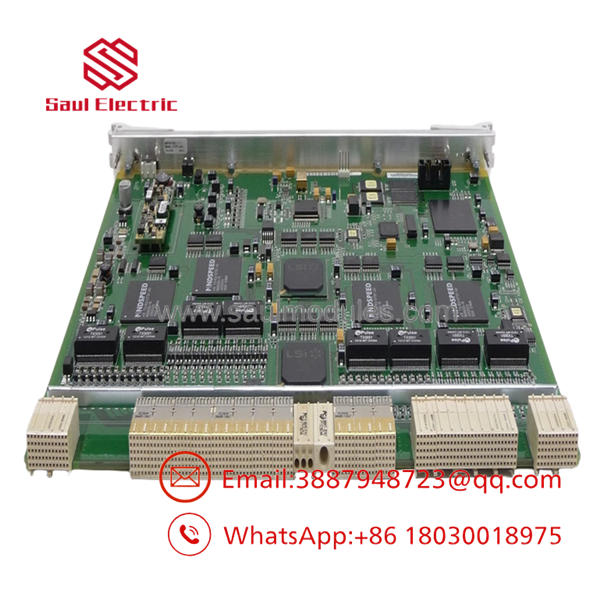

1665 LNW19B

Transparency SOP: QA & Testing

For New Surplus Alcatel-Lucent 1665 , use a platform-based test procedure:

1. Verify identity — Confirm 1665 on the physical module.
2. Inspect the board — Check connectors, handles, guides, PCB surfaces, and mounting hardware.
3. Check revision information — Record hardware and manufacturing information available on the label.
4. Inspect optical interfaces — Where applicable, check connectors and protective components for contamination or damage.
5. Shelf installation test — Install in a compatible 1665 test shelf where available.
6. System recognition — Verify that the shelf correctly identifies the .
7. Functional verification — Test applicable network interfaces, alarms, and system functions.

For optical equipment, connector cleanliness should be treated as part of functional maintenance, not cosmetic inspection.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Confusing LNW modules

Do not treat the LNW family as interchangeable. The designation is part of the functional identification.

⚠️ Trap #2 — Ignoring system software

A replacement board can be electrically sound and still be unsuitable for the installed software release or provisioning configuration. Check compatibility before the maintenance window.

PRO TIP: Record the shelf type, slot, software release, and existing module revision before removal. These details can save hours during restoration.

⚠️ Trap #3 — Contaminated optical connectors

If the particular configuration uses optical interfaces, inspect and clean connectors using approved fiber-optic procedures before connecting them. Do not troubleshoot an optical link with contaminated connectors.

Dynamic FAQ

What is Alcatel-Lucent 1665 ?

It is a network/transport module for the Alcatel-Lucent 1665 platform, identified by the designation.

Is a standalone network device?

No. It is a platform-specific module intended to operate within the applicable Alcatel-Lucent 1665 system.

Can another LNW module replace ?

Not automatically. Verify the exact network function, interfaces, hardware revision, system software, and provisioning requirements.

What should I verify before purchasing a replacement?

Confirm the designation, host shelf, slot, hardware revision, software release, interface configuration, and any applicable network provisioning requirements.

Does New Surplus hardware include network configuration?

Normally, the hardware condition and system provisioning are separate matters. Do not assume that a replacement module contains the configuration of the failed field unit.

How should New Surplus be tested?

A proper test should include physical inspection, shelf recognition, alarm/status verification, and applicable interface testing using a compatible Alcatel-Lucent 1665 environment.

What warranty should I request?

Confirm the warranty period, exact hardware condition, test scope, hardware revision, serial-number traceability, and return terms. For carrier-grade telecom equipment, ask specifically whether the module has undergone system-level testing rather than only a visual or power-on inspection.
