Description
Product Introduction & Engineering Value
Power quality problems rarely announce themselves before causing production interruptions. Voltage imbalance, poor power factor, or harmonic distortion often remain unnoticed until protective devices begin tripping or critical equipment behaves unpredictably. The Allen-Bradley 1404-M405A-DNT continuously monitors these electrical conditions to provide engineers with actionable operating data.
As part of the PowerMonitor 3000 family, this master module combines three-phase electrical metering, event logging, digital I/O, alarm functions, and DeviceNet communication. It is commonly installed in main switchgear, motor control centers, and facility power distribution panels where accurate energy measurements and electrical diagnostics are required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 1404-M405A-DNT |
| Product Family | PowerMonitor 3000 |
| Product Type | Master Power Monitoring Module |
| Communication | DeviceNet |
| Metering | Three-Phase Power Monitoring |
| Nominal Current Input | 5 A AC CT |
| Voltage Input Range | 20–600 VAC |
| Nominal Voltage | 480 VAC Line-to-Line |
| Control Power | 120–240 VAC, 50/60 Hz or 125–250 VDC |
| Control Power Consumption | 15 VA Maximum |
| Digital Inputs | 4 Optically Isolated (18–30 VDC) |
| Digital Outputs | 4 Form C Relay Outputs |
| Relay Rating | 240 VAC, 2 A |
| Data Functions | Data Logging, Setpoints, Alarms, Energy Monitoring |
| Mounting | Panel Mount |
Field Application & The “Trench” Experience
A food processing facility experienced unexplained nuisance trips on several large refrigeration compressors during production shifts. Protective relays showed no obvious faults, and replacing contactors produced no improvement.
Maintenance engineers installed a replacement 1404-M405A-DNT after discovering the original monitoring module had stopped recording transient events. Within days, the PowerMonitor identified recurring voltage sags caused by upstream utility switching. The captured event logs allowed engineers to install appropriate ride-through protection, eliminating repeated production interruptions.
Typical application scenarios include:
- Main switchboard energy monitoring
- Medium-voltage distribution substations
- Data center power quality analysis
- Cement plant electrical demand management
- Large motor control center energy reporting

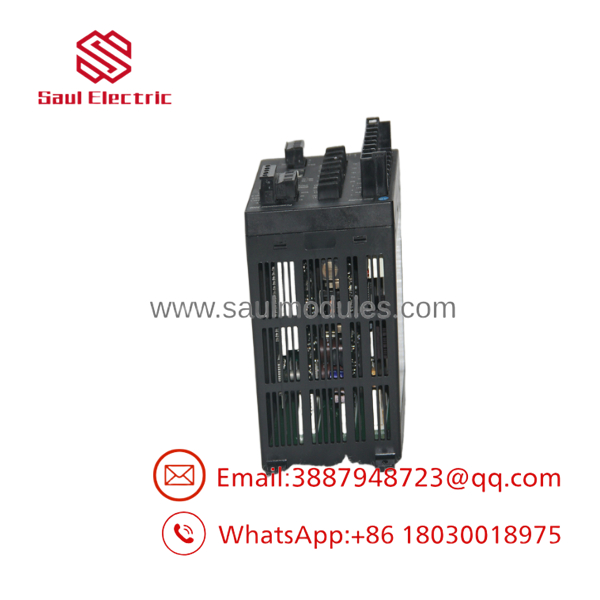

- 1404-M405A-DNT

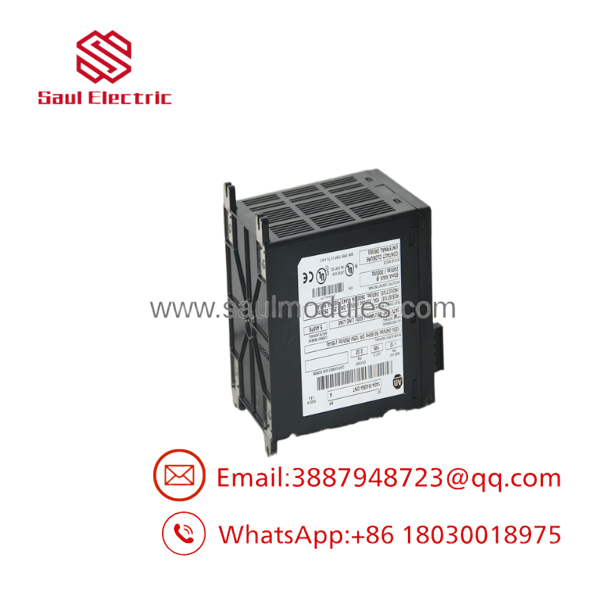

- 1404-M405A-DNT

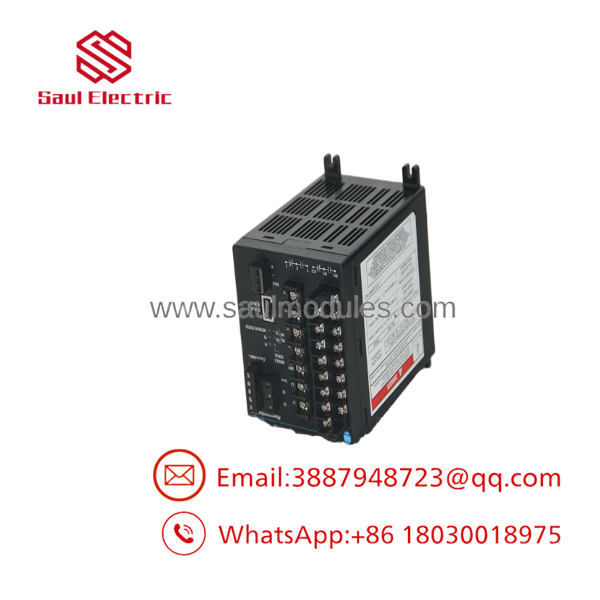

- 1404-M405A-DNT
Transparency SOP: QA & Testing
Every New Surplus or professionally Refurbished 1404- completes a documented inspection before shipment.
- Verify catalog number, firmware label, and hardware revision.
- Inspect voltage and current input terminals for overheating or mechanical damage.
- Test DeviceNet communication with a compatible network scanner.
- Verify digital inputs, relay outputs, and alarm functionality.
- Confirm power-up diagnostics and event logging operation.
- Perform functional metering verification using calibrated voltage and current simulation equipment.
- Package in ESD-protective materials with full traceability documentation.
The Veteran’s Tech Trap Guide
⚠️ Never connect current transformers with an open secondary. Disconnecting CT wiring while energized can generate dangerously high voltages and permanently damage both the transformer and monitoring equipment.
⚠️ Verify the DeviceNet node address before replacing the module. Duplicate node addresses or incorrect baud rate settings often appear as communication failures when the hardware itself is operating normally.
PRO TIP: Record CT ratios, PT ratios, and scaling parameters before replacing the module. Incorrect scaling produces perfectly stable—but completely inaccurate—energy and demand readings.
PRO TIP: Don’t ignore event timestamps. If the module clock has drifted significantly, power disturbance reports may no longer correlate with PLC, SCADA, or protective relay logs.
Dynamic FAQ
Q1. What is the primary function of the 1404-?
The 1404- is a PowerMonitor 3000 Master Module that performs three-phase power metering, energy monitoring, event logging, alarm management, and DeviceNet communication for industrial electrical distribution systems.
Q2. What communication protocol does this model support?
This catalog number includes an integrated DeviceNet communication interface. The “DNT” suffix identifies the DeviceNet communication option.
Q3. What control power is required?
The module accepts 120–240 VAC (50/60 Hz) or 125–250 VDC control power, allowing installation in a wide range of industrial electrical panels.
Q4. Can the module perform energy logging and alarm functions?
Yes. The supports data logging, programmable setpoints, event recording, relay outputs, and power quality monitoring, making it suitable for energy management and preventive maintenance programs.
Q5. How is New Surplus authenticity verified?
Every module is inspected for catalog number, hardware condition, communication functionality, digital I/O operation, relay output performance, and metering accuracy using calibrated test equipment before shipment.
Q6. Is the 1404- still manufactured?
The PowerMonitor 3000 platform is a legacy product and has been discontinued by Rockwell Automation. Most replacement units are supplied as New Surplus, professionally Refurbished, or through industrial repair services supporting existing installations.
