Description
Product Introduction
The Allen-Bradley 1492-AIFM8-3 is an 8-channel feed-through analog interface module (IFM) engineered to streamline field wiring for Allen-Bradley PLC and PAC platforms, including ControlLogix (1756), CompactLogix (1769/5069), and SLC 500 (1746) analog I/O cards.
Equipped with a 25-pin D-shell connector for pre-wired cable harnesses and fixed screw terminal blocks on the field side, the 1492-AIFM8-3 provides three dedicated wiring terminals per analog channel (positive, negative/return, and shield/ground). This eliminates messy terminal strip jumpers, speeds up control panel assembly, and drastically reduces point-to-point wiring errors.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer Part Number | 1492-AIFM8-3 |
| Module Type | Feed-Through Analog Interface Module (IFM) |
| Number of Channels | 8 Channels (Analog Input or Output) |
| Field Terminals per Channel | 3 Terminals (+ Signal, – Signal, Shield/Common) |
| Control Side Connection | 25-Pin Female D-Shell Connector |
| Field Side Connection | Fixed Screw Terminal Block |
| Rated Voltage / Current | 24 VDC Nominal / 12 A Maximum Total |
| Mounting Style | Top-Hat 35 mm DIN Rail (EN 50022) |
| Dimensions (H x W x D) | 83 mm x 110 mm x 69.6 mm (3.27 in x 4.33 in x 2.74 in) |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
Application Scenarios & The “Trench” Experience
It is 11:00 AM during a scheduled weekend plant outage. Electricians are upgrading an old PLC-5 rack to a ControlLogix 1756-IF8 analog input system. Instead of spending hours individually landing 24 fragile transmitter wires directly onto the tight 1756-TBCH removable terminal block, they mount a 1492-AIFM8-3 onto the DIN rail, plug in a pre-tested 1492 D-shell cable harness to the card, and quickly terminate the 3-wire 4-20mA pressure transmitters onto the spacious 3-terminal blocks. Commissioning time is cut in half with zero miswires.
- Water/Waste Water Treatment – 4-20mA Instrumentation Loop Isolation – Easily lands 3-wire level, pressure, and flow transmitters with dedicated shield ground connections.
- Chemical Process Automation – Multi-Channel Analog Input Racks – Interface to 1756-IF8 or 1756-IF16 modules using pre-wired D-sub shielded cable assemblies.
- OEM Panel Building – High-Density PLC Cabinets – Simplifies panel layout and reduces wire harness assembly labor while enhancing long-term serviceability.
- 1492-AIFM8-3

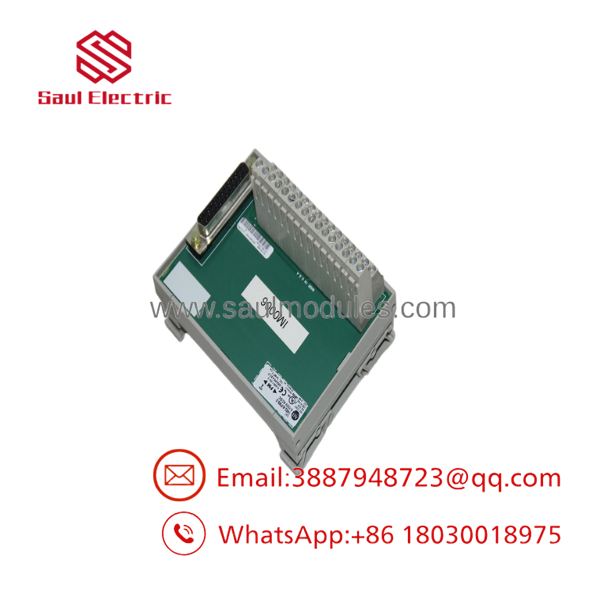

- 1492-AIFM8-3
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we inspect and bench-test every interface module prior to dispatch.
- Inbound Pin & Housing Inspection: Visual check of the 25-pin D-shell connector pins for bends or oxidation and verification of terminal screw threads.
- Channel Continuity & Resistance Check: Point-to-point ohmmeter verification from every D-shell pin to its corresponding field terminal to ensure zero trace cracks or high resistance.
- Shield Plane Isolation Test: Verified electrical continuity across all shield/ground terminals to ground plane while ensuring separation from signal traces.
- Live PLC Cable Mating Test: Mated with standard Bulletin 1492 pre-wired cables to ensure smooth mechanical latching and contact retention.
- ESD Protection & Packaging: Cleaned, sealed in static-shielding wrap, and packed inside padded protective shipping cartons.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Verify Cable Pinout Compatibility!
The 1492- uses a 25-pin D-shell connector. Always select the correct Rockwell 1492 pre-wired cable (e.g.,
1492-ACABLExxxseries) specified for your exact analog module (e.g., 1756-IF8 vs. 1756-IF16 vs. 1769-IF4). Plugging in an unapproved or custom cable can misalign 24V loop power to signal pins! - ❗ Shield Drain Wire Grounding Practice
The third terminal on each channel is designated for the shield drain wire. Ensure the shield plane of the 1492- is properly grounded according to your system architecture (single-ended grounding at the panel) to prevent noise loops on sensitive 0-10V or 4-20mA signals.
- ⚠️ Mind 2-Wire vs. 3-Wire Transmitter Loop Power
The 1492- is a passive feed-through module. If you are using 2-wire non-isolated transmitters requiring loop power from the panel, verify whether your pre-wired cable or external power supply is supplying 24V DC loop power to the field terminals.
- ❗ Do NOT Over-Torque Terminal Screws
Excessive torque on field screw terminals can crack the internal PCB surface traces. Tighten field terminal screws to the recommended 0.5–0.6 N·m (4.4–5.3 lb-in) torque rating.
Frequently Asked Questions (FAQ for Conversion)
Q: What is the difference between 1492- and 1492-AIFM8-2?
A: The 1492- provides 3 terminals per input channel (+, -, and Shield/Common), making it ideal for 3-wire transmitters or shielded field cabling. The 1492-AIFM8-2 only provides 2 terminals per input channel (+ and -).
Q: Does the 1492- contain built-in fuses or LED indicators?
A: No. The 1492- is a standard, non-fusible feed-through interface module. If you require channel-level fuse protection or blown-fuse LEDs, look for the fusible series (such as the 1492-AIFM6S-24 series).
Q: Is the 1492- compatible with both analog inputs and outputs?
A: Yes. It is a passive pin-to-terminal interface module and can be used for either 8-channel analog inputs or 8-channel analog outputs, provided the matching pre-wired cable is used for the PLC card.
Q: Are these units brand new from Allen-Bradley?
A: We stock both New Surplus (unused original packaging) and fully certified, bench-tested refurbished original Allen-Bradley 1492- interface modules.
Q: What warranty comes with this module?
A: Every Allen-Bradley 1492- module comes with a full 12-month replacement warranty. If any pin or terminal block connection fails under normal operating conditions within one year, we replace it immediately from stock.
