Product Introduction & Engineering Value
Many drive faults blamed on the inverter actually originate from missing or incorrectly configured field I/O. The Allen-Bradley 20-750-2263C-1R2T provides additional analog and digital interfaces, allowing a PowerFlex 750 drive to communicate directly with field devices such as pushbuttons, limit switches, analog transmitters, and status indicators.
Designed for the PowerFlex 753 and 755 platform, this option card simplifies machine integration by placing frequently required I/O directly inside the drive. For retrofit projects, it often eliminates the need for additional remote I/O hardware while maintaining deterministic drive-level control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 20-750-2263C-1R2T |
| Product Family | PowerFlex 750-Series |
| Module Type | 22-Series 24 VDC I/O Option Module |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Digital Inputs | 6 (24 VDC) |
| Relay Outputs | 1 |
| Transistor Outputs | 2 |
| Analog Input Modes | Voltage or Current (jumper selectable) |
| Supported Drives | PowerFlex 753, PowerFlex 755, selected 755T family drives |
| Installation | User-installed option slot |
| Firmware | Factory programmed (not field upgradeable) |
Field Application & The “Trench” Experience
A packaging plant was upgrading several conveyor drives to PowerFlex 755 units. During commissioning, the engineering team discovered that the original PLC cabinet lacked sufficient spare I/O points for additional safety interlocks and speed reference signals.
Rather than installing another remote I/O rack, the engineers added a 20-750-2263C-1R2T to each drive. The built-in analog and digital channels handled local machine signals, reducing cabinet modifications and shortening commissioning time. The drives were integrated into production without expanding the PLC hardware footprint.
Typical applications include:
- Conveyor speed reference and status feedback
- Pump and fan process control
- Packaging machine local I/O expansion
- Material handling systems requiring distributed drive-level control
Transparency SOP: QA & Testing
Each New Surplus or professionally Refurbished module undergoes documented inspection before shipment.
- Verify catalog number and Series identification.
- Inspect PCB, connectors, and terminal interfaces for mechanical damage.
- Confirm analog input and output operation using calibrated signal simulators.
- Test all six digital inputs and three output circuits (one relay, two transistor outputs).
- Verify communication with a compatible PowerFlex 750 drive.
- Perform final visual inspection and package in ESD-safe materials.

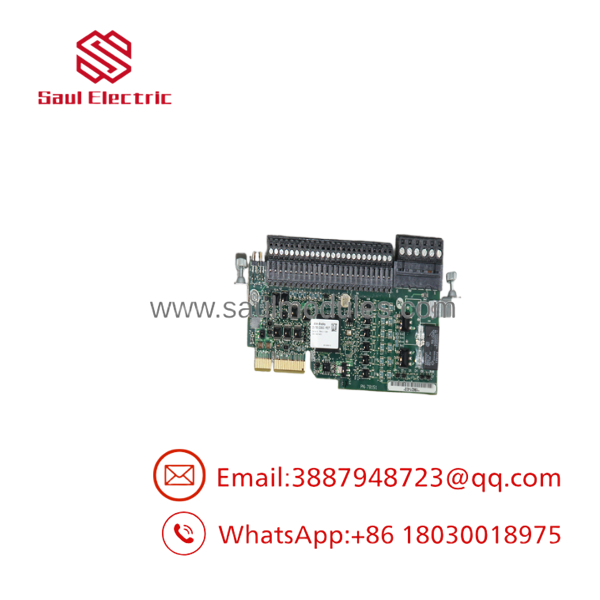

- 20-750-2263C-1R2T

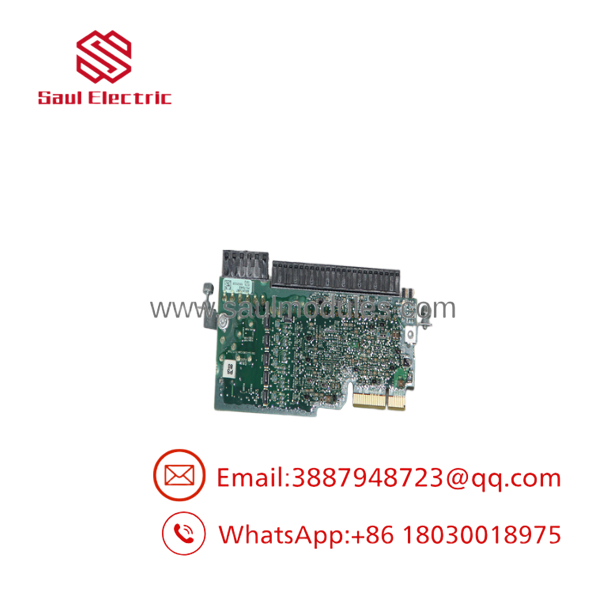

- 20-750-2263C-1R2T
The Veteran’s Tech Trap Guide
⚠️ Verify analog input jumper settings before applying power. The analog inputs support both voltage and current modes. Installing the wrong jumper configuration can produce incorrect process readings or prevent proper signal acquisition.
⚠️ Don’t assume every option slot supports every application. For Integrated Motion over EtherNet/IP applications, this module must be installed in Port 7 on a PowerFlex 755 and requires compatible firmware and Studio 5000 software revisions.
PRO TIP: If the drive reports a “Port Not Found” or “Port Not Functioning” alarm after startup, verify both the option card seating and the applicable Rockwell product notices before replacing the hardware. Certain firmware and hardware combinations have documented startup anomalies.
PRO TIP: Label every field wire before replacing the module. Incorrect reassignment of analog outputs is a common cause of unexpected motor behavior after commissioning.
Dynamic FAQ
Q1. What is the primary purpose of the 20-750-2263C-1R2T?
It expands a PowerFlex 750-Series drive with 2 analog inputs, 2 analog outputs, 6 digital inputs, 1 relay output, and 2 transistor outputs, enabling direct connection to field devices.
Q2. Which PowerFlex drives support this option module?
The module is compatible with PowerFlex 753, PowerFlex 755, and selected PowerFlex 755T family drives when installed in a supported option slot.
Q3. Are the analog inputs configurable?
Yes. The analog inputs can be configured for voltage or current operation by setting the onboard jumpers before installation.
Q4. Can the module firmware be upgraded in the field?
No. The firmware supplied with the 20-750-2263C-1R2T is factory programmed and is not field upgradeable.
Q5. How is New Surplus authenticity verified?
Each module is checked for catalog number, Series revision, connector integrity, analog and digital I/O functionality, and successful communication with a compatible PowerFlex 750-Series drive before shipment.
Q6. What warranty is typically available?
Warranty terms depend on the supplier. Most professional industrial automation distributors provide a functional warranty for New Surplus and professionally refurbished modules following documented inspection and operational testing.
