Description
Product Introduction & Engineering Value
Cabinet space is expensive, and long field wiring runs are often responsible for commissioning delays and intermittent faults. The Allen-Bradley 1732E-16CFGM12 addresses both issues by moving digital I/O directly onto the machine, reducing wiring complexity while improving diagnostic visibility.
As part of the ArmorBlock EtherNet/IP family, the module combines a built-in EtherNet/IP adapter with sixteen software-configurable digital channels inside a fully sealed housing. It is intended for harsh industrial environments where moisture, vibration, washdown, and mechanical shock make conventional cabinet-mounted I/O less practical.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 1732E-16CFGM12 |
| Product Family | ArmorBlock 1732E |
| Product Type | EtherNet/IP Distributed Digital I/O Module |
| Communication Protocol | EtherNet/IP |
| Total Configurable I/O | 16 Points |
| I/O Type | Software Configurable Digital Input / Output |
| Input Voltage | 24 VDC |
| Input Voltage Range | 11…30 VDC |
| Output Type | PNP (Sourcing), Electronically Protected |
| Maximum Output Current | 0.5 A per Output |
| Maximum Module Output Current | 8 A |
| Network Connector | D-Coded M12 Ethernet |
| I/O Connectors | A-Coded M12 |
| Protection Rating | IP67 / IP69K |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | Up to 95%, Non-Condensing |
Field Application & The “Trench” Experience
An automotive body shop was experiencing intermittent sensor failures on a robotic fixture. Every production stop triggered a lengthy troubleshooting process because dozens of discrete I/O cables ran from the control cabinet across the machine.
During a scheduled shutdown, engineers replaced the conventional terminal blocks with a 1732E-16CFGM12 mounted directly on the fixture. Wiring length was reduced significantly, commissioning became faster, and built-in EtherNet/IP diagnostics quickly identified a damaged proximity sensor during the next maintenance event instead of requiring hours of cable tracing.
Typical application scenarios include:
- Automotive welding fixtures with distributed sensors
- Conveyor accumulation zones
- Packaging machines with multiple photoelectric sensors
- Material handling equipment using decentralized field I/O

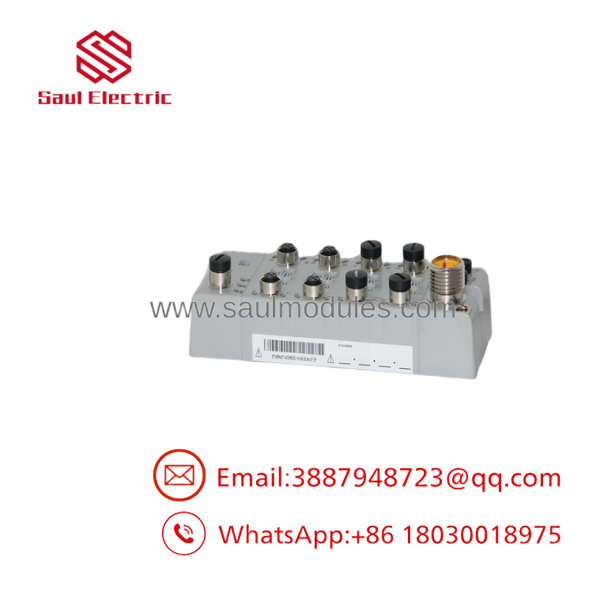

- 1732E-16CFGM12

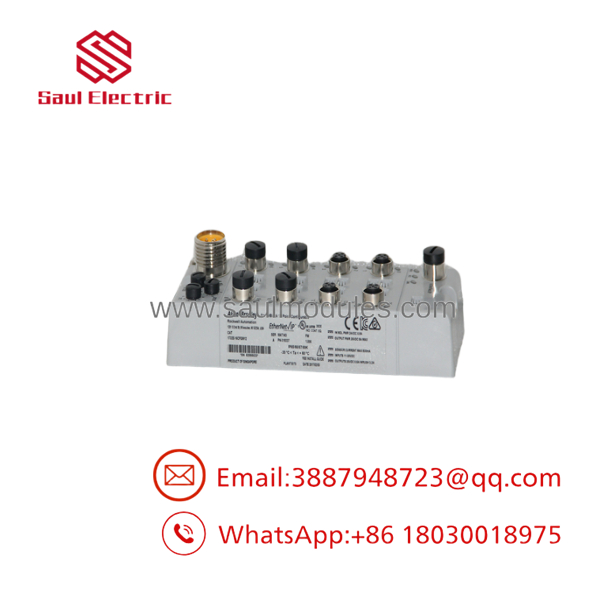

- 1732E-16CFGM12
Transparency SOP: QA & Testing
Every New Surplus or professionally Refurbished 1732E-16CFGM12 completes a documented verification process.
- Verify catalog number, hardware revision, and identification labels.
- Inspect the die-cast housing, M12 connectors, and sealing surfaces.
- Power the module with a regulated 24 VDC supply.
- Verify EtherNet/IP communication and successful device discovery.
- Test all sixteen configurable I/O channels using calibrated digital simulators.
- Confirm LED diagnostics, network status, and output protection functions.
- Package in anti-static, shock-resistant materials with complete traceability.
The Veteran’s Tech Trap Guide
⚠️ Don’t assume every channel is an input. The 1732E-16CFGM12 uses software-configurable I/O, so each point must be assigned correctly during commissioning. Incorrect configuration is a common source of startup delays.
⚠️ Protect every unused M12 connector. Missing sealing caps allow moisture to enter the connector, eventually causing corrosion and intermittent communication faults despite the module’s IP67/IP69K rating.
PRO TIP: Verify the module’s electronic current limits before connecting multiple inductive loads. Although each output is electronically protected, exceeding the module’s total output current rating can generate nuisance shutdowns.
PRO TIP: If Device Level Ring (DLR) redundancy is required, confirm that the selected catalog number supports dual-port networking. Some 1732E variants differ in network topology and diagnostic capabilities.
Dynamic FAQ
Q1. What is the primary purpose of the 1732E-16CFGM12?
The 1732E-16CFGM12 is an on-machine EtherNet/IP distributed I/O module that provides 16 configurable digital input/output channels, allowing field devices to connect directly to the industrial Ethernet network without returning every signal to a control cabinet.
Q2. Are all sixteen channels configurable?
Yes. Each of the 16 points can be configured through software as either a digital input or a digital output, providing flexibility during machine design and commissioning.
Q3. Is the module suitable for washdown environments?
Yes. The module features a sealed housing with IP67/IP69K environmental protection, making it suitable for demanding industrial environments when the specified connectors and sealing accessories are installed correctly.
Q4. Does the module support EtherNet/IP diagnostics?
Yes. The ArmorBlock 1732E platform provides network diagnostics and LED status indicators to simplify commissioning and troubleshooting. Diagnostic capabilities vary slightly between catalog number variants.
Q5. How is New Surplus authenticity verified?
Every module is inspected for catalog number, connector condition, enclosure integrity, EtherNet/IP communication, I/O functionality, and successful power-up diagnostics before shipment.
Q6. Is the 1732E-16CFGM12 still available?
The original 1732E-16CFGM12 has been discontinued, while newer ArmorBlock 1732E variants remain available for many applications. Existing systems are typically supported using New Surplus, professionally Refurbished, or repaired units.
