Allen-Bradley 1394C-AM75-IH 75A High-Output Axis Module

Description

Product Introduction

The Allen-Bradley 1394C-AM75-IH is a high-power 75-Amp axis module designed for the 1394 Digital AC Multi-Axis Servo System. Operating on a shared 530–680 VDC common bus supplied by the system system/power module (1394C-SJTxx series), it provides high-dynamic torque and precise position/velocity regulation for heavy-duty brushless servo motors (such as 1326AB, 8450, or MPL series).

Featuring the “IH” (Insulated Header) high-current output design, the 1394C-AM75-IH handles high thermal loads and aggressive peak acceleration currents. Mounted directly onto the 1394 system mounting rack, it connects directly into the shared DC bus, ground plane, and internal communication ribbon backplane, minimizing cabinet footprint and eliminating individual drive power wiring.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 2:30 AM on a automotive stamping line. The main robot feeder arm experiences an overcurrent fault (Axis 2 Overcurrent / Power Structure Fault) due to a shorted internal power stage in an old axis drive. The maintenance team pulls the side mounting screws, unplugs the IH motor power header and encoder feedback connector, slides out the failed unit, and drops in a pre-tested 1394C-AM75-IH module onto the shared system bus. Within minutes, power is restored, and the press line resumes stamping without needing a complete drive cabinet re-tune.

• Automotive Stamping & Robotics – High-Inertia Transfer Arms – Drives heavy-payload AC servo motors requiring up to 75A peak acceleration bursts.
• Packaging & Palletizing – Multi-Axis Motion Systems – Operates seamlessly on a shared DC bus alongside smaller axis modules (AM04 / AM07 / AM50) to optimize system energy usage.
• Metal Forming & CNC Gantry Cutting – High-Torque Spindle / Feed Drives – Provides precise velocity holding under heavy cyclic cutting loads.

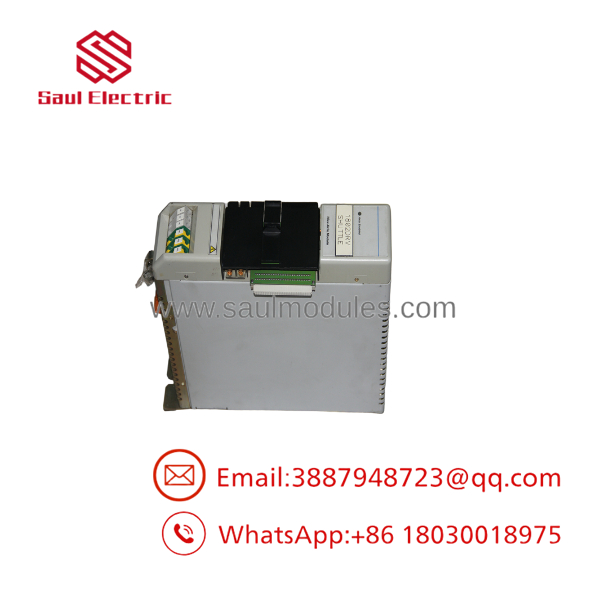

1394C-AM75-IH

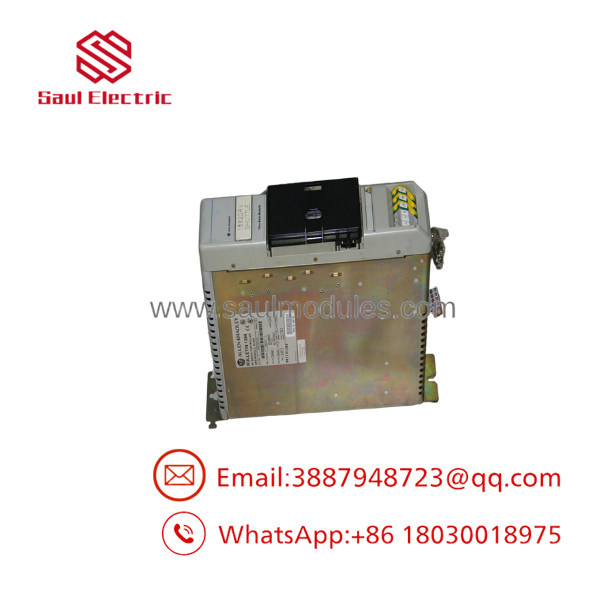

1394C-AM75-IH

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on live Allen-Bradley 1394 Multi-Axis system racks.

1. Inbound Mechanical & Bus Audit: Microscopic inspection of high-current DC bus sliding contacts, IH terminal header block, cooling fan bearings, and power IGBT module thermal paste.
2. DC Bus Insulation & IGBT Diode Check: High-voltage Megger test (1000V DC) across the +BUS/-BUS terminals to chassis ground and meter checks on all six inverter transistor legs.
3. Live 1394 Rack Power-Up Test: Mounted into a live 1394C system rack with an SJT10/SJT20 system module; verified 600V DC bus charging and pre-charge relay timing.
4. Full-Load Servo Motor Run Test: Driven under load on an AB 1326AB servo motor test bench; verified resolver/encoder feedback tracking, current loop stability, and zero phase imbalance.
5. ESD Protection & Packaging: Cleaned, sealed in heavy static-shielding bags, and packaged inside custom shock-proof foam crates.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Never Pull or Insert Module Under DC Bus Power!

  The 1394 system operates on a 530–680 VDC common bus with large filter capacitors. Always disconnect main 3-phase line power from the SJT system module and wait for the “DC BUS CHARGED” LED on the front cover to turn completely OFF (measure below 50V DC across the bus check points) before unbolting or seating the 1394C-.

• ❗ Verify “IH” Header vs. Standard Pin Terminal Wiring

  The “-IH” suffix denotes an Insulated Header style motor connector. Ensure your field motor power cables match the insulated header plug style; forcing older non-IH crimp style connectors onto an IH header will damage the terminal pins or cause high-resistance arc faults under 75A peak loads.

• ⚠️ Check Thermal Dissipation & Fan Airflow

  The 75A axis module generates substantial heat during continuous duty cycles. Ensure the cooling fans on the bottom/top of the module turn freely and that the cabinet has at least 100mm (4 inches) of clearance above and below the 1394 rack for proper convection.

• ❗ Match Motor Parameters in GML / RSLogix 5000

  When swapping a 1394C- into an existing system, ensure the controller motor database matches the continuous/peak current limits of the connected motor. Placing a 75A module on a small motor without configuring software current limits risks burning out motor windings during a mechanical jam.

Frequently Asked Questions (FAQ for Conversion)

Q: Can I replace a 1394- with a4C-?

A: Yes. The “C” designation represents the later series revision with enhanced internal noise immunity and component upgrades, while the “-IH” denotes the insulated header connector. Mechanical mounting dimensions and electrical ratings are fully backward compatible.

Q: Is the feedback card included with the4C-?

A: No. The feedback personality module (such as a 1394-GMC series option card or encoder/resolver interface board) is typically transferred from your old module or ordered separately depending on your motor feedback type.

Q: Is this module compatible with both 1394-SJT10 and 1394-SJT20 system modules?

A: Yes. The4C- connects to any standard 1394 common-bus system rack powered by SJT05, SJT10, or SJT20 power/system modules, provided the total system power rating is not exceeded.

Q: Are these modules original Allen-Bradley hardware?

A: Yes. The 1394 system has been discontinued by Allen-Bradley/Rockwell Automation. We maintain inventory of high-grade New Surplus (unused factory spares) and fully bench-tested, refurbished original4C- modules.

Q: What warranty comes with this servo axis module?

A: Every Allen-Bradley4C- module includes a full 12-month replacement warranty. If the unit experiences power stage failure, current sensing errors, or feedback faults within one year, we replace it immediately from available stock.
