Product Introduction & Engineering Value
When an SLC 500 system develops intermittent backplane faults, replacing I/O modules alone rarely solves the problem. Bent backplane connectors, damaged slot contacts, or chassis wear can interrupt communication across multiple modules even though each individual module tests normally.
The Allen-Bradley 1746-A7 is a 7-slot modular chassis designed for the SLC 500 platform. It provides mechanical support, distributes backplane power, and enables high-speed communication between the processor, power supply, and installed I/O modules. Although the SLC 500 family has reached the end of its commercial lifecycle, the 1746-A7 remains widely used in manufacturing, water treatment, and process industries that continue to operate legacy automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 1746-A7 |
| Product Family | SLC 500 (Bulletin 1746) |
| Product Type | Modular PLC Chassis |
| Number of Slots | 7 |
| Mounting Method | Back-Panel Mount |
| Backplane Current (5.1 VDC) | 10 A |
| Backplane Current (24 VDC) | 2.88 A |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5–95% (Non-condensing) |
| Dimensions (W × H × D) | 282 × 171 × 145 mm (11.1 × 6.73 × 5.71 in.) |
| Approximate Weight | 1.1 kg (2.4 lb) |
| Compatible Modules | SLC 500 processors, 1746 I/O modules, compatible 1746 power supplies |
Field Application & The “Trench” Experience
A wastewater pumping station experienced random processor faults every few weeks. Maintenance personnel replaced the CPU, power supply, and several digital I/O modules, yet communication errors continued to appear on different slots without a consistent pattern.
During a planned outage, technicians inspected the 1746-A7 chassis and discovered oxidation on several backplane contacts caused by years of exposure to humidity. After installing a replacement chassis and reseating all modules, the intermittent faults disappeared without any software modifications.
Typical application scenarios include:
- Municipal water and wastewater control panels
- Packaging and conveyor automation
- Material handling systems using SLC 500 PLCs
- Process control cabinets in food and beverage facilities

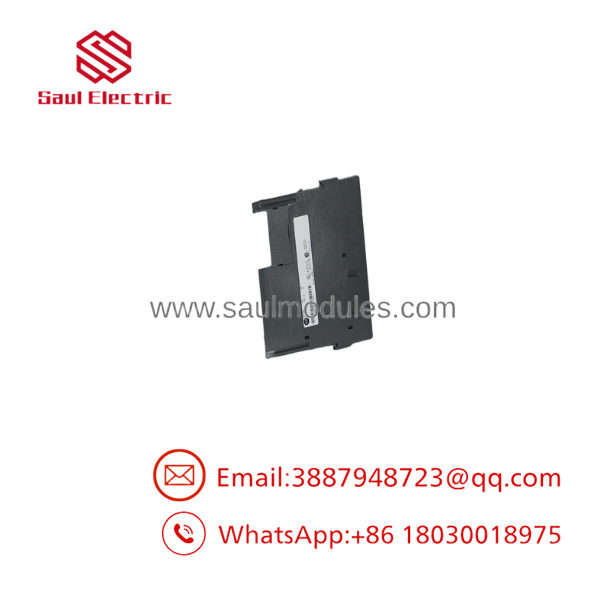

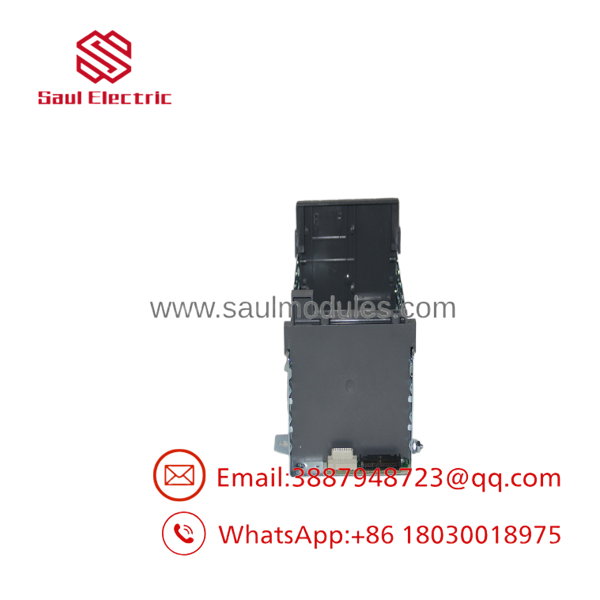

- 1746-A7
- 1746-A7

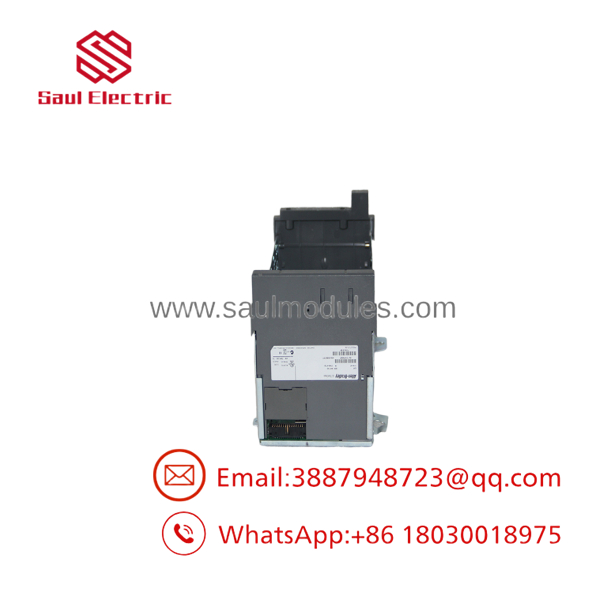

- 1746-A7
Transparency SOP: QA & Testing
Every New Surplus or professionally Refurbished 1746-A7 undergoes documented inspection before shipment.
- Verify the catalog number, hardware revision, and chassis identification.
- Inspect all seven backplane connectors for bent pins, corrosion, and mechanical wear.
- Check the mounting frame for deformation and damaged grounding points.
- Install a compatible SLC 500 power supply and processor to verify backplane communication.
- Test each slot using known-good I/O modules.
- Confirm power distribution across the backplane.
- Package in anti-static, impact-resistant materials with complete traceability.
The Veteran’s Tech Trap Guide
⚠️ Don’t overlook the chassis during troubleshooting. When multiple slots report intermittent communication faults, the backplane is often the root cause—not the processor or I/O modules.
⚠️ Inspect the module guides carefully. A module that isn’t fully seated can cause communication errors, backplane faults, or unexpected processor major faults.
PRO TIP: Label every module before removal. Although slot assignments are documented in the PLC program, reinstalling analog or specialty modules in the wrong slot can increase commissioning time.
PRO TIP: If you’re migrating an SLC 500 system, verify chassis dimensions before ordering a replacement. The 1746-A7 occupies less cabinet space than the 10-slot and 13-slot chassis, and mounting holes are not interchangeable.
Dynamic FAQ
Q1. What is the primary function of the 1746-A7?
The 1746-A7 is a 7-slot SLC 500 chassis that houses the PLC power supply, processor, and I/O modules while providing the backplane for communication and power distribution.
Q2. Which SLC 500 modules are compatible with the 1746-A7?
The chassis supports 1746-series processors, digital and analog I/O modules, communication modules, and compatible 1746 power supplies, provided the overall system configuration complies with Rockwell Automation guidelines.
Q3. Can multiple SLC chassis be connected together?
Yes. Up to three SLC chassis can be interconnected using 1746 chassis interconnect cables, allowing expansion to a maximum of 30 local module slots.
Q4. Is the 1746-A7 still manufactured?
No. Rockwell Automation discontinued the 1746-A7 effective March 31, 2024, and no direct Rockwell replacement has been announced. Existing systems are typically supported using New Surplus, professionally Refurbished, or repaired hardware.
Q5. How is New Surplus authenticity verified?
Each chassis is inspected for catalog number accuracy, backplane integrity, connector condition, slot functionality, grounding continuity, and successful operation with compatible SLC 500 hardware before shipment.
Q6. What warranty is typically available?
Warranty terms vary by supplier. Most industrial automation distributors provide a functional warranty for New Surplus and professionally refurbished 1746-A7 chassis after documented inspection and operational testing.
