Description
Product Introduction & Engineering Value
Not every motion application requires a dedicated motion controller. Many legacy machines continue to achieve accurate positioning using the Allen-Bradley 1746-HSRV, especially where a single servo axis performs indexing, cutting, feeding, or positioning tasks within an SLC 500 control system.
Designed for the SLC 500 platform, the 1746-HSRV executes motion independently of the PLC scan once a command is initiated. It supports absolute moves, incremental moves, speed control, homing, and blended motion profiles while processing encoder feedback at high speed for accurate closed-loop positioning.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 1746-HSRV |
| Product Family | SLC 500 |
| Product Type | Servo Control Module |
| Motion Axes | Single Axis |
| Motion Types | Absolute, Incremental, Speed, Home, Blend |
| Velocity Output | Programmable ±10 VDC Analog |
| Encoder Feedback | Incremental Quadrature Encoder |
| Maximum Encoder Frequency | 300 kHz |
| Fast Inputs | 3 × 24 VDC |
| Fast Outputs | 1 × 24 VDC |
| Module Update Time | 2 ms |
| Backplane Current | 300 mA @ 5 VDC |
| Compatible CPUs | SLC 5/03 (FRN 5.0+), SLC 5/04, SLC 5/05 |
| Required Accessories | 1746-HT Termination Panel and 1746-HCA Cable |
Field Application & The “Trench” Experience
A tube-cutting machine repeatedly missed its cut position by nearly 1 mm after several hours of production. The servo amplifier, encoder, and mechanical transmission all passed inspection, leading technicians to suspect backlash.
The actual problem turned out to be intermittent encoder feedback caused by a damaged cable between the encoder and the 1746-HSRV. Because the module continuously monitors encoder feedback at high speed, replacing the damaged cable restored positioning accuracy without changing servo tuning or replacing the drive.
Typical applications include:
- Flying shear and cut-to-length systems
- Rotary knife positioning
- Packaging machine indexing
- Hydraulic positioning systems using analog servo valves
- Conveyor registration and synchronized feeding
Transparency SOP: QA & Testing
Each New Surplus or professionally Refurbished 1746-HSRV is validated using a documented inspection procedure.
- Verify catalog number, hardware revision, and identification labels.
- Inspect PCB assemblies, edge connector, and D-shell communication connector.
- Verify backplane communication in a compatible SLC 500 chassis.
- Test encoder inputs using a programmable pulse generator.
- Measure the ±10 V analog velocity command output.
- Verify fast digital inputs and outputs.
- Execute sample motion commands including homing, incremental moves, and speed commands before final packaging.

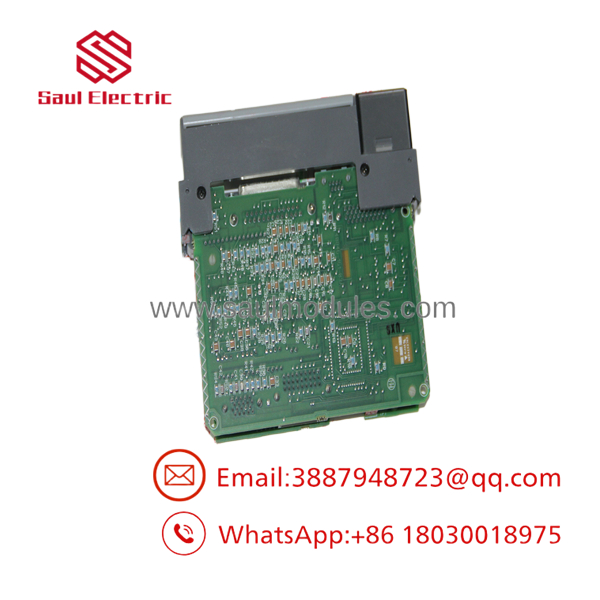

- 1746-HSRV

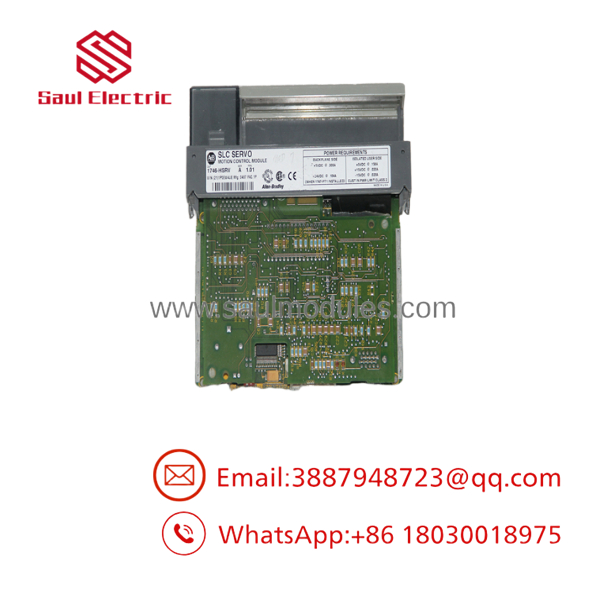

- 1746-HSRV
The Veteran’s Tech Trap Guide
⚠️ Install the module close to the processor. Rockwell specifically recommends placing the 1746-HSRV as near the SLC processor as possible to minimize communication delays and simplify installation.
⚠️ Don’t overlook firmware compatibility. The module requires an SLC 5/03 FRN 5.0 or later, SLC 5/04, or SLC 5/05 processor. Earlier processor firmware will not support the servo instruction set.
PRO TIP: Always back up the motion profile before replacing the module. Motion segments, acceleration values, homing parameters, and blending settings can require considerable commissioning time if they are lost.
PRO TIP: Encoder noise is often mistaken for servo instability. Before replacing the module, inspect encoder shielding, cable routing, and grounding. High-frequency electrical noise can produce erratic positioning even when the servo hardware is functioning correctly.
Dynamic FAQ
Q1. What does the 1746-HSRV do?
The 1746-HSRV is a single-axis closed-loop servo control module for the SLC 500 PLC family. It generates an analog velocity command while processing encoder feedback to perform accurate positioning and speed control.
Q2. Which SLC processors support this module?
The module is compatible with SLC 5/03 (FRN 5.0 or later), SLC 5/04, and SLC 5/05 processors. It is not supported by earlier SLC processor revisions.
Q3. Does the module control multiple servo axes?
No. The 1746-HSRV is designed for one closed-loop servo axis. Machines requiring multiple coordinated axes typically use multiple modules or migrate to newer motion control platforms.
Q4. What accessories are required?
The module normally interfaces through the 1746-HT Termination Panel and 1746-HCA connection cable, which simplify encoder, servo drive, and fast I/O wiring.
Q5. How is New Surplus authenticity verified?
Each unit is inspected for hardware integrity, backplane communication, encoder processing, analog output accuracy, fast I/O operation, and successful motion command execution before shipment.
Q6. Is the 1746-HSRV still available?
The 1746-HSRV is a legacy SLC 500 motion module that is no longer in active production. It is commonly supplied as New Surplus, professionally Refurbished, or repaired inventory to support existing SLC 500 motion control systems.
