Product Introduction & Engineering Value
Not every variable frequency drive is intended for high-performance motion control. The Allen-Bradley 22C-D060A103 belongs to the PowerFlex 400 family, which is specifically engineered for variable-torque loads such as centrifugal pumps, cooling tower fans, and air-handling equipment where energy efficiency and stable operation take priority over dynamic positioning.
The drive integrates motor control, PID regulation, RS-485 communications, and application-specific functions into a compact package. For facility automation and process utilities, it reduces the need for external controllers while providing dependable motor speed regulation across changing load conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 22C-D060A103 |
| Product Family | PowerFlex 400 |
| Drive Type | Variable Frequency AC Drive |
| Input Voltage | 480 VAC, 3-Phase |
| Output Current | 60 A |
| Motor Rating | 30 kW (40 HP) |
| Frame Size | D |
| Enclosure | IP30 / NEMA 1 / UL Type 1 |
| Human Interface | Fixed Keypad |
| Built-in Communication | RS-485 |
| Brake Chopper | Not Included (No Brake IGBT) |
| Typical Applications | Fans, Pumps, HVAC, Water & Wastewater Systems |
Field Application & The “Trench” Experience
A municipal water treatment plant experienced repeated pressure fluctuations in its high-lift pumping station. Operators initially suspected a faulty pressure transmitter because the process values oscillated every few minutes.
After reviewing the drive diagnostics, engineers found that the original VFD had begun producing unstable output frequency under varying loads. Replacing the 22C-D060A103 restored smooth motor acceleration and stable PID regulation. Pump pressure returned to normal without changing the PLC program or field instrumentation.
Typical application scenarios include:
- Chilled water circulation pumps in commercial HVAC systems
- Cooling tower fan speed regulation
- Municipal water distribution booster pumps
- Irrigation pumping stations
- Ventilation systems in mining and industrial facilities
Transparency SOP: QA & Testing
Each New Surplus or professionally Refurbished 22C-D060A103 undergoes a documented verification process before shipment.
- Verify catalog number, hardware revision, and product identification.
- Inspect the power section, control board, keypad, cooling fan, and terminal blocks.
- Perform insulation and DC bus health checks.
- Power the drive using a controlled test supply.
- Verify keypad operation, RS-485 communication, and parameter storage.
- Run the drive with a test motor under multiple speed references.
- Complete final inspection and package in ESD-safe, shock-protected materials.

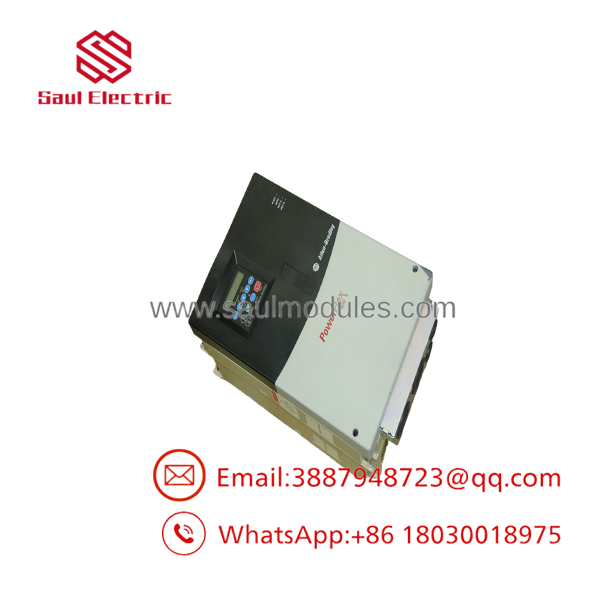

- 22C-D060A103
The Veteran’s Tech Trap Guide
⚠️ Don’t install this drive where rapid braking is required. The 22C-D060A103 does not include an internal brake IGBT. Applications involving high-inertia loads or frequent deceleration may require a different drive model with dynamic braking capability.
⚠️ Check the motor’s full-load current—not just horsepower. Motors with identical horsepower ratings can have different nameplate currents. Incorrect parameter settings may result in nuisance overload trips.
PRO TIP: Before replacing an existing PowerFlex 400, upload and save all drive parameters. Restoring the original configuration significantly reduces commissioning time, especially when PID loops and application macros have been customized.
PRO TIP: Inspect the cabinet cooling path during replacement. Dust accumulation on the heat sink or blocked air filters often causes thermal faults that are incorrectly attributed to drive failure.
Dynamic FAQ
Q1. What is the primary application for the 22C-?
The drive is designed for variable-torque applications, including centrifugal pumps, HVAC systems, cooling tower fans, and industrial ventilation equipment. It is optimized for energy-efficient motor control rather than high-performance positioning.
Q2. Does the 22C- include an internal braking transistor?
No. This catalog number is supplied without an internal Brake IGBT, making it unsuitable for applications requiring frequent dynamic braking unless external solutions are used.
Q3. Which communication interface is built into the drive?
The drive includes an integrated RS-485 communication port and supports additional networking options through compatible communication accessories.
Q4. Is this drive suitable for constant-torque conveyor applications?
Although it can operate many conveyor systems, the PowerFlex 400 is primarily intended for fan and pump duty. For demanding constant-torque or high-dynamic applications, other PowerFlex families may be a better choice.
Q5. How is New Surplus authenticity verified?
Each drive is inspected for catalog number, hardware revision, terminal integrity, cooling system condition, keypad operation, communication performance, and full functional motor testing before shipment.
Q6. What warranty is typically available?
Warranty terms depend on the supplier. Most professional industrial automation distributors provide a functional warranty for New Surplus and professionally refurbished drives following documented inspection and operational testing.
