Allen-Bradley 2711P-RDT10C PanelView Plus 1000 Color Touch Display

Description

Product Introduction

The Allen-Bradley 2711P-RDT10C is a 10.4-inch color touch display module engineered for the modular PanelView Plus and PanelView Plus 6 1000 series graphic terminals. Acting as the visual and touch interface component, this module snaps directly onto a 2711P logic module (or 2711P power supply/logic assembly). It features a 640 x 480 VGA active-matrix color TFT display, delivering wide viewing angles and clear visualization for complex process graphics, trend charts, and alarm screens.

Built for modular maintenance, the 2711P-RDT10C lets plant engineers swap out damaged screens or worn touch digitizers without purchasing a whole new HMI system or losing saved application logic. Its rugged front bezel maintains NEMA 4X, 12, and 13 ratings when properly installed in an enclosure cutout, withstanding harsh industrial washdowns, chemical exposure, and continuous touch operation.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

An operator driving a forklift inside a food processing plant bumps a pallet stack, sending a crate corner into the front of a PanelView Plus 1000 panel. The glass touch layer shatters. The underlying logic module and Ethernet network are completely intact, but operators cannot acknowledge alarms or start the sanitization pumps. Buying a full complete terminal takes days to source and forces you to reload firmware and application files. Swapping out just the broken display module for a 2711P-RDT10C takes under 10 minutes: unbolt the logic engine from the back, clip it onto the new display module, tighten the captive screws, and bolt the assembly back into the panel door.

• Food & Beverage Processing – Washdown Packaging Lines – Features a NEMA 4X gasketed front bezel designed to resist daily chemical washdowns and moisture ingress.
• Automotive Body & Assembly – Main Cell Control Stations – Provides an expansive 10.4-inch touch surface for viewing multi-robot interlocks and station fault diagnostics.
• Pharmaceutical Manufacturing – Batching & Cleanroom Stations – Smooth membrane face allows fast wipe-downs and precise touch responsiveness for gloved operators.
• Water & Wastewater Treatment – Scada Client Field Panels – Delivers clear VGA visibility for monitoring tank levels, pump speeds, and real-time flow trends.

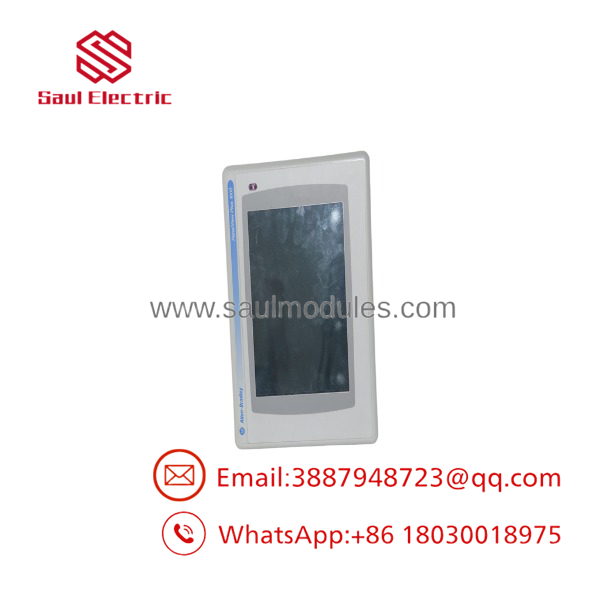

2711P-RDT10C

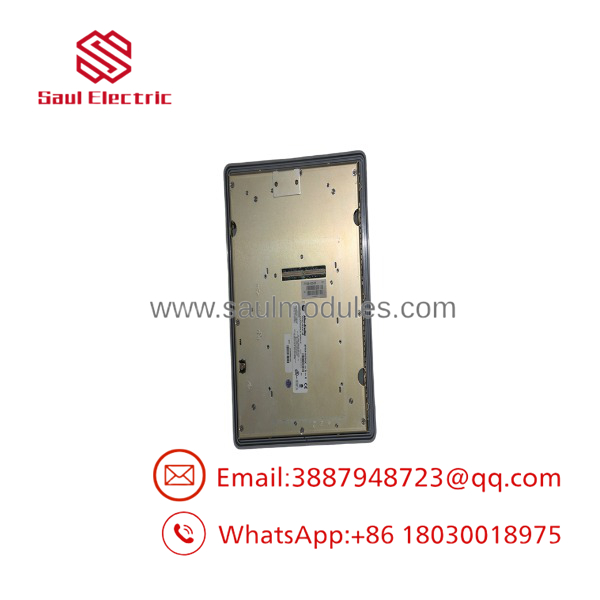

2711P-RDT10C

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Allen-Bradley racks before they leave our warehouse.

1. Inbound Inspection: Every display module undergoes a thorough visual check for screen scratches, cracks in the touch digitizer membrane, frame warping, and missing rear mounting clips.
2. Live Rig Testing: The 2711P- is mated to an active 2711P-RP logic module powered by a 24V DC supply and booted into Windows CE / FactoryTalk View ME environment.
3. Touch Grid & Display Checks: We run a multi-point touch calibration test across all corners and center zones, verifying zero dead spots, crisp touch response, and uniform CCFL backlight brightness.
4. Thermal & Vibration Burn-In: The assembled module sits on a test bench under power for 4 hours to verify screen stability without backlight flickering, vertical lines, or thermal drift.
5. Final QC & Protective Packaging: The display glass is covered with a static-shielding protective film, sealed in an ESD bag, and suspended in heavy-duty foam packaging.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Logic Module Interlocking Clips: When attaching your existing logic module to the back of the 2711P-, ensure the plastic locking tabs engage completely before tightening the captive screws. Loose ground clips between the logic board and display chassis will cause intermittent display flicker or touch digitizer disconnect faults.
• ❗ Touch Screen Calibration After Replacement: Even though the runtime program lives on the logic module, swapping the physical display module changes the resistive grid tolerances slightly. Always run the touch screen calibration utility in the terminal maintenance menu right after installation to ensure touch accuracy.
• ⚠️ Backlight Bulb Version Mismatches: If the screen goes dim after years of use, the internal CCFL backlight bulb can be replaced (catalog 2711P-RL10C). However, take note of the display module series letter (Series A vs Series D). Later LED-backlit revisions do not use CCFL lamps and are non-replaceable.
• ❗ Don’t Overtighten Mounting Clamps: When securing the assembled terminal into your enclosure cutout using the perimeter panel clamps, tighten them evenly in an alternating pattern. Over-torquing the mounting screws warps the aluminum bezel frame, causing permanent “ghost touches” on the resistive digitizer.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the 2711P- a complete HMI terminal or just a display screen?

A: It is a Display Module only. It includes the front bezel, 10.4-inch color screen, touch screen digitizer, and internal backlight. To make a functioning terminal, you must attach a compatible PanelView Plus logic module (e.g., 2711P-RP1, 2711P-RP8D, or 2711P-RP6) and power module.

Q: Will the 2711P- work with both PanelView Plus and PanelView Plus 6 terminals?

A: Yes. The 2711P- display module is backward and forward compatible with both standard PanelView Plus (700-1500) and PanelView Plus 6 (700-1500) logic modules.

Q: What is the difference between the 2711P- and the 2711P-RDK10C?

A: Input method. The 2711P- features a Touch-only screen interface, whereas the 2711P-RDK10C features a Keypad-only interface with physical function keys around the screen bezel.

Q: Can I replace just the touch glass digitizer if it gets scratched or damaged?

A: Rockwell Automation does not sell the glass digitizer separately. The 2711P- display module is the official OEM factory-assembled replacement unit designed to restore screen, touch, and bezel functions simultaneously.

Q: What warranty coverage do you provide on surplus display modules?

A: We back all New Surplus and reconditioned 2711P- display modules with a full 12-month replacement warranty from the invoice date. If the display or touch grid fails under normal operating conditions within a year, we send a replacement or issue a full refund.
