Finding a reliable analog card to maintain legacy SLC 500 chassis often comes down to channel density and DIP switch layout. The Allen-Bradley 1746-NIO4 packs dual analog inputs and dual analog outputs into a single chassis slot, saving rack space in crowded control enclosures.
Engineers rely on this combination card to feed variable frequency drives and read flow transmitters without installing separate input and output modules. It integrates directly into standard SLC 500 backplanes for dependable control loop execution.
Technical Specifications
| Specification | Parameter Value |
| Backplane Current (5V DC) | 55 mA |
| Backplane Current (24V DC) | 145 mA |
| Input Channels | 2 differential channels |
| Output Channels | 2 single-ended channels |
| Input Signal Ranges | ±10V DC, 0-10V DC, 0-20 mA, 4-20 mA |
| Output Signal Ranges | ±10V DC, 0-10V DC, 0-20 mA, 4-20 mA |
| Converter Resolution | 16-bit (inputs), 14-bit (outputs) |
| Input Impedance | 1 MΩ (voltage), 250 Ω (current) |
| Isolation | 500V DC channel-to-backplane |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Field Application & The “Trench” Experience
During a scheduled shutdown at a water treatment plant, an old chemical dosing panel suffered an analog card failure on its main chlorine feed loop. The plant couldn’t restart without local closed-loop flow feedback. Swapping in a replacement 1746-NIO4 got the loop back online in under twenty minutes, pulling raw 4-20 mA signals from the electro-magnetic flowmeter while simultaneously sending a 0-10V speed command to the dosing pump drive.
- Blast Furnace Cooling Water Loop: Monitoring inlet pressure differential while commanding proportional bypass control valves.
- Extruder Barrel Heat Exchanger Control: Reading thermocouple transmitter 4-20 mA loops and sending speed reference signals to secondary oil recirculation pumps.
- Wastewater Clarifier Sludge Scraper Drive: Tracking motor load torque feedback while driving a hydraulic proportional valve.

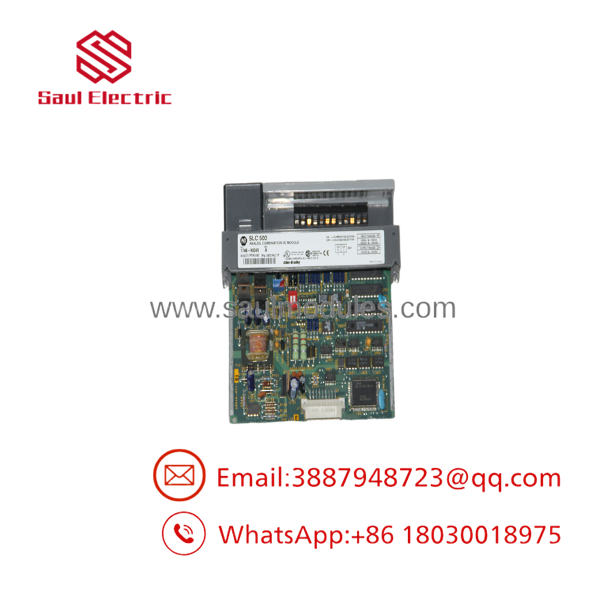

- 1746-NIO4

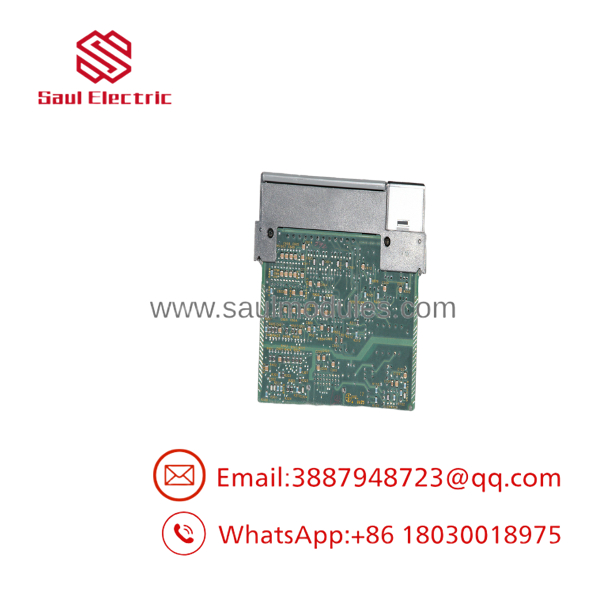

- 1746-NIO4
Transparency SOP: QA & Testing
- Visual Inspection: Detailed board-level audit checking for swollen caps, trace corrosion, damaged DIP switches, and terminal block wear.
- Power-On Test: Cold-rack insertion followed by backplane powering to monitor current draw on both 5V DC and 24V DC lines.
- Signal Calibration: Injecting precise 4.00 mA and 20.00 mA reference signals across all input channels via a calibrated loop calibrator.
- Output Verification: Measuring voltage drop and current accuracy across load resistors while toggling word data in RSLogix 500.
- Thermal Burn-In: Running active analog loop feedback inside an environmental testing chamber for 12 hours.
The Veteran’s Tech Trap Guide
- ⚠️ DIP Switch Pitfall: Input range configurations (voltage vs. current) rely on physical DIP switches on the circuit board inside the module plastic housing. If you install a replacement card without checking switch positions against the failed unit, you risk blowing out the internal current-sensing resistor or reading invalid data registers.
- PRO TIP: External 24V DC Requirement: The 1746-NIO4 draws power from the 24V DC backplane rail. Ensure your SLC power supply unit (like a 1746-P1 or P2) has sufficient 24V DC headroom left, especially when driving dual 4-20 mA current loops into high-impedance field instruments.
- ⚠️ Floating Inputs: Unused analog inputs should be jumpered to terminal common. Floating input pins pick up ambient electromagnetic interference inside motor control centers, causing unwanted noise in RSLogix controller tags.
Dynamic FAQ
Q: Do I need to power down the SLC 500 rack before swapping a 1746-NIO4 card?
A: Yes. SLC 500 chassis do not support Removal and Insertion Under Power (RIUP). Inserting or removing the module while the backplane is energized will damage the card edge connector or backplane traces.
Q: How do I select between 4-20 mA and 0-10V DC modes on the inputs?
A: Configuration is set via physical DIP switch banks located on the module internal circuit board. Refer to the hardware manual for the switch matrix prior to inserting the module into the rack.
Q: Are replacement units fully bench-tested before dispatch?
A: Every module undergoes bench-level verification using precision loop calibrators and live SLC 500 rack testing to guarantee signals meet original factory specifications.
Q: What coverage comes standard with this module?
A: Units are backed by full functional testing certification and a standard replacement warranty to ensure seamless field installation.
