Description
Product Introduction
The Allen-Bradley 6181P series (part of the VersaView and Integrated Display Industrial Computer family) is an all-in-one industrial PC built for demanding control cabinet environments. Designed to run full Windows desktop operating systems alongside HMI/SCADA client applications like FactoryTalk View SE, Wonderware, or Ignition, the 6181P replaces traditional thin clients and separate PC-and-monitor setups with a unified, ruggedized panel unit.
Engineered with heavy-gauge aluminum front bezels, solid-state or shock-mounted hard drives, and industrial-grade touchscreens, the 6181P withstands high ambient temperatures, continuous vibration, and electrical noise. Available in various display sizes (12.1″, 15″, 17″, and 19″) and performance tiers (Performance and Advanced models), it provides extensive I/O options including dual Gigabit Ethernet ports, PCI/PCIe expansion slots, and multi-display outputs for local control desks and OEM machines.
Key Technical Specifications
| Parameter | Value |
| Catalog Series | 6181P (Integrated Display Industrial Computer) |
| Product Line | VersaView / Heavy-Duty Industrial Computers |
| Available Display Sizes | 12.1″, 15.0″, 17.0″, and 19.0″ Color TFT LCD |
| Display Resolution | 12.1″ (1024×768), 15″ (1024×768), 17″ (1280×1024), 19″ (1280×1024) |
| Operator Input | Resistive Touch Screen or Non-Touch Glass options |
| Processor Options | Intel Core i3 / i7 Dual/Quad Core, Intel Celeron |
| Operating System | Windows 10 IoT Enterprise, Windows 7 Pro, WES7 |
| Storage Options | Industrial-Grade SSD (64GB – 512GB+) or HDD |
| I/O Ports | 2x GbE LAN, 4x USB 3.0/2.0, 1x RS-232 COM, DisplayPort/DVI |
| Input Power | 100–240V AC or 18–32V DC (Model Dependent) |
| Enclosure Rating | NEMA 12, 4, 4X (Indoor), IP66 Front Bezel |
Application Scenarios & The “Trench” Experience
A main SCADA terminal supervising an automotive paint booth goes black when the commercial consumer-grade desktop PC mounted inside the cabinet suffers fan failure and thermal shutdown. The plant cannot track car body sequence tags or monitor spray oven temperatures. Replacing the consumer PC with a panel-mounted 6181P gives maintenance an IP66-rated front seal that keeps paint overspray and dust out of the electronics, while fanless/industrial cooling components handle continuous 24/7 plant operation without thermal throttling.
- Automotive Body & Paint Shops – Line-side SCADA Clients – Runs FactoryTalk View SE client sessions directly on the enclosure door for real-time tracking and interlocking.
- Pharmaceutical Cleanrooms & Batching – MES Interface Stations – Stainless/aluminum front bezel allows chemical wipes and seal integrity under frequent washdowns.
- Oil & Gas / Chemical Processing – Central Pump & Tank Utilities – Acts as an edge gateway running data logging and OPC UA servers alongside local screen displays.
- Food & Beverage Packaging Lines – OEE & Downtime Tracking – Rugged touchscreen interface allows gloved operators to log stoppage codes and review production trends.

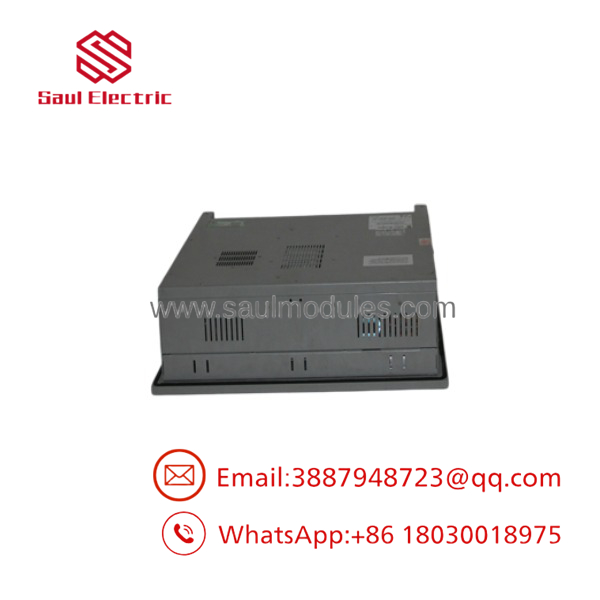

6181P

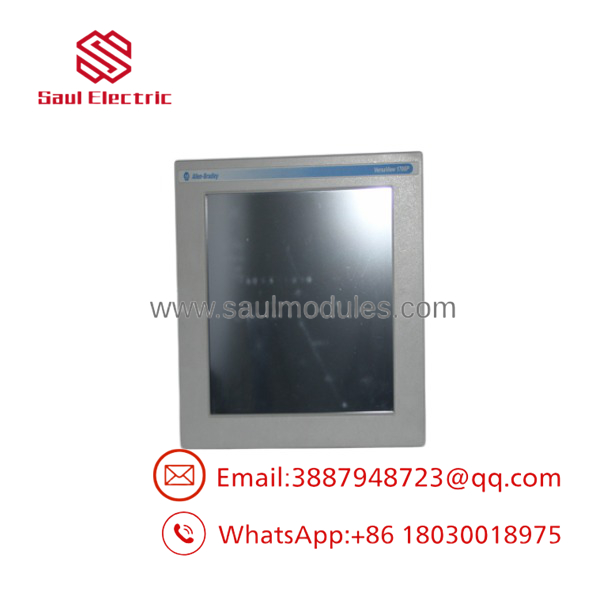

6181P
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual test benches before they leave our warehouse.
- Inbound Inspection: Every 6181P unit undergoes a visual check for bezel denting, screen scratches, intact rear chassis seals, and clean I/O port pins.
- Hardware Diagnostic Testing: The unit is powered up into BIOS/UEFI to test system RAM, CPU clock stability, storage drive SMART health, and CMOS battery voltage.
- Touch & Display Verification: We perform a full matrix calibration on the touch digitizer, verifying uniform backlighting without dead pixels, vertical line distortion, or blind spots.
- I/O & Network Stress Testing: Dual Ethernet ports are loop-tested for full Gigabit throughput, serial COM ports undergo loopback communication tests, and all USB ports are verified.
- Burn-In & Static Packaging: Units undergo a 4-hour thermal burn-in under high CPU load. They are then cleaned, screen-protected, wrapped in anti-static film, and packed in reinforced foam shipping boxes.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ AC vs. DC Model Designation: 6181P catalog numbers ending in “A” indicate AC input power (100–240 V AC), while numbers ending in “D” require 24 V DC power. Verify your cabinet’s power supply before wiring to avoid blowing internal power modules.
- ❗ Touch Driver Calibration Under Windows: When re-imaging or replacing the operating system on a 6181P, you must install the specific eGalax or Elo touch controller drivers provided by Rockwell Automation. Generic Windows HID touch drivers will lead to uncalibrated or unresponsive touch zones.
- ⚠️ Panel Cutout Differences Across Generations: Upgrading older 6181P Series A/B units to newer Series C/D/E models usually maintains the same cutout size, but depth behind the panel and rear clearance for PCI/PCIe expansion cards vary. Measure cable bend radius room before closing cabinet backplates.
- ❗ SSD vs. HDD In High-Vibration Panels: If your 6181P is mounted directly on a machine frame with high vibration (e.g., stamping presses or vibratory feeders), ensure the unit utilizes an industrial Solid-State Drive (SSD). Standard mechanical Hard Disk Drives (HDDs) will suffer premature head crashes in these environments.
Frequently Asked Questions (FAQ for Conversion)
Q: What is the difference between Allen-Bradley 6181P and 6181F computers?
A: The 6181P (Performance) series offers higher processing power, expandable RAM, display size options up to 19 inches, and PCI/PCIe expansion slots. The 6181F (Field-Mount / Compact) series is designed for lighter-duty or space-constrained mounting without full PCI expansion capability.
Q: Can I order the 6181P with a specific operating system pre-installed?
A: Yes. Units can be provided with clean factory images of Windows 10 IoT Enterprise, Windows 7, or non-OS configurations depending on your site’s software requirements.
Q: Are the internal storage drives and RAM field-upgradable on the 6181P?
A: Yes. The rear panel of the 6181P allows access to SO-DIMM memory slots, 2.5-inch SATA drive bays / mSATA slots, and PCI/PCIe extension risers without breaking the front NEMA seal.
Q: How do I identify my exact 6181P configuration from the part number?
A: The catalog structure encodes display size, processor type, power supply, and OS. For example, in 6181P-15TPXP/F, 15 = 15-inch display, T = Touchscreen, P = Performance class, and the trailing letters indicate AC/DC power and software options.
Q: What warranty coverage do you offer on surplus industrial PCs?
A: We back all New Surplus and reconditioned 6181P units with a full 12-month replacement warranty from the invoice date. If any hardware component fails under normal operating conditions within a year, we send a replacement or issue a full refund.
