Allen-Bradley 1747-L532 SLC 5/03 16K Controller

Description

Product Introduction

The Allen-Bradley 1747-L532 is the flagship 16K workhorse CPU of the SLC 5/03 family, slotting directly into Slot 0 of any modular 1746 chassis. Built to control standalone skids and mid-sized plant processes, this processor handles high-speed instruction execution while simultaneously managing serial and fieldbus networking commands.

Engineered as a massive step up from fixed-I/O units and entry-level 5/01 or 5/02 processors, the 1747-L532 features a built-in RS-232 channel that supports DF1 full-duplex, ASCII, and Modbus RTU master/slave protocols. This dual-channel capability allows process controls to run local PanelView HMIs on the DH-485 port while logging telemetry or communicating with a SCADA node over the serial link.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When a solid red “FLT” light hits an older SLC 5/03 processor on a critical packaging or water treatment line, your heart sinks. Memory corruption from a dead backup battery during a weekend shutdown usually means the controller lost its ladder program entirely. Having a tested 1747-L532 CPU ready on the shelf means you can pop the keyswitch, upload the archived .RSS file via RSLogix 500, and have the line running again before the morning shift starts.

• Automated Material Handling: Conveyor Sorting & Palletizers – Executes complex shift-register logic and interfaces directly with barcode scanners over ASCII.
• Municipal Wastewater Plants: Pumping Station Automation – Drives local pump sequencing loops while sending remote telemetry back to SCADA over RS-232 radio modems.
• OEM Industrial Machinery: Custom Packaging & Motion Cells – Manages high-density discrete and analog I/O racks across multi-slot 1746 backplanes.

Field Case Study: A textile dye house faced a total shutdown when an electrical storm took out the main processor on their primary 13-slot SLC rack. Upgrading to a modern ControlLogix rack meant rewiring 120 field points and spending $60,000 they didn’t have. Pulling a pre-tested 1747-L532 processor from surplus inventory, the lead electrician matched the jumper configs, loaded the program backup, and restored full dye-cycle automation in under two hours.

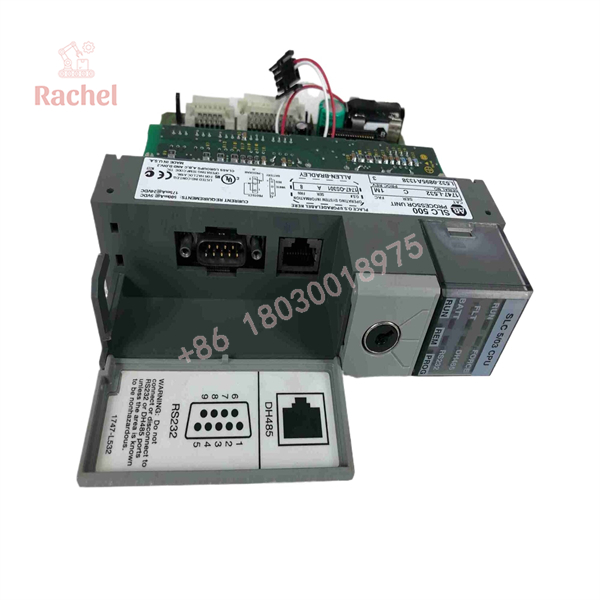

1747-L532

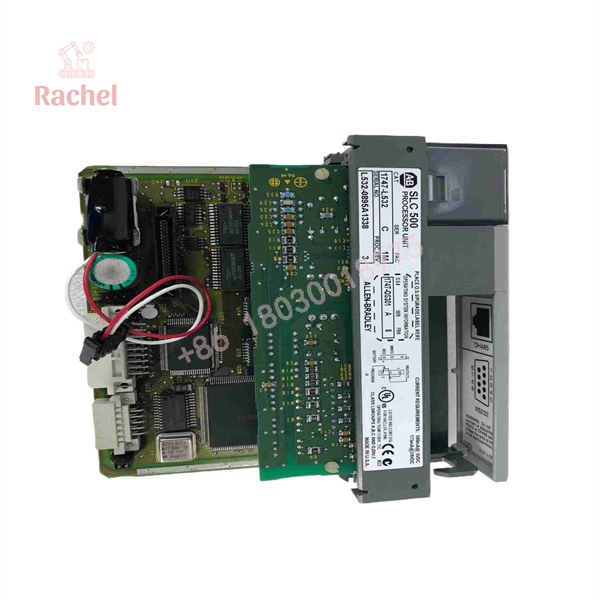

1747-L532

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual 1746 chassis racks. Every Allen-Bradley 1747-L532 CPU undergoes a rigorous 5-step hardware QA protocol before shipping:

1. Inbound Physical & Keyswitch Inspection: Full teardown check verifying housing latches, front key-lock operation, backplane edge pins, and internal capacitor health.
2. Chassis Power-On Self-Test: Insertion into Slot 0 of a 1746-A10 rack to confirm CPU boot sequencing, hardware handshakes, and status LED checks.
3. Dual-Port Comm Validation: Active online communication tests across both the RJ45 DH-485 port and the 9-pin RS-232 port using RSLogix 500.
4. Memory Retention & Battery Check: Installing a fresh 1747-BA battery, loading a test ladder file, and pulling main power for 24 hours to guarantee zero memory loss.
5. ESD Safe Packaging: Cleaning of contacts followed by heat-sealing in static-shielding ESD bags with fresh desiccant.

The Veteran’s Tech Trap Guide

• ⚠️ Check the Keyswitch Position: If the physical keyswitch is left in “RUN” position, you cannot download a new program over RSLogix! Switch it to “REM” (Remote) or “PROG” before trying to push your ladder logic to the processor.
• ❗ Watch Out for Dead Backup Batteries: If the “BATT” LED turns solid red, your lithium battery is drained. If the rack loses main 120V power, your program and data tables will vanish! Always replace the 1747-BA battery while the rack power is turned ON to keep RAM powered during the swap.
• ⚠️ Don’t Force the RS-232 Baud Rate: If someone reconfigured Channel 0 (RS-232) to 19.2k or 38.4k baud—or changed it to DH-485 protocol—you will lose comms over standard DF1. If locked out, short the ground and DH-485 reset jumper on the circuit board to restore factory default serial comm settings (1200 baud, DF1 driver).

Frequently Asked Questions

Q: Can I upgrade a 1747-L531 (8K memory) to a 1747-L532 (16K memory)?

A: Yes! The 1747-L532 is a direct drop-in replacement for the 1747-L531. It uses the exact same instruction set and port layouts, but gives you double the memory space for larger ladder programs and expanded data files.

Q: Is the 1747-L532 processor hot-swappable?

A: No. SLC 500 backplanes do not support insertion or removal under power. Always shut off the main rack power supply before removing or seating the CPU card in Slot 0.

Q: What cable do I need to connect my PC to the 1747-L532?

A: To program over the RS-232 port (Channel 0), use a standard 1747-CP3 null-modem serial cable (or a quality USB-to-RS232 adapter paired with a null-modem jumper). To program over the DH-485 port (Channel 1), you need a 1747-UIC USB-to-DH485 converter module.

Q: Does this unit come with a battery and keyswitch key?

A: Yes, all of our tested surplus and new-surplus 1747-L532 units ship complete with a fresh 1747-BA lithium battery installed and the physical 3-position mode key included.

Q: What warranty coverage do you offer?

A: Every 1747-L532 processor comes backed by our full 12-month replacement warranty. If the unit experiences any hardware or communication failure during normal operation within a year, we replace it immediately.
