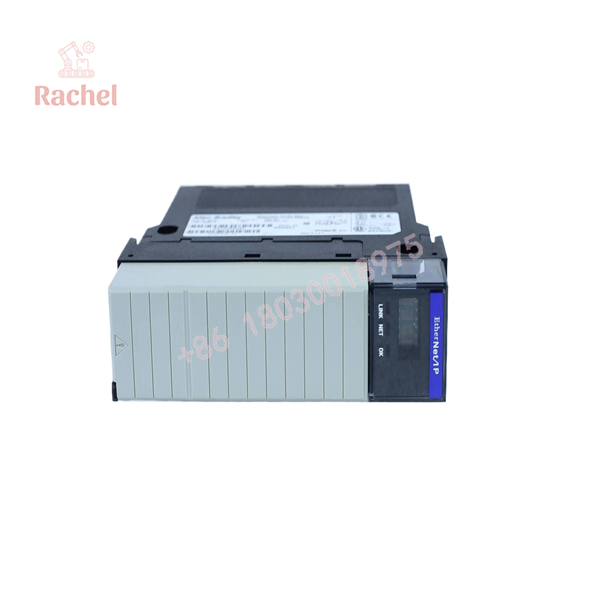

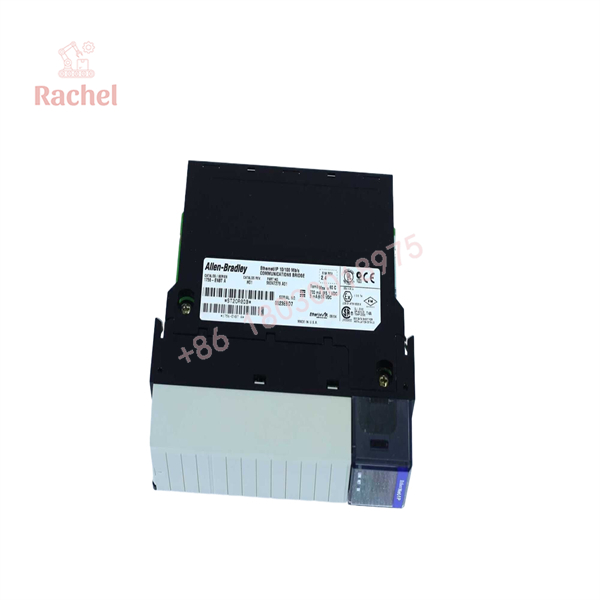

Allen-Bradley 1756-ENBT EtherNet/IP Module

Description

Product Introduction & Engineering Value

The 1756-ENBT provides a single 10/100 Mbps Ethernet connection for ControlLogix systems using EtherNet/IP. It uses a standard RJ45 interface, occupies one ControlLogix chassis slot, and supports up to 64 TCP connections and 128 CIP connections.

For plants maintaining legacy ControlLogix installations, the ENBT remains relevant as a direct installed-base spare. Rockwell Automation identifies the 1756-EN2T as its functional replacement, but an existing machine may still require the original ENBT because of project, firmware, or network architecture constraints.

Technical Specifications

Rockwell Automation specifies the ENBT as a chassis-based module that can be installed in any chassis slot.

Firmware Availability

Rockwell’s Product Compatibility and Download Center lists Series A firmware versions from 1.061 through 6.006 for the 1756-ENBT. Firmware 6.006 is also listed as an available download.

That matters when purchasing a replacement. A physical match does not automatically mean that every firmware revision is interchangeable within a particular legacy Logix application.

Field Application & The “Trench” Experience

Picture a packaging line running on an older ControlLogix platform. The controller is healthy, but the Ethernet communication module has started dropping connections to remote I/O and the plant’s supervisory system. The maintenance team has a short shutdown window.

The replacement decision comes down to more than catalog-number matching. The technician records the existing 1756-ENBT Series, firmware revision, IP configuration, and Studio 5000/RSLogix project settings before removing the module. The spare is installed, the Ethernet address is restored, and the team verifies controller, remote I/O, and MSG communication before releasing the line.

Specific application scenarios

• ControlLogix remote I/O communication for legacy packaging and material-handling machinery.
• Machine-level EtherNet/IP bridging between a ControlLogix chassis and older Ethernet-based HMIs, drives, or I/O adapters.
• Legacy process-control skids where the existing application was commissioned around the ENBT and maintaining the original hardware simplifies emergency recovery.
• Plant network segmentation where individual ControlLogix chassis communicate through dedicated EtherNet/IP interfaces.

1756-ENBT

1756-ENBT

Transparency SOP: QA & Testing

For New Surplus or Refurbished 1756-ENBT inventory, a practical inspection protocol should include:

1 — Identity check
Verify the Allen-Bradley catalog number, Series designation, product label, serial information, and physical markings.

2 — Physical inspection
Examine the RJ45 connector, backplane connector, housing, front display, locking mechanism, and PCB enclosure for damage or contamination.

3 — Power-up verification
Install the module in a compatible ControlLogix chassis and confirm normal startup indications.

4 — Ethernet communication test
Connect the module to a controlled EtherNet/IP test network and verify network communication.

5 — Configuration verification
Confirm module identification and Ethernet configuration using the appropriate Rockwell Automation engineering software.

6 — Final QA record
Document the tested catalog number, series, firmware revision, and test status before shipment.

Rockwell Automation lists a one-year standard warranty for the 1756-ENBT. For aftermarket New Surplus or Refurbished stock, the supplier’s own warranty should be stated separately rather than represented as Rockwell’s warranty.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Assuming “ENBT” means any EN2T will be a drop-in replacement.
Rockwell calls the 1756-EN2T a functional replacement, not simply an identical hardware revision. The EN2T has higher connection capacity and different electrical characteristics. The existing Logix project and application should be reviewed before migration.

⚠️ Trap #2 — Ignoring firmware revision.
The ENBT has multiple firmware releases, including 6.006. Rockwell’s compatibility database should be checked against the controller and project revision before installing a replacement.

⚠️ Trap #3 — Blaming the ENBT for every Ethernet fault.
Check the Ethernet cable, switch port, IP address, subnet configuration, controller connection status, and network traffic before declaring the module defective.

PRO TIP: Photograph or document the original module’s catalog number, Series, firmware, IP address, and network configuration before removing it. On an emergency shutdown, those five pieces of information can eliminate a lot of guesswork.

Dynamic FAQ

Is the Allen-Bradley 1756-ENBT still manufactured?

No. Rockwell Automation lists the 1756-ENBT as discontinued, with a discontinuation date of December 31, 2021.

What replaced the 1756-ENBT?

Rockwell Automation identifies the 1756-EN2T as the functional replacement for the 1756-ENBT.

What Ethernet speed does the 1756-ENBT support?

The module supports 10/100 Mbps Ethernet through one copper RJ45 interface.

How many connections can the 1756-ENBT handle?

Rockwell specifies a maximum of 64 TCP connections and 128 CIP connections.

What firmware versions are available?

Rockwell’s current compatibility/download database lists Series A versions ranging from 1.061 through 6.006.

How do I verify New Surplus authenticity?

Verify the physical 1756-ENBT catalog label, Series, serial information, and module identity against Rockwell documentation. Rockwell’s product page also provides product registration and authenticity-related functions.

What warranty applies?

Rockwell Automation lists a one-year standard warranty for the 1756-ENBT. For New Surplus or Refurbished units supplied through an independent distributor, confirm the distributor’s specific warranty terms before purchase.
