Allen-Bradley 1756-IF8 ControlLogix 8 Channel Analog Input Module

Product Introduction

The Allen-Bradley 1756-IF8 is a ControlLogix 8-point analog input module designed to measure voltage and current signals from industrial field devices. It is commonly used with pressure transmitters, flow meters, temperature transmitters, level sensors, and other analog instrumentation connected to ControlLogix controllers.

In real installations, the 1756-IF8 provides a practical balance between channel density and wiring flexibility. It supports configurable voltage and current input ranges, but it does not provide individual channel isolation. Applications with separate field power sources or significant electrical noise may require an isolated version such as the 1756-IF8I.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The phone rings during a production shift.

“The pressure reading on the HMI is frozen, but the transmitter is showing normal.”

That statement sends technicians in several directions.

They check the transmitter. Good.

They check the loop power. Good.

Then they check the analog input channel.

Analog troubleshooting is rarely about the module alone. Signal type, scaling, shielding, grounding, and configuration all matter.

The 1756-IF8 is commonly found in these applications:

• Process Automation – Pressure and flow monitoring – The module reads 4-20mA transmitter signals for pumps, valves, and process loops.
• Water Treatment – Tank level measurement – Converts analog level sensor outputs into ControlLogix engineering values.
• Chemical Processing – Instrumentation monitoring – Handles voltage and current signals from industrial measurement devices.
• Power Generation – Auxiliary system monitoring – Collects analog feedback from temperature, pressure, and flow instruments.
• OEM Machinery – Machine condition monitoring – Provides multiple analog channels in compact ControlLogix panels.

Field Case

A packaging plant reported incorrect temperature values from several process heaters.

The maintenance team replaced one temperature transmitter.

The problem remained.

During troubleshooting, the engineer discovered the input channels were configured for voltage while the field devices were producing 4-20mA signals.

The 1756-IF8 was functioning correctly. The configuration was wrong.

After correcting the Studio 5000 channel setup and scaling values, the readings returned to normal.

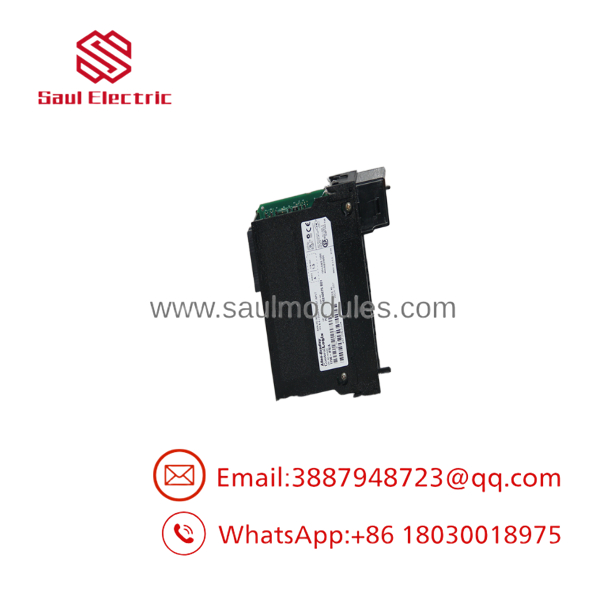

1756-IF8

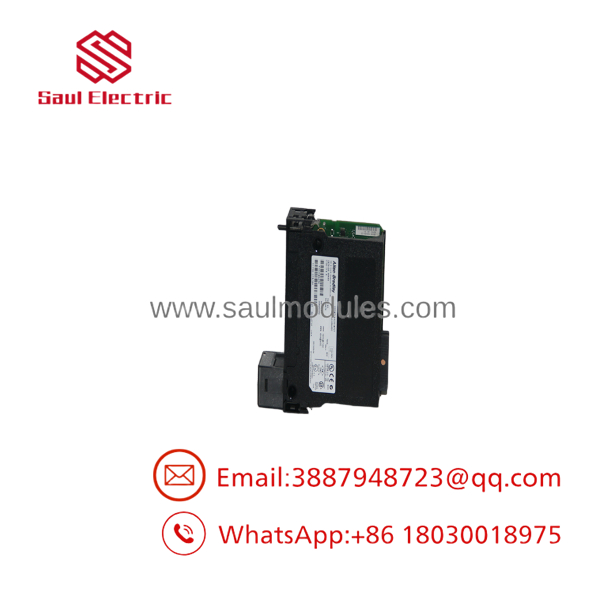

1756-IF8

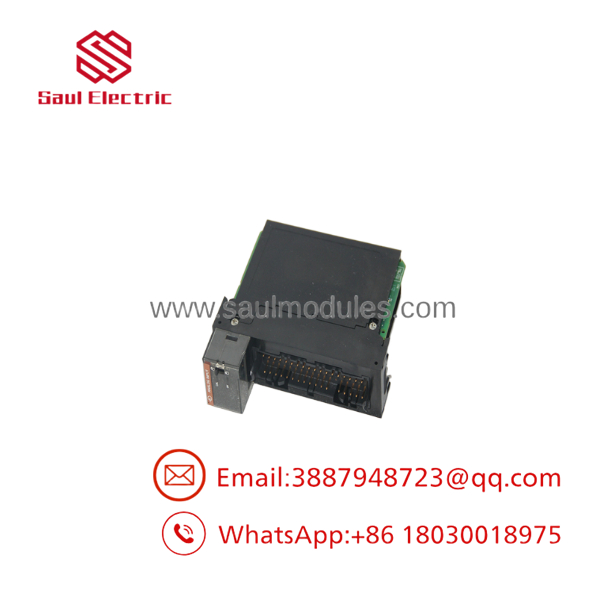

1756-IF8

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Allen-Bradley ControlLogix racks.

• Inbound Inspection
  • Verify Allen-Bradley label, catalog number, series, and hardware revision.
  • Inspect the 36-pin terminal connection and chassis contacts.
  • Check for corrosion, damaged pins, or unauthorized repairs.
• Live Rack Testing
  • Install module into a ControlLogix chassis.
  • Verify recognition through Studio 5000 Logix Designer.
  • Configure voltage and current input channels.
  • Apply calibrated test signals to all channels.
• Electrical Parameter Checks
  • Verify input scaling response.
  • Test current and voltage measurement accuracy.
  • Check channel status diagnostics.
• Firmware Verification
  • Record exact firmware revision.
  • Confirm compatibility with project hardware configuration.
  • Verify electronic keying information.
• Final QC & Anti-static Packaging
  • Complete analog channel verification.
  • Protect terminal block and backplane connector.
  • Package using anti-static materials.

The Veteran’s Tech Trap Guide

⚠️ Do not assume every analog signal is 4-20mA. The 1756-IF8 supports voltage and current, but the channel configuration must match the field device.

❗ Check scaling before replacing hardware. A transmitter can be healthy while the PLC displays incorrect engineering units because of incorrect scaling values.

⚠️ Do not ignore shield grounding. Analog signals are sensitive. Poor shielding practices often create unstable readings that look like module failures.

⚠️ Remember that channels are not individually isolated. If field devices use separate power supplies or have ground potential differences, evaluate whether an isolated module is required.

⚠️ Check unused channels. Floating analog inputs can produce unexpected values. Disable unused channels or follow the OEM wiring recommendations.

Take a screenshot of every channel configuration before replacing the card. Trust me. Analog troubleshooting gets much easier when you know exactly what the old module was doing.

Frequently Asked Questions (FAQ)

Q1. What is the Allen-Bradley 1756-IF8?

The 1756-IF8 is a ControlLogix 8-channel analog input module that accepts voltage and current signals from industrial field instruments.

Q2. What signals can the 1756-IF8 read?

The module supports common industrial analog ranges including:

• 0-5VDC
• 0-10VDC
• ±10VDC
• 0-20mA

Verify transmitter specifications before wiring.

Q3. What is the difference between 1756-IF8 and 1756-IF8I?

The main difference is isolation.

• 1756-IF8: Standard analog input module with input-to-backplane isolation.
• 1756-IF8I: Provides per-point isolation between analog input channels.

For noisy environments or separate field power sources, the isolated model may be a better fit.

Q4. Can the 1756-IF8 read temperature directly?

Usually no. The module reads voltage or current signals. Temperature transmitters normally require a transmitter that converts RTD, thermocouple, or temperature signals into a compatible analog output.

Q5. Can I replace a 1756-IF8 with a 1756-IF8I?

The replacement may be possible, but wiring, module configuration, terminal block arrangement, and Studio 5000 settings must be reviewed before installation.

Q6. Does the 1756-IF8 support hot swapping?

ControlLogix supports certain module replacement procedures, but the correct method depends on the application and system design. Follow site procedures before removing an energized analog module.

Q7. Why is a surplus 1756-IF8 cheaper than buying directly from Rockwell Automation?

Industrial surplus modules commonly come from excess inventory, plant spare stock, equipment upgrades, and system retirement projects. The important factor is documented inspection and functional testing.

Q8. What warranty is typically provided?

Qualified automation suppliers commonly provide a 12-month warranty on tested new surplus and refurbished 1756-IF8 modules. Rockwell Automation lists a standard one-year warranty for this product.
