Allen-Bradley 1756-L72S GuardLogix Safety Controller Processor

Description

Product Introduction & Engineering Value

The Allen Bradley 1756-L72S is a GuardLogix safety processor designed for applications requiring integrated standard and safety control within the ControlLogix platform. It combines a safety-certified controller engine with traditional Logix processing, allowing engineers to manage machine safety logic and process control from a common architecture.

For plants maintaining existing GuardLogix installations, this processor remains a practical replacement option when expanding systems or recovering from controller failures. Compatibility checks involving firmware revision, safety signature, and project version are essential before installation.

Technical Specifications

Field Application & The “Trench” Experience

A packaging facility running several high-speed robotic cells experienced an unexpected GuardLogix controller failure during scheduled production. The existing project contained validated safety routines, safety signatures, and machine interlocks that could not be recreated quickly from scratch. The maintenance team replaced the failed processor with a tested 1756-L72S, restored the approved project archive, verified the safety signature, and returned the cell to service without redesigning the safety architecture.

Common application scenarios include:

1. Robotic Cell Safety Control
Managing emergency stops, safety gates, light curtains, and safe motion coordination for automated assembly lines.

2. Press and Stamping Machine Protection
Executing safety-rated monitoring functions such as dual-channel inputs, safe shutdown sequences, and operator protection logic.

3. Process Skid Safety Interlocks
Handling burner management permissives, hazardous area shutdown sequences, and equipment protection routines.

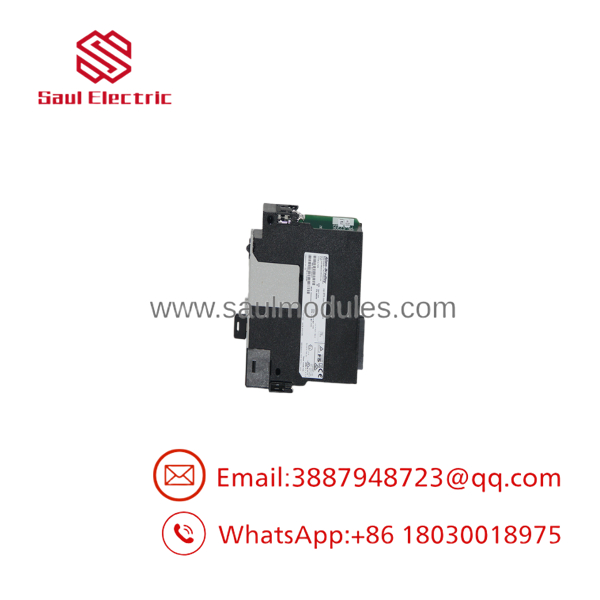

1756-L72S

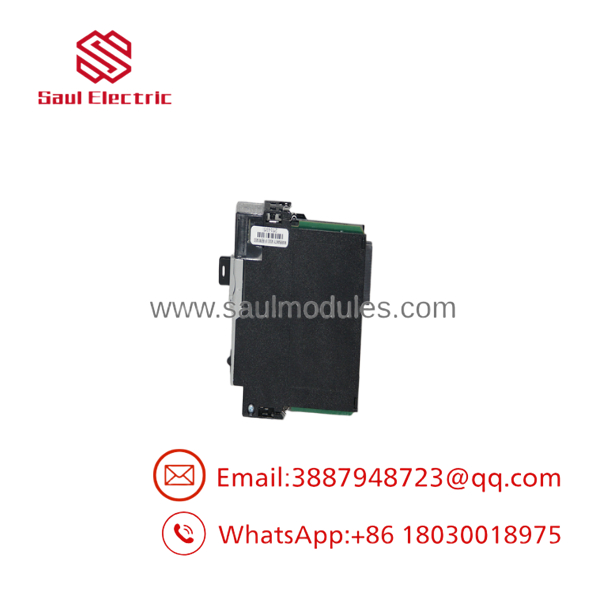

1756-L72S

Transparency SOP: QA & Testing

Every 1756-L72S unit should go through a controlled inspection process before being placed into service.

1. Visual and Hardware Inspection
   • Check terminal connections, housing condition, label accuracy, and signs of physical damage.
   • Verify catalog number matches the required GuardLogix processor model.
2. Controller Functional Testing
   • Power-up verification in a compatible ControlLogix chassis.
   • Diagnostic status check through Studio 5000.
   • Memory and processor health verification.
3. Configuration Validation
   • Confirm firmware compatibility.
   • Verify controller recognition and communication behavior.
   • Document test results before shipment.

The Veteran’s Tech Trap Guide

⚠️ Firmware mismatch is the first thing to check.
A 1756- running a different major firmware revision may not accept an existing project file. Always confirm the controller revision against the Studio 5000 project version.

⚠️ Safety signature matters.
For validated safety systems, replacing the processor is not only a hardware swap. The safety signature, safety lock status, and approved project archive must be managed correctly.

⚠️ Do not ignore battery condition.
Although application memory management varies by system configuration, an aged battery can create unexpected maintenance issues during controller replacement or storage.

PRO TIP: Before removing an operating GuardLogix processor, save the complete project archive, controller properties, firmware information, and safety documentation. The recovery process depends heavily on this information.

Dynamic FAQ

1. What is the Allen Bradley 1756- used for?

The 1756- is a GuardLogix safety controller processor used for integrated safety and standard automation control applications within ControlLogix systems.

2. Can the 1756- replace another GuardLogix processor?

Potentially, yes. Replacement depends on firmware compatibility, project requirements, safety memory configuration, and the existing GuardLogix platform design.

3. Does the 1756- include EtherNet/IP communication?

The processor supports ControlLogix communication architectures through separate communication modules such as EtherNet/IP interface modules installed in the chassis.

4. What should be checked before installing a surplus 1756-?

Verify:

• Firmware revision
• Controller compatibility with the Studio 5000 project
• Safety signature requirements
• Hardware condition
• Previous operating history if available

5. Is a New Surplus 1756- tested before shipment?

New Surplus units should be inspected and function-tested to confirm processor startup, diagnostics, and compatibility with the intended ControlLogix environment before installation.

6. What warranty support is available for a 1756- replacement?

Warranty terms depend on the supplier and inventory condition. Buyers should confirm coverage period, testing records, and return procedures before purchase.
