Product Introduction & Engineering Value
The Allen Bradley 1756-M08SEB is an 8-axis SERCOS motion interface module built for ControlLogix systems requiring coordinated servo control. It creates the communication link between the ControlLogix backplane and SERCOS-compatible drives through fiber-optic connections, allowing deterministic motion control in demanding machine applications.
For plants maintaining older high-performance motion equipment, this module remains an important replacement component. The biggest challenges are usually not hardware installation, but matching firmware, drive compatibility, motion configuration files, and existing RSLogix 5000 or Studio 5000 projects.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Allen Bradley / Rockwell Automation |
| Catalog Number | 1756-M08SEB |
| Platform | ControlLogix 1756 |
| Module Type | SERCOS Interface Motion Module |
| Number of Axes | Up to 8 servo axes |
| Communication Interface | SERCOS fiber-optic ring |
| Communication Rate | 4 Mbps / 8 Mbps |
| Control Modes | Position, velocity, torque |
| Compatible Drives | Kinetix SERCOS drives, Ultra3000 SERCOS drives, 1394 SERCOS systems |
| Installation Location | ControlLogix chassis slot |
| Configuration Software | RSLogix 5000 / Studio 5000 Logix Designer |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Field Application & The “Trench” Experience
A medical equipment manufacturer had a precision assembly machine that relied on multiple servo axes for synchronized positioning. The original 1756-M08SEB motion module failed during production, stopping the machine because the replacement controller configuration depended on existing SERCOS axis setup data.
The maintenance team installed a replacement module, verified the firmware revision, restored the motion configuration, and checked each axis individually before returning the system to automatic operation. The important step was not simply replacing the card. It was preserving the existing motion profile and drive communication settings.
Common application scenarios:
1. Precision Assembly Machines
Multi-axis servo positioning for electronic component placement, inspection stations, and automated fixtures.
2. Packaging Equipment Motion Control
Coordinated camming, registration control, and synchronized conveyor motion.
3. Material Processing Systems
Servo-driven tension control, web handling, and continuous motion applications.
- 1756-M08SEB

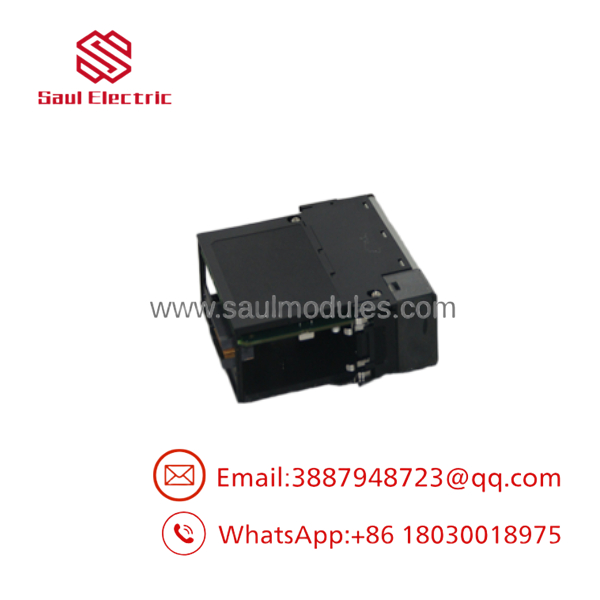

- 1756-M08SEB

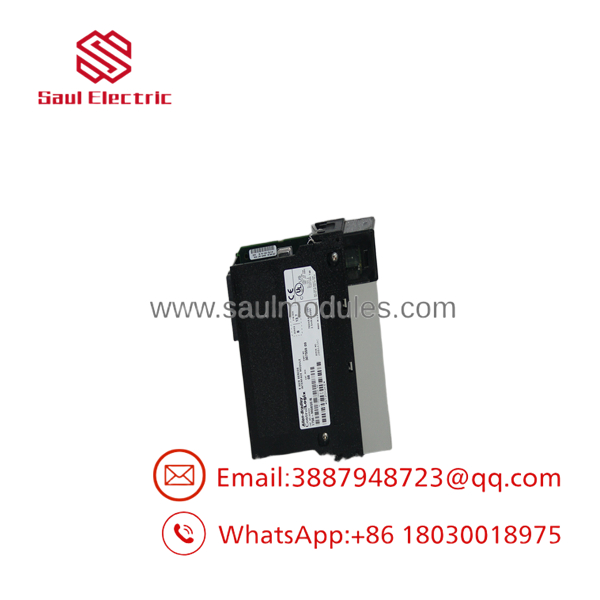

- 1756-M08SEB
Transparency SOP: QA & Testing
A proper 1756- evaluation process should include:
- Hardware Verification
- Confirm model number and series revision.
- Inspect backplane connector condition.
- Check fiber-optic SERCOS ports for contamination or damage.
- Power-Up Testing
- Install in a compatible ControlLogix chassis.
- Verify module status indicators.
- Confirm controller recognition.
- Motion Communication Check
- Verify SERCOS ring communication.
- Confirm module diagnostics.
- Validate axis discovery and configuration behavior.
A tested surplus module should include inspection records showing functional verification before shipment.
The Veteran’s Tech Trap Guide
⚠️ Do not mix firmware revisions blindly.
A motion module firmware mismatch can prevent communication with existing drives or create unexpected behavior during commissioning.
⚠️ Fiber-optic handling is critical.
SERCOS depends on clean optical communication. Scratched connectors, dirty transmitters, or poor cable routing can create intermittent axis faults that look like drive failures.
⚠️ Motion configuration is easy to overlook.
Replacing the hardware does not automatically restore axis parameters, tuning values, or motion groups.
PRO TIP: Before removing an operating 1756-, save the complete controller project, motion group configuration, axis parameters, and module revision information.
Dynamic FAQ
1. What is the Allen Bradley 1756- used for?
The 1756- is a ControlLogix SERCOS motion module used to connect a ControlLogix controller with compatible servo drives for coordinated multi-axis motion control.
2. How many servo axes can the 1756- control?
The module supports up to eight SERCOS servo axes.
3. What drives are compatible with the 1756-?
Compatibility includes Rockwell SERCOS-based drives such as Kinetix 2000, Kinetix 6000, Kinetix 7000, and Ultra3000 SERCOS systems depending on configuration and firmware requirements.
4. Can a 1756- replace another 1756 motion module?
Replacement depends on axis count requirements, firmware compatibility, SERCOS ring configuration, and the existing Logix project.
5. What should be checked before installing a surplus 1756-?
Verify:
- Series revision
- Firmware compatibility
- SERCOS drive compatibility
- Fiber-optic cable condition
- Existing motion project backup
6. Is a New Surplus 1756- tested before shipment?
A reliable supplier should inspect the module condition, verify startup operation, check diagnostics, and document functional testing before delivery.
