Allen Bradley 1756-OB16D ControlLogix 16 Point DC Output Module

Description

Product Introduction & Engineering Value

The Allen Bradley 1756-OB16D is a ControlLogix discrete output module designed for applications where standard ON/OFF control is not enough. It adds diagnostic capability to 16 DC output channels, allowing the controller to monitor output conditions and detect wiring or device-related problems.

In maintenance environments, this module is often found in systems controlling valves, solenoids, contactors, and machine actuators. Replacement work requires more than matching the catalog number. Engineers must confirm output wiring, external power arrangement, module configuration, and the diagnostic behavior expected by the application.

Technical Specifications

Field Application & The “Trench” Experience

A pharmaceutical packaging line experienced intermittent stoppages caused by failed actuator feedback cycles. The maintenance team initially suspected the pneumatic valves, but diagnostics showed the issue was related to an aging output module controlling several 24V DC solenoids.

The failed 1756-OB16D was replaced during a scheduled maintenance window. After installation, technicians verified module status, checked diagnostic feedback, and confirmed each solenoid output under manual control before releasing the machine back to production.

The important takeaway: diagnostic output modules can save troubleshooting time because they provide additional information beyond a simple energized/de-energized state.

Common application scenarios:

1. Automated Packaging Equipment
Control of pneumatic valves, clamps, indexing mechanisms, and reject stations.

2. Machine Tool Auxiliary Systems
Managing coolant valves, lubrication solenoids, and machine interlock devices.

3. Material Handling Systems
Driving conveyor actuators, diverters, and sorting mechanisms with fault monitoring.

1756-OB16D

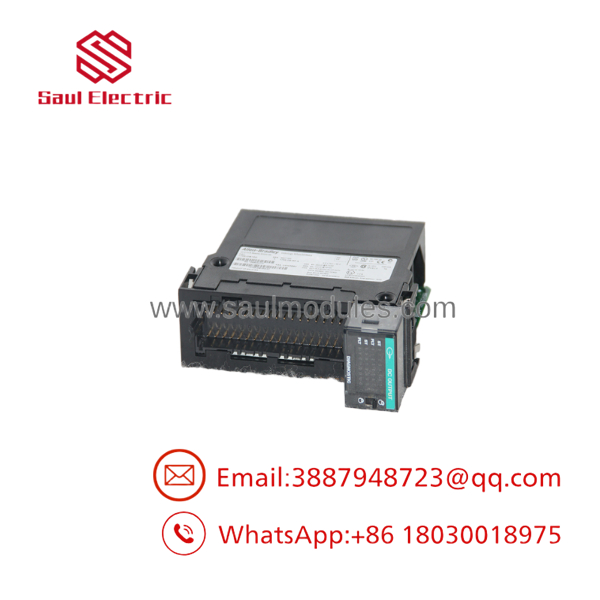

1756-OB16D

Transparency SOP: QA & Testing

A 1756-OB16D evaluation process should include:

Step 1 — Hardware Inspection

• Verify catalog number and label information.
• Inspect the front connector interface and chassis contacts.
• Check for physical damage, corrosion, or repair marks.

Step 2 — Functional Verification

• Install in a compatible ControlLogix chassis.
• Confirm module recognition.
• Check status indicators and diagnostic reporting.

Step 3 — Output Testing

• Verify 24V DC output response.
• Confirm channel operation.
• Test diagnostic feedback functions where applicable.

Testing records should be maintained for New Surplus and refurbished inventory to provide traceability before deployment.

The Veteran’s Tech Trap Guide

⚠️ Do not treat a diagnostic output module like a standard output card.
The 1756- provides diagnostic information that may be used by the control program. Replacing it with a standard output module can remove expected fault monitoring.

⚠️ Check the field load before blaming the module.
Solenoid coils, contactors, and inductive devices can create electrical stress. A repeated output failure usually points back to the connected device or suppression design.

⚠️ Verify the removable terminal block.
The module uses a 36-pin RTB interface. Reusing the wrong terminal block can create wiring errors during emergency replacements.

PRO TIP: Capture the existing module properties in Studio 5000 before replacement. Record revision, configuration settings, and diagnostic tags used by the PLC program.

Dynamic FAQ

1. What is the Allen Bradley 1756- used for?

The 1756- is a ControlLogix 16-point 24V DC diagnostic output module used to control field devices while providing output status monitoring.

2. What voltage does the 1756- support?

The module operates within a 19.2–30V DC output range and is commonly used in 24V DC industrial control systems.

3. How many outputs are available on the 1756-?

The module provides 16 digital DC output channels.

4. Can the 1756- replace a standard 1756-OB16 module?

Not always. Although both are DC output modules, the 1756- includes diagnostic functions that may be required by the application.

5. What should be checked before installing a replacement 1756-?

Verify:

• ControlLogix chassis compatibility
• Firmware and Studio 5000 configuration
• Terminal block type
• Output voltage requirements
• Connected field device current demand

6. Is a New Surplus 1756- tested before shipment?

A properly prepared New Surplus or refurbished unit should undergo visual inspection, power-up testing, module recognition checks, and output verification before being installed in production equipment.
