Allen Bradley 1756-OB16I 24VDC Isolated Digital Output Module

Description

Product Introduction & Engineering Value

When a control system has mixed field loads, electrical noise concerns, or devices requiring independent output separation, the Allen Bradley 1756-OB16I provides a practical solution. This ControlLogix module delivers 16 isolated DC output channels, allowing engineers to control individual devices without grouping all outputs onto a common electrical reference.

In real maintenance situations, the 1756-OB16I is commonly found in machine control panels, process skids, and automated equipment where output reliability and fault separation matter. Replacement work requires checking voltage class, field wiring, terminal block type, and the original Logix project configuration before startup.

Technical Specifications

Field Application & The “Trench” Experience

A semiconductor equipment manufacturer had an aging inspection station controlled by a ControlLogix rack. Several pneumatic actuators, indicator towers, and precision positioning devices were connected through a 1756-OB16I module. During operation, one output channel began dropping intermittently, creating unexpected machine stops.

The maintenance team replaced the module during a scheduled service window. After installation, technicians verified the channel assignments, checked the 24V DC supply quality, and tested each actuator individually. The machine returned to operation without changing the PLC application logic.

The lesson from the field: isolated output modules are often selected because the connected devices are electrically different. Replacing them with standard output cards can introduce problems that are difficult to diagnose later.

Common application scenarios:

1. Automated Assembly Equipment
Individual control of pneumatic cylinders, clamps, indexing units, and machine actuators.

2. Semiconductor and Electronics Manufacturing Tools
Isolation between sensitive equipment controls, solenoids, and auxiliary devices.

3. Process Control Panels
Independent switching of valves, alarms, relays, and field-mounted DC devices.

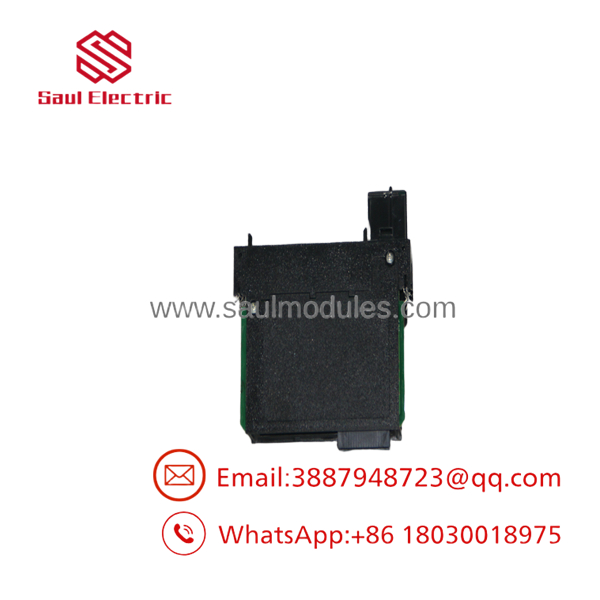

1756-OB16I

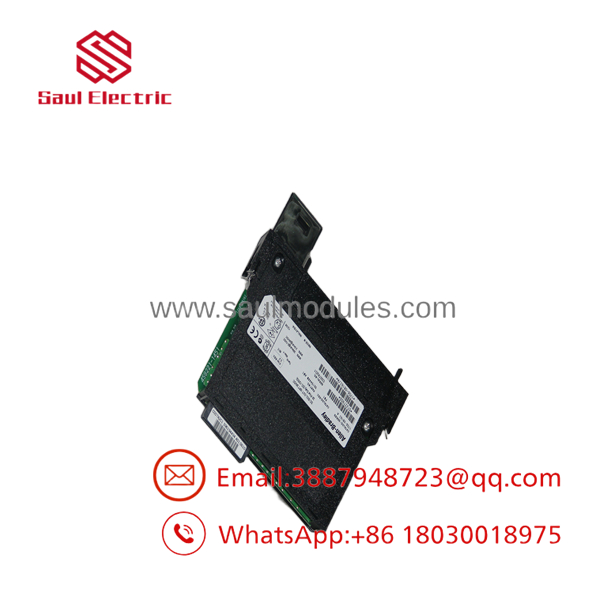

1756-OB16I

Transparency SOP: QA & Testing

A 1756- inspection process should include:

Hardware Review

• Confirm the exact catalog number and series.
• Inspect the front label, chassis connector, and terminal interface.
• Check for signs of overheating, contamination, or physical damage.

Functional Test

• Install into a compatible ControlLogix chassis.
• Verify module recognition through Studio 5000.
• Confirm status indicator operation.

Output Verification

• Test representative output channels.
• Confirm correct DC switching behavior.
• Verify module diagnostics and configuration response.

New Surplus and refurbished inventory should include inspection records showing the unit was checked before shipment.

The Veteran’s Tech Trap Guide

⚠️ Do not substitute it with a standard 1756-OB16 without checking the design.
The “I” suffix matters. The 1756- provides isolated outputs. Removing that isolation can change the electrical behavior of the panel.

⚠️ Check the load type before installation.
Solenoids, relay coils, and inductive devices can create transient conditions that damage output electronics. Review suppression components before replacing the module.

⚠️ Verify terminal block compatibility.
A replacement module without the correct RTB arrangement can delay emergency repairs or cause wiring mistakes.

PRO TIP: Save the module configuration from Studio 5000 before replacement. Include module revision, slot location, and output tag mapping in your maintenance records.

Dynamic FAQ

1. What is the Allen Bradley 1756- used for?

The 1756- is a ControlLogix isolated DC output module used for controlling 24V DC field devices while maintaining channel-to-channel electrical separation.

2. How many outputs are available on the 1756-?

The module provides 16 isolated digital output channels.

3. What voltage does the 1756- support?

The module operates from 10–30V DC and is commonly used in 12V and 24V DC industrial control applications.

4. Can the 1756- replace a 1756-OB16?

Only after confirming the electrical design. The provides isolated outputs, while a standard OB16 configuration may not provide the same channel separation.

5. What should be checked before purchasing a replacement 1756-?

Verify:

• Exact catalog number
• Series revision
• Output voltage requirements
• Terminal block compatibility
• Studio 5000 project configuration
• Existing field wiring

6. Is a New Surplus 1756- tested before shipment?

A qualified supplier should perform visual inspection, power-up verification, module recognition testing, and output checks before shipping the unit for industrial use.
