Allen-Bradley 1764-LRP PLC Processor Module

Product Introduction & Engineering Value

A processor failure rarely gives much warning. One day the machine is running normally; the next, production is halted because the controller cannot boot or communicate with programming software. The 1764-LRP was designed to provide dependable processing power for MicroLogix 1500 systems while supporting multiple industrial serial protocols.

For facilities that continue to operate proven production equipment, replacing the processor with the correct catalog number is often the fastest recovery path. Existing I/O, wiring, and application logic can typically remain unchanged after the processor is installed and the original program is restored.

Technical Specifications

Technical specifications are based on Rockwell Automation product documentation.

Field Application & The “Trench” Experience

A plastics extrusion plant experienced repeated watchdog faults on a twenty-year-old production line. Initial troubleshooting pointed toward the power supply, but voltage measurements were stable. After connecting through the serial port, technicians found intermittent processor memory faults that appeared only after several hours of operation.

Replacing the processor with a tested 1764-LRP restored normal operation. Because the original application file had been archived, commissioning required only firmware verification, program download, and I/O validation. The entire production line returned to service before the next manufacturing shift.

Typical applications include:

1. Plastic extrusion line sequencing
2. Municipal water booster pump control panels
3. Stand-alone conveyor and palletizing systems

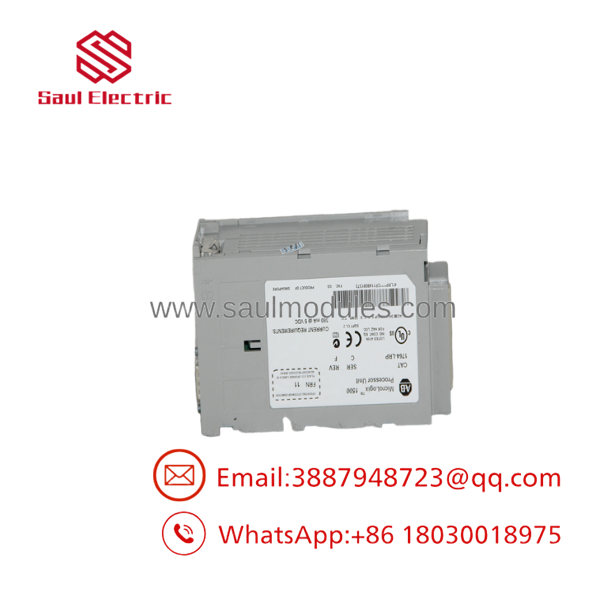

1764-LRP

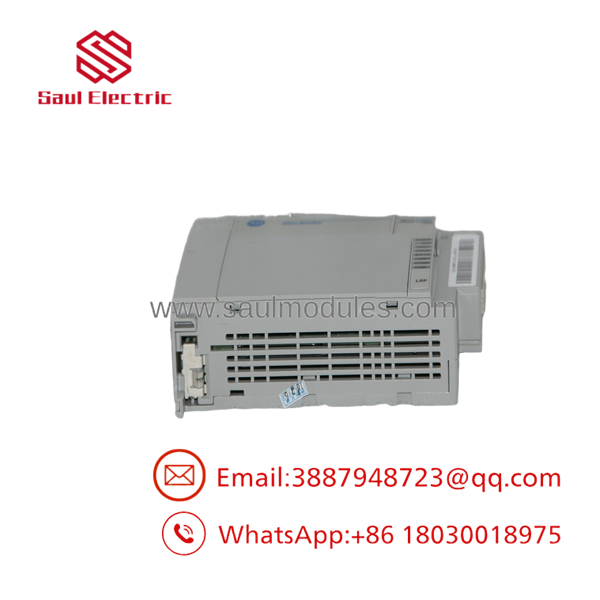

1764-LRP

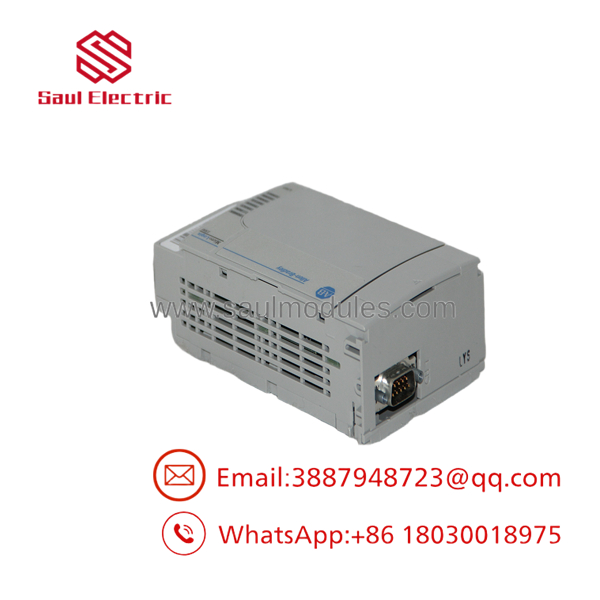

1764-LRP

Transparency SOP: QA & Testing

Before shipment, each processor should complete a structured inspection procedure:

• ✔ Verify catalog number and product identification label.
• ✔ Inspect processor connector pins and enclosure for mechanical damage.
• ✔ Confirm successful power-up using a compatible MicroLogix 1500 base unit.
• ✔ Test serial communication through the isolated RS-232 interface.
• ✔ Validate processor memory operation and fault-free startup.
• ✔ Record inspection results before inventory release.

New Surplus units are inspected for unused physical condition, while refurbished units additionally undergo functional verification before shipment.

The Veteran’s Tech Trap Guide

⚠️ Firmware Matters

A replacement CPU may boot successfully but still create compatibility issues if the project file was created under a different firmware revision. Always verify firmware before downloading the application.

⚠️ Don’t Forget the Memory Backup

Many maintenance teams replace the processor only to discover the original application was never archived. Before removing a functioning controller, create and verify a complete RSLogix 500 backup whenever possible.

PRO TIP: Inspect the base unit connector carefully. Bent connector pins or contamination on the processor interface can produce intermittent faults that resemble a failed CPU.

Dynamic FAQ

Q1. What is the primary function of the 1764-LRP?

The 1764-LRP serves as the CPU for MicroLogix 1500 controllers, executing ladder logic, processing I/O, and managing serial communications.

Q2. Which communication protocols are supported?

The processor supports DF1, DH-485, Modbus, and ASCII communication through its serial interface.

Q3. Is the 1764-LRP still manufactured?

No. Rockwell Automation officially discontinued the 1764-LRP in May 2017. Most available inventory today consists of New Surplus or professionally refurbished units.

Q4. Can I replace a failed processor without changing my PLC program?

In most cases, yes. If the replacement processor has compatible firmware and the original RSLogix 500 project is available, the existing application can typically be restored without modifying the machine logic.

Q5. How do you verify New Surplus authenticity?

Each unit should undergo model verification, visual inspection, communication testing, and processor startup validation. Original labels, catalog numbers, and serial identification are also checked before shipment.

Q6. Is a warranty available?

Warranty terms vary by supplier. Professionally tested New Surplus and refurbished processors are commonly supplied with a limited warranty and documented functional testing results prior to delivery.
