Product Introduction & Engineering Value
I’ve seen many facilities postpone PLC upgrades because the existing machine simply keeps producing quality parts. The MicroLogix 1400 platform is one of those controllers that often remains in service long after newer platforms are introduced because its programming environment is familiar and replacement parts are readily supported.
The 1766-L32BXBA is particularly useful when an application requires both discrete and analog control without adding separate analog expansion modules. Integrated Ethernet communications also simplify SCADA, HMI, and remote maintenance connections while preserving compatibility with existing RSLogix 500 projects.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Catalog Number | 1766-L32BXBA |
| Controller Family | MicroLogix 1400 |
| Power Supply | 24V DC |
| User Memory | 20 KB |
| Digital Inputs | 20 (12 high-speed DC + 8 standard DC) |
| Digital Outputs | 12 (6 relay, 3 high-speed DC, 3 standard DC FET) |
| Analog Inputs | 4 integrated voltage inputs (12-bit) |
| Analog Outputs | 2 integrated voltage outputs (12-bit) |
| Ethernet | Embedded isolated EtherNet/IP port |
| Serial Communications | DF1, DH-485, Modbus RTU, ASCII, DNP3 |
| Ethernet Protocols | EtherNet/IP Messaging, Modbus TCP/IP, DNP3 over IP |
| Expansion Capacity | Up to 7 Bulletin 1762 expansion I/O modules |
| Programming Software | RSLogix 500 |
| Controller Status | Active Mature |
| Country of Origin | Singapore (manufacturing location may vary) |
Field Application & The “Trench” Experience
A municipal water booster station experienced intermittent failures in its aging PLC after repeated lightning-induced power disturbances. The existing control panel monitored four pressure transmitters while controlling multiple pump contactors and alarm outputs. Replacing the controller with another 1766-L32BXBA allowed the maintenance team to restore operation without redesigning the panel or installing separate analog modules.
After downloading the archived RSLogix 500 program and verifying Ethernet addressing, the station resumed automatic pressure regulation within a single maintenance window.
Typical applications include:
- Boiler Feedwater Pressure Control using integrated analog voltage inputs.
- Water Treatment Chemical Dosing Systems with Ethernet-based SCADA monitoring.
- Automated Packaging Cells requiring high-speed counting and mixed relay/DC outputs.

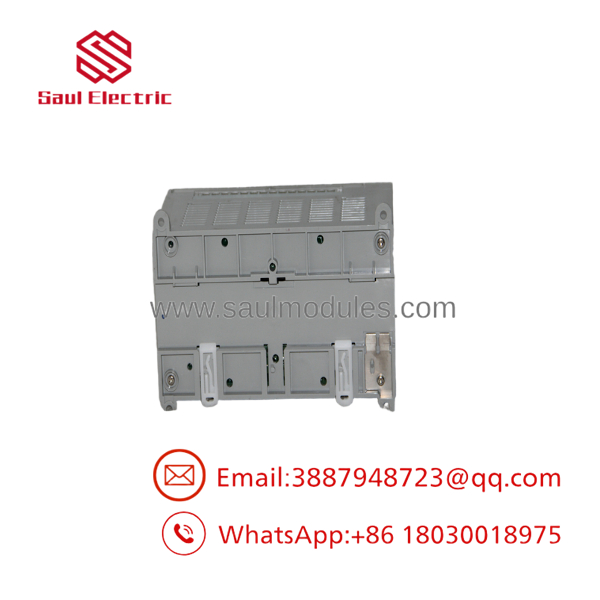

- 1766-L32BXBA

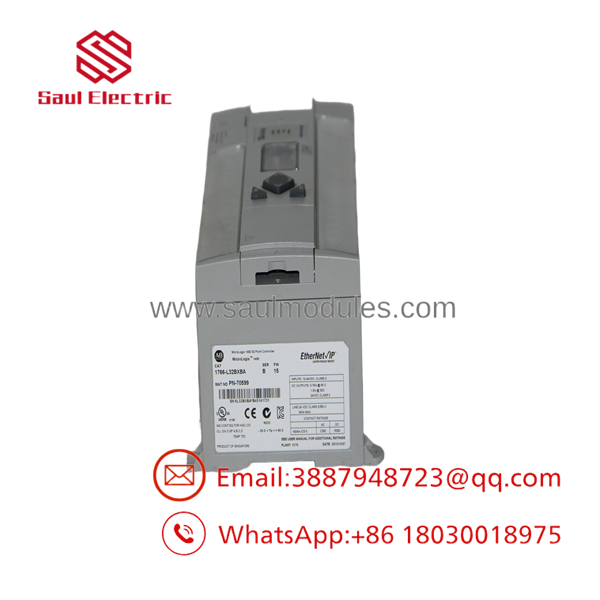

- 1766-L32BXBA

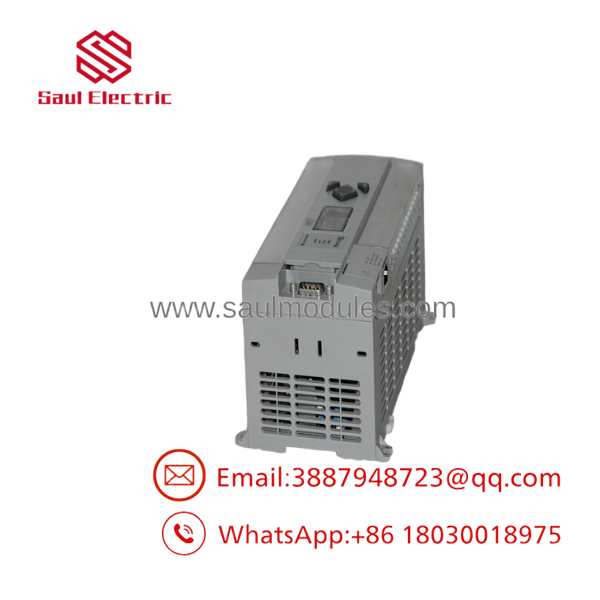

- 1766-L32BXBA
Transparency SOP: QA & Testing
Every controller undergoes a documented inspection before shipment.
- Verify catalog number, revision, and serial label.
- Inspect terminals, Ethernet port, serial ports, keypad, and LCD display.
- Install the controller on a compatible test bench and confirm successful boot-up.
- Verify embedded digital inputs, relay outputs, transistor outputs, and analog I/O operation.
- Test Ethernet communication, serial communication, and memory retention.
- Record all functional test results before the controller is approved for inventory.
New Surplus inventory is inspected for original unused condition, while refurbished controllers additionally complete functional burn-in and communication verification.
The Veteran’s Tech Trap Guide
⚠️ Don’t Assume the IP Address Is Default
Many replacement calls end with the controller being declared “dead” when the actual issue is an unknown static IP address left from the previous installation.
⚠️ Verify Relay vs. Transistor Wiring
The 1766- contains both relay outputs and DC transistor outputs. Connecting field wiring without checking the output type can damage connected equipment or produce unexpected operation.
⚠️ PRO TIP: Archive the Entire Project
Back up not only the RSLogix 500 program but also Ethernet settings, analog scaling, PID parameters, and recipe data. Those values are often more difficult to reconstruct than the ladder logic itself.
Dynamic FAQ
Q1. What distinguishes the 1766- from other MicroLogix 1400 controllers?
The 1766- combines 20 digital inputs, 12 digital outputs, four integrated analog inputs, two analog outputs, and an embedded Ethernet port in a single 24V DC-powered controller.
Q2. Does this controller support EtherNet/IP?
Yes. It includes an isolated Ethernet interface supporting EtherNet/IP messaging, Modbus TCP/IP, and DNP3 over IP.
Q3. Can additional I/O be added?
Yes. The controller supports expansion with up to seven Bulletin 1762 expansion I/O modules.
Q4. Is the 1766- suitable for analog process control?
Yes. Its integrated 12-bit analog inputs and outputs make it appropriate for applications involving pressure, level, flow, and other voltage-based analog signals.
Q5. How do you verify New Surplus authenticity?
Each unit is inspected for original manufacturer labeling, physical condition, communication functionality, I/O performance, and successful power-up. Test records are retained before shipment.
Q6. Is a warranty available?
Yes. Warranty terms depend on inventory condition and supplier policy. Professionally tested New Surplus and refurbished units are typically supplied with a limited warranty and documented functional test results.
