Allen-Bradley 1769-IF4X Analog Input Module

Description

Product Introduction & Engineering Value

Analog input problems rarely announce themselves with an obvious hardware fault. Operators usually notice unstable pressure readings, drifting flow measurements, or intermittent level values long before anyone suspects the I/O module. When field devices have already been verified, the analog input module becomes the next logical point of investigation.

The 1769-IF4X is intended for applications that require accurate acquisition of standard industrial analog signals such as 0–20 mA, 4–20 mA, 0–10 VDC, and ±10 VDC. Installed in a CompactLogix or Compact I/O system, it provides the interface between process instrumentation and the controller while maintaining electrical isolation from the backplane.

Technical Specifications

*Verify the complete catalog number before purchase because similar part numbers exist within the 1769 analog module family.

Field Application & The “Trench” Experience

During a refinery turnaround, maintenance technicians replaced several pressure transmitters on a catalyst circulation skid. Even after calibrating every instrument, one process value continued drifting several percent above the reference gauge.

The problem was eventually traced to an aging analog input module. After installing a tested replacement and downloading the original channel configuration, the pressure values immediately aligned with the calibrated transmitters. No PLC logic changes were required because the engineering scaling already matched the original hardware.

Typical applications include:

• Catalytic Cracking Unit Pressure Monitoring
• Steam Boiler Feedwater Flow Measurement
• Chemical Batch Reactor Temperature Acquisition
• Water Treatment Plant Level Transmitter Integration

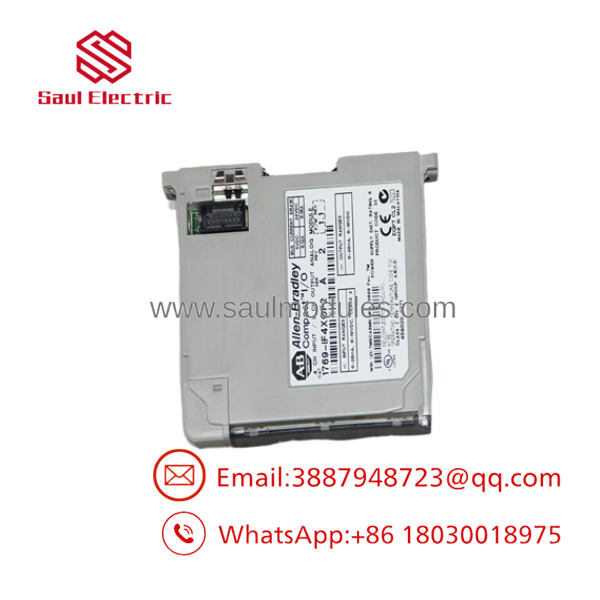

1769-IF4X

Transparency SOP: QA & Testing

Every analog module is evaluated before shipment using a documented inspection procedure.

1. Confirm the catalog number, hardware revision, and manufacturer identification.
2. Inspect the enclosure, connector pins, and removable terminal block.
3. Apply calibrated voltage and current signals to all input channels.
4. Verify channel accuracy, isolation performance, and diagnostic indicators.
5. Install the module in a CompactLogix test chassis to confirm normal communication.
6. Record inspection results and identify inventory as New Surplus or Refurbished.

The Veteran’s Tech Trap Guide

⚠️ Don’t Replace the Module Before Checking the Transmitter Loop

Many “failed analog modules” turn out to be broken 4–20 mA loops, reversed polarity, or failed instrument power supplies.

⚠️ Verify Channel Configuration

A channel configured for 0–10 V will not correctly interpret a 4–20 mA transmitter. Always compare the hardware configuration with the actual field device before commissioning.

PRO TIP: Keep copies of channel scaling values. Losing engineering unit configuration can take longer to recover than replacing the hardware itself, particularly on older CompactLogix systems.

Dynamic FAQ

Q1. What signals does the 1769-IF4X support?

The module accepts common industrial analog signals including ±10 V, 0–10 V, 0–5 V, 1–5 V, 0–20 mA, and 4–20 mA, depending on channel configuration.

Q2. Is the module compatible with CompactLogix controllers?

Yes. It is intended for use with the 1769 Compact I/O platform used by CompactLogix and Compact GuardLogix systems.

Q3. Can I replace the module without modifying the PLC program?

In most cases, yes. If the replacement module has the same catalog number and channel configuration, the existing application usually remains unchanged. However, verify channel settings before startup.

Q4. How is New Surplus inventory authenticated?

Each unit is checked for original manufacturer labeling, physical condition, connector integrity, communication with the controller, and functional analog input performance before shipment.

Q5. What is the most common installation mistake?

The most frequent issue is configuring the wrong input type or wiring a current transmitter into a channel configured for voltage measurement. This can produce inaccurate readings without indicating a hardware fault.

Q6. Should I order a 1769-IF4 or 1769-IF4X?

Before ordering, inspect the product label on the installed module and compare it with the project documentation. Rockwell Automation’s active catalog prominently lists the 1769-IF4 as the standard four-channel analog input module, and ordering the exact catalog number is the safest approach for maintaining compatibility.
